Specifications
Place of Origin :
China
Brand Name :
MARSHINE
Certification :
CE, ISO9001, CCC
MOQ :
1PC
Packaging Details :
Wooden Box, Wooden Pallet
Delivery Time :
15-30DAY
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
300PCS/Month
Model Number :
DLG12
Tread :
1820mm
Grade :
Light Duty
Types of Suspension Systems :
Multi-link Type
Shape :
Cable Trum Trailer
Axle Number :
2
Tire Number :
2
Self-dumping :
Not Self-dumping
ABS Anti-lock Braking System :
No ABS Anti-lock Braking System
Material :
Iron
Application :
Power Construction
Advantage :
Higher Efficiency
Usage :
Multifunctional
Color :
Customized
Feature :
High Performance
Number of Tires :
Two
Wheelbase :
7000mm~8000mm
Max Drum Mass :
3~15t
Max Drum Diameter :
2400~4200mm
Max Drum Width :
1300~2300mm
Transport Package :
Industrial Packing
Specification :
Maximum Pulling Speed(km/h) 27/40 5 1/256 Numb
Origin :
China
HS Code :
8716399000
After-sales Service :
1 Year
Warranty :
1 Year
Type :
Reel Carrier Trailer
Load Capacity :
8T
Wheel Base :
7000-8000mm
Description

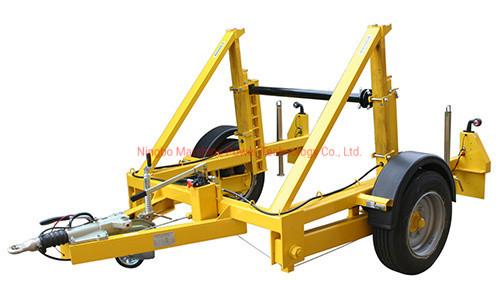

Steel Wire Drum Trailer Cable Drum Trailer Self Loading Cable Wire Trailer

Features:
1. Adjustable Reel Supports: Cable reel trailers often feature adjustable reel supports or cradles that can accommodate different sizes of cable reels.
2. Braking System: Many cable reel trailers are equipped with braking systems to ensure safe towing and stability, especially when loading or unloading heavy reels.
3. Tensioning Mechanism: Some trailers may include a tensioning mechanism to control the payout of cable from the reel during deployment, preventing tangles and snags.
4. Storage: Certain models may have additional storage compartments for tools, accessories, or spare cables.
5. Maneuverability: Cable reel trailers are designed for easy maneuverability, allowing operators to navigate tight spaces and rough terrain with minimal effort.

General Specifications

Type

Max Dum Mass

Max Drum Dia

Max Drum Width

Spindle Shaft Dia

HLTCY-3

3T

2400mm

1300mm

60mm

HLTCY-5

5T

2800mm

1500mm

75mm

HLTCY-8

8T

3400mm

1700mm

90mm

HLTCY-10

10T

3600mm

1900mm

110mm

HLTCY-12

12T

3800mm

2100mm

120mm

HLTCY-15

15T

4200mm

2300mm

150mm

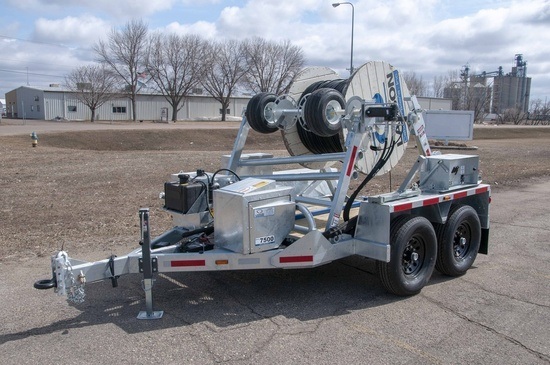

Steel Wire Drum Single Hydraulic Cable Reel Trailer Self Loading OEM

To support transmission work, Marshine Power offers tubular stringing rollers, hydraulic pullers, wire rope pulley blocks, lifting pulleys, wire rope grips, cable drum winding shafts and stands - all of which are OEM and professionally manufactured, conforming to ISO 9001:2008 standards, and sold to over 50 countries worldwide. For certain projects like emergency tower restoration and cross structures, we offer customization, as well as safety tools and accessories, with no minimum order requirement. We provide free assistance with technical issues or product inquiries. Please feel free to reach out to us. Thank you.


Steel Wire Drum Single Hydraulic Cable Reel Trailer Self Loading OEMSteel Wire Drum Single Hydraulic Cable Reel Trailer Self Loading OEM
Steel Wire Drum Single Hydraulic Cable Reel Trailer Self Loading OEMSteel Wire Drum Single Hydraulic Cable Reel Trailer Self Loading OEMSteel Wire Drum Single Hydraulic Cable Reel Trailer Self Loading OEMSteel Wire Drum Single Hydraulic Cable Reel Trailer Self Loading OEMSteel Wire Drum Single Hydraulic Cable Reel Trailer Self Loading OEMSteel Wire Drum Single Hydraulic Cable Reel Trailer Self Loading OEMSteel Wire Drum Single Hydraulic Cable Reel Trailer Self Loading OEMSteel Wire Drum Single Hydraulic Cable Reel Trailer Self Loading OEMSteel Wire Drum Single Hydraulic Cable Reel Trailer Self Loading OEM

1. Training and Services:
Marshine is a company specializing in the development, design, and manufacturing of construction electrical equipment and tools. We not only produce and sell products that meet international standards, OEM, and custom products, but also provide quality tracking and service monitoring.

2. What about the quality of your products?
Our products are strictly manufactured according to domestic and international standards, and each product undergoes testing before leaving the factory. If you would like to view our quality certifications and various test reports, please consult us.

3. Why choose us?
Because we can provide you with high-quality service, quality products, and reasonable prices. In addition, we can also offer customers smooth delivery and excellent solutions.

4. Customer Inquiry:
If there is an emergency, customers can also use online chat (Skype, WeChat) for faster and better communication. Any inquiries will be replied to within 12 working hours.

5. How to obtain samples?
We can provide free samples for buyers to test, but buyers need to pay for shipping. Existing samples take 2-3 days. If there is no stock, we will notify the delivery date.

6. What about packaging and shipping?
All goods will be securely packaged in plywood boxes for long-distance transportation. We support EXW, FOB, CIF, CFR terms.
Required documents such as packing lists, commercial invoices, bills of lading, air waybills, CO, Form E, Form F, etc., will be provided.

Note: If you cannot find the products you need, please feel free to contact us. We will provide the most favorable quotation as soon as possible after confirming your requirements.
