Specifications
Place of Origin :
China
Brand Name :
MARSHINE
Certification :
ISO 9001
MOQ :
1PC
Packaging Details :
Wooden Box, Wooden Pallet
Delivery Time :
15-30DAY
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2500sets/Day
Model Number :
GXK
Price :
usd,0.2-50,pcs
Shape :
U Shape
Function :
Connector
Weight(Kg) :
0.2~7.5kg
Rated Load Kn :
10~300kn
Product Name :
High Strength Shackle
Transport Package :
Wooden Box or Customized Required
Specification :
Aluminium, Alloy Steel
Origin :
China
HS Code :
4015190000
Gender :
Female
Pin :
2 Pins
Application :
Cable Joint
Terminal Material :
Special Iron Steel
Interface Type :
Hole Link
Description

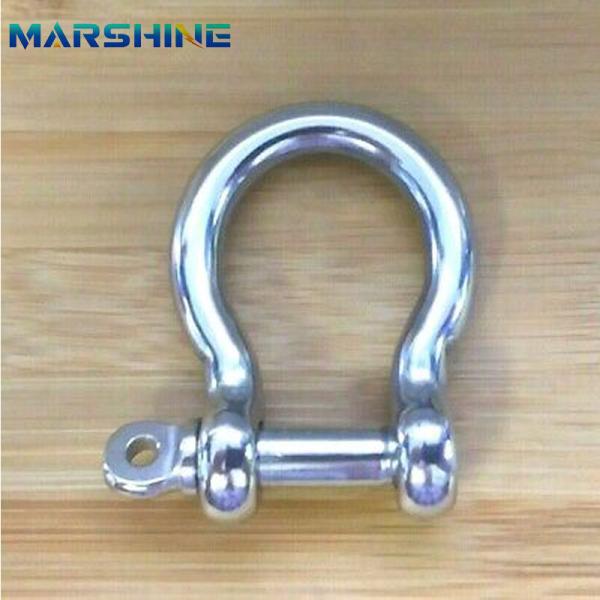

Safety Stringing Equipment for Connecting Link High Strength Shackle

Our High Strength Shackle are durable and of good quality. With strong tensile and torsional properties, it is durable and will not deform. In addition, we promise that all ex factory products will be delivered to customers only after strict quality control. At the same time, we also have good after-sales service. If there is any quality problem, you can ask us to return them.

tem Number Model Main Dimension (mm) Rated Load (kN) Weight(kg)
A B C D
17131 GXK-1 55 42 12 20 10 0.15
17132 GXK-2 67 58 16 24 20 0.29
17133 GXK-3 97 82 20 34 30 0.8
17133A GXK-3A 97 112 20 34 30 0.9
17134 GXK-5 107 89 22 38 50 1.12
17134A GXK-5A 107 131 22 38 50 1.29
17135 GXK-8 128 97 30 45 80 2.4
17136 GXK-10 141 114 34 48 100 3.56
17137 GXK-16 152.5 139 37 54 160 4.8
17138 GXK-20 164 140 39 60 200 5.17
17139 GXK-30 186 146 50 68 300 7.5

Usage:
1. In order to connect the pulling rope to the short sock joints installed on the conductor, they are designed to avoid the accumulation of torsional strain.
Note:
1. The model is Y-shaped swivel type, with a swivel angle of 6 degrees.
2. Crossing the bull wheel and turning block is not allowed.


Female Cable Joint U Shape Shackle Stainless Steel D Shackle For Stringing Equipment

To support transmission work, Marshine Power possesses tubular stringing rollers, hydraulic pullers, wire rope pulley blocks, lifting tackles, wire rope grips, cable reel winding stands, and brackets - all of which are OEM and professionally manufactured, compliant with ISO 9001:2008 standards, and distributed to over 50 countries worldwide. Certain projects such as emergency tower repairs and cross structures can be customized, along with safety tools and accessories, without requiring a minimum order quantity. We offer free assistance with technical inquiries or product requirements. Feel free to reach out to us. Thank you.
