Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
Specifications
Place of Origin :
China
Brand Name :
MARSHINE
Certification :
CE, ISO
MOQ :
1PC
Packaging Details :
Wooden Box, Wooden Pallet
Delivery Time :
15-30DAY
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 Sets Per Month
Model Number :
SJZ
Price :
US$500-US$2000
Condition :
New
Feature :
Fire/Flame Retardant
Application :
Power Construction
Material :
Steel
Product Name :
Cable Pulling Winch
Lift Speed :
10-80m/Min
Power Source :
Gasoline Power or Diesel Power
Motor :
4-7kw
Usage :
Cable Pulling Machine
Capacity :
1.6t, 3t, 5t
Transport Package :
Carton Box
Specification :
4-7kw
HS Code :
8467890000
Package Size :
120.00cm * 85.00cm * 95.00cm
Package Gross Weight :
165.000kg
Type :
Belt Drive Winch
Customized :
Customized
Shipping Cost :
about shipping cost and estimated delivery time.
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description

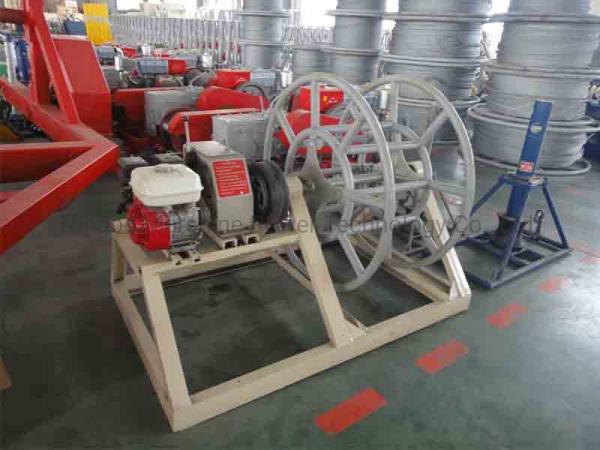

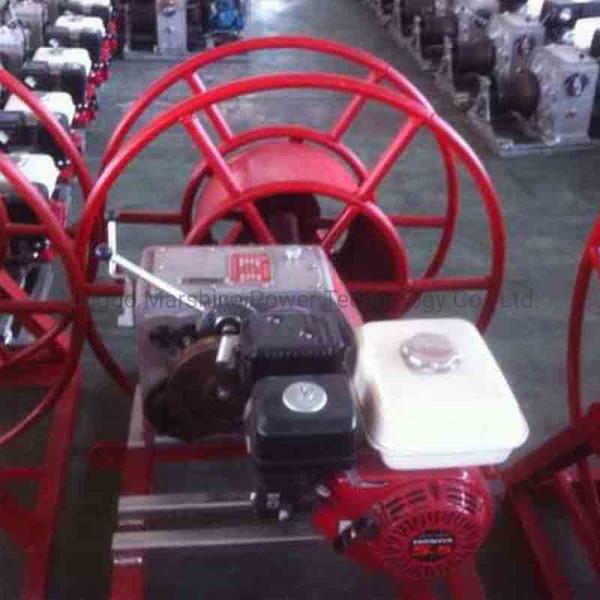

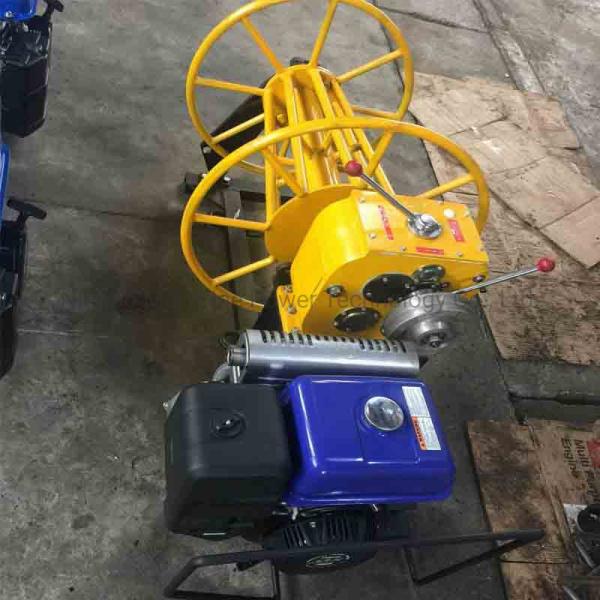

5 Ton 30 KN Belt Drive Recovery Wire Take-Up Machine

Product Description


This wire take up machine serves to recycle the old conducting wire or the overhead ground wire.

Uses:To withdraw the old conductors or erect the overhead earth wires.

Notes:The outer side of the durm is detachable.

Product Parameters

Main Specifications

Item Number 08151
08152
Model SJZ10B
SJZ10C
Engine Type Honda GX160 gasoline engine
Z170F diesel engine
Power (hp) 5.5
4
Rotational Speed (rpm) 3600
2600
Max. Take-up Force (kN) 13.2
10.9
Take-up Speed (m/min) 9.8~80
10.5~85.4
Reel Capacity (m) LGJ95 600
600
LGJ120 460
460
LGJ185 320
320
Weight (kg) 136
165
Overall Dimension (m) 1.2×0.85×0.95
1.2×0.85×0.95
Our Advantages

Marshine Power is dedicated to supporting Transmission projects with a comprehensive range of high-quality equipment. Our offerings include Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. These products are all OEM and manufactured to the highest standards, meeting ISO 9001:2008 certification. Trusted by customers in over 50 countries, our equipment ensures reliable and efficient operations.

We understand the unique demands of Transmission projects, which is why we offer customization options for items like emergency restoration towers and crossing structures. Additionally, our safety tools and accessories have no minimum order quantity requirements, providing flexibility for your specific needs.

Whether you require technical support or have specific product requirements, our team is here to assist you. Please don't hesitate to reach out to us for any inquiries or assistance. Thank you for considering Marshine Power as your partner for Transmission projects.

Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With MotorDetachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
Detachable 5 Ton Wire Cable Take Up Machine Winch Puller With MotorDetachable 5 Ton Wire Cable Take Up Machine Winch Puller With MotorDetachable 5 Ton Wire Cable Take Up Machine Winch Puller With MotorDetachable 5 Ton Wire Cable Take Up Machine Winch Puller With MotorDetachable 5 Ton Wire Cable Take Up Machine Winch Puller With MotorDetachable 5 Ton Wire Cable Take Up Machine Winch Puller With MotorDetachable 5 Ton Wire Cable Take Up Machine Winch Puller With MotorDetachable 5 Ton Wire Cable Take Up Machine Winch Puller With MotorDetachable 5 Ton Wire Cable Take Up Machine Winch Puller With Motor
FAQ


1. Training and services.
Marshine is a company specializing in the development, design and manufacture of electrical construction equipment and tools. We not only manufacture and sell international standard products, OEM and custom products, but also provide quality tracking and service monitoring.

2. How about the quality of your products?
Our products are manufactured in strict accordance with national and international standards, and each product is tested before delivery. If you would like to view our quality certification and various test reports, please consult us.

3. Why do you choose us?
Because we can provide you with excellent service, quality and reasonable price. In addition, we can also provide smooth delivery of goods, excellent customer solutions.

4. Customer inquiry.
If there is an emergency, customers can also use online contact methods (online Chat, Skype, WhatsApp, wechat) for faster and better communication. Any enquiry will be answered within 12 working hours.

5. How to obtain samples?
We can provide free samples to the buyer for testing, but the buyer needs to pay the freight. Existing samples take 2-3 days. If there is no stock, we will advise the delivery date.

6. How about packing and shipping?
All goods will be packed in plywood boxes for safe, long haul transport. Support EXW, FOB, CIF, CFR terms.
Required documents such as packing list, commercial invoice, bill of lading, air waybill, CO, Form E, Form F etc will be provided.

Note: If you do not find the product you need, please feel free to contact us. We will provide the best quotation as soon as we verify your requirements.
