Specifications
Place of Origin :
China
Brand Name :
MARSHINE
Certification :
CE , ISO
MOQ :
1PC
Packaging Details :
Wooden Box, Wooden Pallet
Delivery Time :
15-30DAY
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000 Set/ Month
Model Number :
JSD
Price :
usd, 500-1000, set
Condition :
New
Feature :
Insulation
Power Source :
Electric Engine
Weight :
203-220kg
Application :
Power Construction
Product Name :
Cable Pulling Machine
Speed(M/Min) :
6.5
Transport Package :
Packed with Wooden Case
Specification :
203kg ect.
HS Code :
8428330000
Type :
Tractor Winch
Description
Underground Cable Installation Equipment Electric Cable Pusher

This cable feeder is designed for stringing large-diameter power and communication cables. If core grinding is needed, it must be specified in the contract.

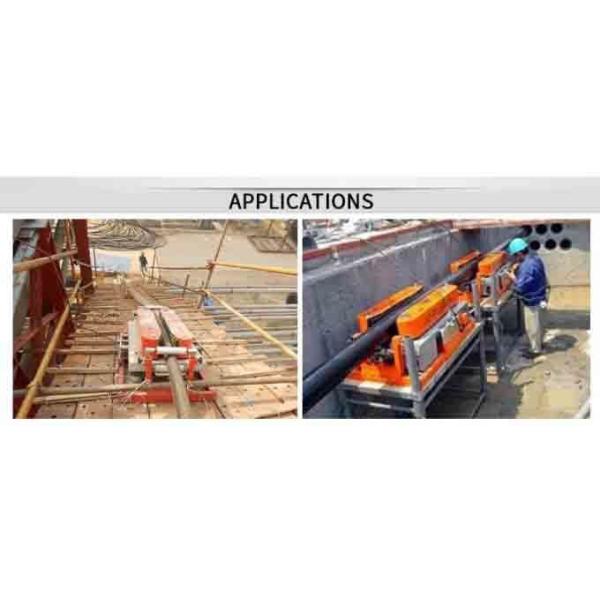

Applications: Suitable for stringing large-diameter electric power and communication cables.

Important Notes:
1. Please clearly state in the contract if a winch is required.
2. Each cable feeder comes with a cable reel and a sub-control box. The reel can hold up to 70 meters of cable.
3. A control box will be provided free of charge if you purchase more than 6 units.

Technical Parameters

Item Number 21102 21103B 21105
21106
Model DLSSJ5 DLSSJ5B SSJ5V
DLSSJ8A
Diameter of suitable cable(mm) 60-140 40-150 40-150 50-200
Pull Force(kN) 5 5 5
8
Speed(m/min) 6.5 6.5 6.5
6.5
Motor Power(kW) 1.5 2X0.55 1.5
2X0.75
Supply Voltage(V) AC380 AC380 AC380
AC380
Dimensions(mm) 948x470x542 900x617x452 1060x437x690
1000x657x464
Weight(kg) 203 190 148
220
Crawler Arrangement Updown Configuration crawler Right and left Configuration crawler V type configuration crawler Right and left Configuration crawler
Remark Can add auxiliary winch Can add auxiliary winch The press pulley removable
 Can add auxiliary winch


Underground Pulling Machine JSD Cable Installation Equipment
To support the Transmission work, Marshine Power has Hydraulic Cable Tensioner , Hydraulic Cable Puller, Cable Winch Puller, Cable Drum Trailer,Cable Conveyor, Conductor Pulley, Pulley Tackle all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls contact us. Thanks.
Underground Pulling Machine JSD Cable Installation Equipment
Underground Pulling Machine JSD Cable Installation Equipment
Underground Pulling Machine JSD Cable Installation Equipment
Underground Pulling Machine JSD Cable Installation Equipment
Underground Pulling Machine JSD Cable Installation Equipment
Underground Pulling Machine JSD Cable Installation Equipment
Underground Pulling Machine JSD Cable Installation Equipment
Underground Pulling Machine JSD Cable Installation Equipment
Underground Pulling Machine JSD Cable Installation Equipment
Underground Pulling Machine JSD Cable Installation Equipment
Underground Pulling Machine JSD Cable Installation Equipment

1.Training and services.
Marshine is a company specializing in the development, designand manufacture of electrical construction equipment and tools.
We not only produce but also sell international standard products,OEM and custom products,and provide quality tracking and service monitoring.

2. How about the quality of your products?
Our products are manufactured in strict accordance with domistic and international standards, and each product is tested before delivery. If you would like to view our quality certification and various test reports, please consult us.

3. Why do you choose us?
Because we can provide you with excellent service, high quality products and reasonable price. In addition, we can also provide smooth delivery of goods, excellent customer solutions.

4. Customer inquiry.
If there is an emergency, customers can also use ononline Chat methods (Skype, wechat) for faster and better communication. Any enquiry will be answered within 12 working hours.

5. How to obtain samples?
We can provide free samples to the buyer for testing, but the buyer needs to pay the freight. Existing samples take 2-3 days. If there is no stock, we will advise the delivery date.

6. How about packing and shipping?
All goods will be packed in plywood boxes for safe, long haul transport. Support EXW, FOB, CIF, CFR terms.
Required documents such as packing list, commercial invoice, bill of lading, air waybill, CO, Form E, Form F etc will be provided.

Note: If you do not find the product you need, please feel free to contact us. We will provide the best quotation as soon as we verify your requirements.
