16mm FRP Duct Rodder For Metal Frame 2.2mm Thickness 1.8 Density 300mm Wheel Diameter
16mm FRP Duct Rodder For Metal Frame 2.2mm Thickness 1.8 Density 300mm Wheel Diameter
16mm FRP Duct Rodder For Metal Frame 2.2mm Thickness 1.8 Density 300mm Wheel Diameter
16mm FRP Duct Rodder For Metal Frame 2.2mm Thickness 1.8 Density 300mm Wheel Diameter
16mm FRP Duct Rodder For Metal Frame 2.2mm Thickness 1.8 Density 300mm Wheel Diameter
16mm FRP Duct Rodder For Metal Frame 2.2mm Thickness 1.8 Density 300mm Wheel Diameter
16mm FRP Duct Rodder For Metal Frame 2.2mm Thickness 1.8 Density 300mm Wheel Diameter
16mm FRP Duct Rodder For Metal Frame 2.2mm Thickness 1.8 Density 300mm Wheel Diameter
16mm FRP Duct Rodder For Metal Frame 2.2mm Thickness 1.8 Density 300mm Wheel Diameter
16mm FRP Duct Rodder For Metal Frame 2.2mm Thickness 1.8 Density 300mm Wheel Diameter
16mm FRP Duct Rodder For Metal Frame 2.2mm Thickness 1.8 Density 300mm Wheel Diameter
16mm FRP Duct Rodder For Metal Frame 2.2mm Thickness 1.8 Density 300mm Wheel Diameter
Specifications
Place of Origin :
China
Brand Name :
MARSHINE
Certification :
CE, CCC, ISO
MOQ :
1PC
Packaging Details :
Wooden Box, Wooden Pallet
Delivery Time :
15-30DAY
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000sets/Day
Model Number :
CST-2
Price :
usd , 10-100 , set
Model NO. :
CST-2
Condition :
New
Feature :
Fire/Flame Retardant
Usege :
Electrice Power
Featrue :
High Strength
Rod Diameter (mm) :
16mm
Rod Length (M) :
300m~500m
Wheel Diameter(mm) :
300mm
Wall Thickness of Metal Frame :
2.2mm
Color :
Blue, Yellow, Red, White, Black, Orange etc
Drawing Head :
Copper
Density :
1.8
Breaking Tension :
100kg
Bending Diameter :
1300mm
Transport Package :
Carton or Wooden Case
Specification :
Fiberglass Yarn + Polymey Resin
Origin :
China
HS Code :
8467890000
Package Size :
230.00cm * 130.00cm * 30.00cm
Package Gross Weight :
10.000kg
Type :
Fiber Splicer
Customized :
Customized
Samples :
US$ 150/Piece
Shipping Cost :
about shipping cost and estimated delivery time.
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description

16mm Low Price FRP Duct Rodder

Product Description

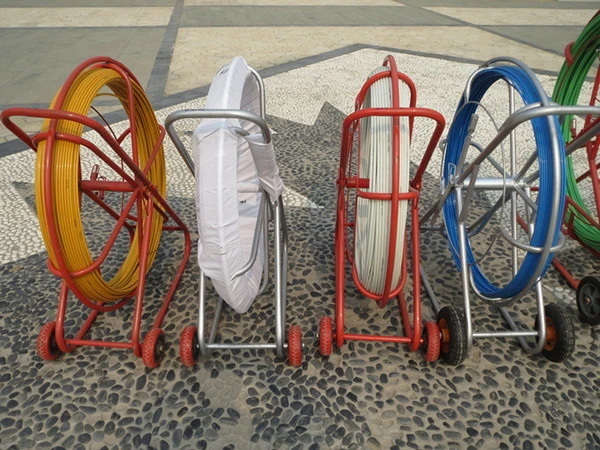

Fiberglass special size duct rodders or push pulling rodders and commonly called fiberglass duct rodder its nature passing through under ground ducts by ups, down negotiating the duct curvature thus very convenient to pull the cables , wires inside the duct , also it can be used to locate the duct block or damage portion identifications . it has high safety aspects to use underground applications because of its non conductivity of electricity, sets a major safety to site workers .

It has been built with rigid sturdy steel tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom .

The ducts rodders normally comes in various diameters from 4.5 mm to 18 mm as per ground applications. The 18mm duct rodder is a special size which is for large diameter tube and cable pole as the push-pull tools.

Detailed Data

Specification Rod Diameter (mm) 16mm
Rod Length (m) 30m-500m
Frame Spec.(mm) 1300x450x1330,1200x420x1220,1400x350x1350,

1400x400x1300, etc.
Wheel Diameter(mm) 300mm
Wall thickness of Metal Frame 2.2mm
Color Blue, yellow, red, white,black, orange etc

Material

 Rod Inner Extruded by fiber glass and high strength resin at high temperature
Rod Outer High Density polyethylene coating
Iron Frame Steel with high temperature sprayed plastic or Spray coating
Wheel Rubber
Brake Yes
Drawing head Copper
Physical Characters Density 1.8
Working temperature -40°C to +80°C
Breaking tension 100kg
Bending diameter 1300mm
Technology Pultrusion
Packaging Inside Plastic woven strip wrapped the frame
Outside Carton or pallets


Sinta portable fiberglass duct rodder has the following advantages:

1. strong non-conductive fiberglass rod construction
3. For longer conduit runs and underground duct
4. Rugged tubular steel reel with adjustable brake position.
5. Feed device allows rod to feed out or be wound back onto reel with easy push or pull of rod.
6. Yellow or white color for easy to visible.

16mm FRP Duct Rodder For Metal Frame 2.2mm Thickness 1.8 Density 300mm Wheel Diameter
