Specifications
Place of Origin :
China
Brand Name :
MARSHINE
Certification :
CE , ISO9001
MOQ :
1PC
Packaging Details :
Wooden Box, Wooden Pallet
Delivery Time :
15-30DAY
Payment Terms :
TT,LC,WESTERN UNION
Supply Ability :
200 CONTAINER/YEAR
Model Number :
MAR150-100
Price :
usd, 160-310, pcs
Acting Way :
Double Acting
Working Method :
Rotary
Adjusted Form :
Switching Type
Structure of the product :
Piston Type
Material of the product :
Alloy Steel
Tonnage (mm) :
150t
Stroke (mm) :
100mm
Cloased Height :
260mm
Extend Height :
360mm
Outer Diameter :
219mm
Dimension of Plunger :
125mm
Dimension of Oil Pump :
180mm
Weigh :
58kg
Transport Package :
Wooden Case or Can be customized
Brand :
MARSHINE
Original Country :
China
HS Code :
8412299090
Pressure Type :
High Pressure
Work Temperature :
Normal Grade
Description
300 Tons Double Acting Hydraulic Cylinder for Sale
Product Description

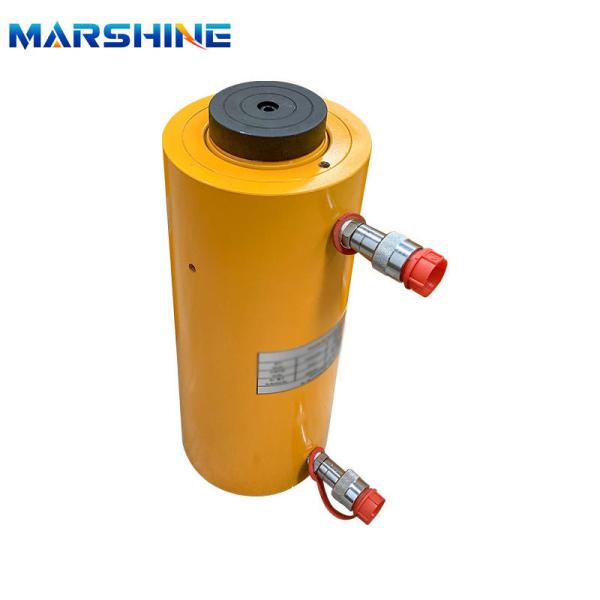

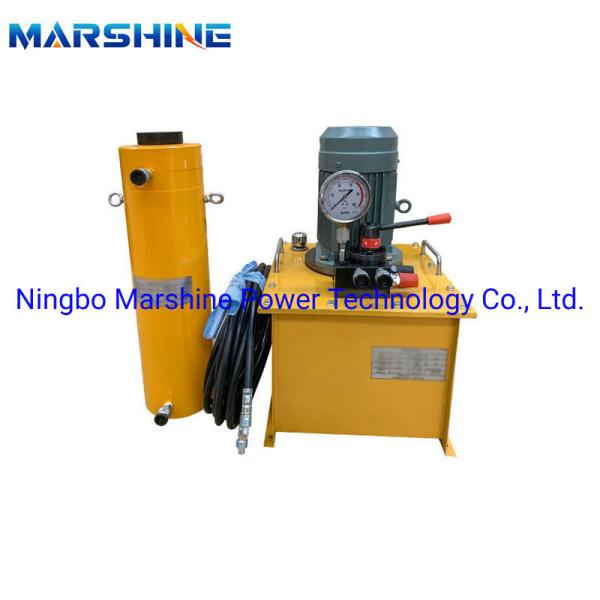

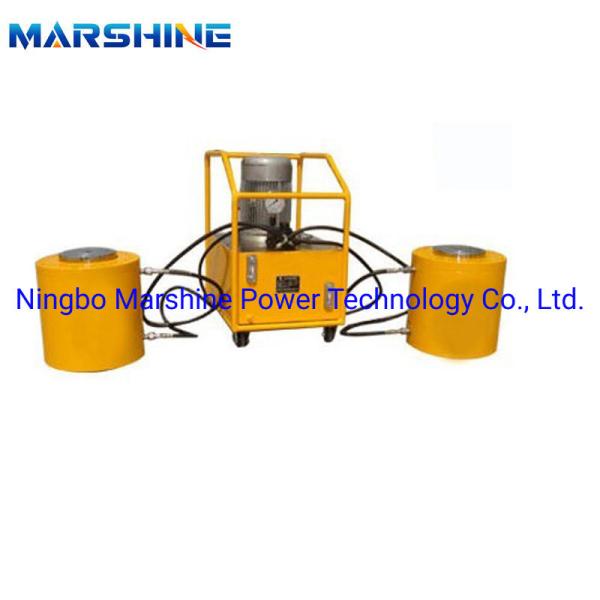

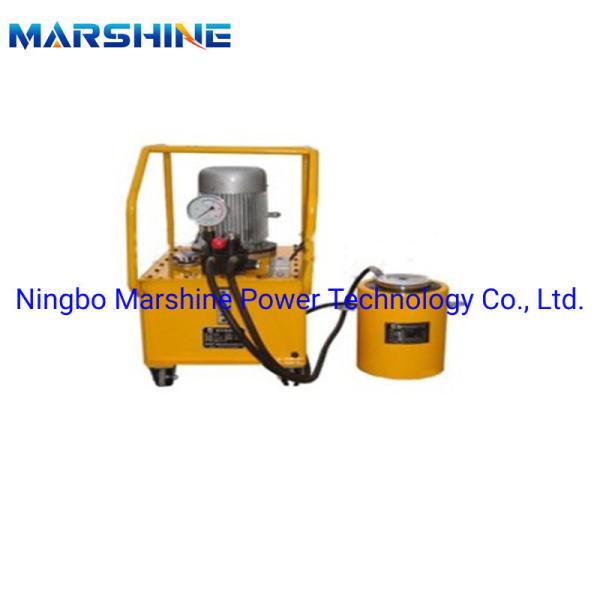

The MARSHINE high-pressure electric hydraulic cylinder is driven by a high-pressure electric oil pump, has oil pressure rebound and overflow functions, is designed with a safety protection regulator, can protect emergency overpressure, and a special structure can protect the jack. The partial load that the hydraulic cylinder can withstand is 5% of the rated pressure. The high-pressure alloy cylinder is very durable, especially in large projects, it is easy to operate and control. It can be used for lifting heavy machinery, bridge engineering, water conservancy engineering, port construction and other equipment. It has the advantages of large output, light weight, remote control, etc., and can be matched with our high-pressure oil pump to achieve a variety of working methods such as jacking, pushing, pulling, squeezing, etc.
Product Parameters


Technology Parametes

Model

Tonnage

(T)

Stroke

(mm)

Cloased height

(mm)

Extend height

(mm)

Outer diameter

of oil cylinder

(mm)

Dimension of

plunger

(mm)

Dimension of

oil pump

(mm)

Weight

(kg)

Pressure

MAR100-100

100

100

250

350

180

100

140

58

63MPA

MAR100-160

160

310

470

63

MAR100-200

200

350

550

78

MAR100-300

300

450

750

96

MAR100-500

500

650

1150

130

MAR150-100

150

100

260

360

219

125

180

58

63MPA

MAR150-160

160

320

480

69

MAR150-200

200

360

560

86

MAR150-300

300

460

760

103

MAR150-500

500

660

1160

255

MAR200-100

200

100

285

385

240

150

200

96

63MPA

MAR200-160

160

345

505

103

MAR200-200

200

385

585

116

MAR200-300

300

485

785

161

MAR200-500

500

685

1185

221

MAR320-100

320

100

310

410

330

180

250

196

63MPA

MAR320-160

160

370

530

240

MAR320-200

200

410

610

258

MAR320-300

300

510

810

311

MAR320-500

500

710

1210

456

MAR400-100

400

100

355

455

380

200

290

198

63MPA

MAR400-160

160

415

575

231

MAR400-200

200

460

660

264

MAR400-300

300

555

855

367

MAR400-500

500

755

1255

456
