Plating Tin Insulated Spade Fork Cable Lug Terminal Connector OEM
Plating Tin Insulated Spade Fork Cable Lug Terminal Connector OEM
Specifications
Brand Name :
YL
Model Number :
OEM
Place of Origin :
Jiangsu, China
MOQ :
20-4999 Pieces
Price :
$0.06
Type :
Crimp Terminal
Material :
Pure Copper
Certificate :
UL
Surface treatment :
Coated Tin
Special :
OEM Service Offered
Application :
Wire Connecting
Color :
Red Blue Yellow
Selling Units :
Single item
Single package size  :
30X20X23 cm
Single gross weight :
0.020 kg
Package Type :
30PCS/transparent poly bag,20bags/carton ,carton size 30*22.5*20cm
Description

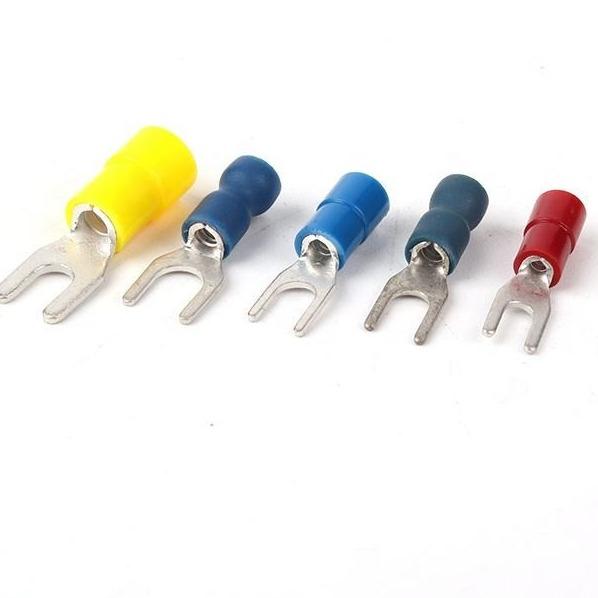

Plating Tin Insulated Spade Fork Cable Lug Terminal Connector Crimp Crimping Tool Terminals

Red Blue Yellow OEM Tinned Insulated Cable Terminal Connectors

  • Product Name: Insulated Fork Terminals; Model: SV1.25-3.2;
  • Fit for Wire: 22-16AWG (0.5-1.5 mm²);American Studard Size: #4,;
  • Max current=19A; Type: U shape Fork Type;
  • Material: Metal, plastic; Color: Silver Tone, Red;
  • package content : 100(+/-2%) x red fork Spade terminal;

Specification:

PART
NO		 TYPE WIRE RANGE φD H F B φd2 L Color Max current
A		 Crimping tools
AWG/MCM mm²
00201 1.25-3 18-16 0.5-1.6 4.0 10.6 6.5 5.7 3.2 22.0 RED 19 YYT-1


YYT-7
00202 1.25-3S 6.5 5.7 3.7 22.0
00203 1.25-3W 6.5 6.4 3.7 22.0
00204 1.25-4S 6.5 6.4 4.3 22.0
00205 1.25-4W 6.5 7.2 4.3 22.0
00206 1.25-5 6.5 8.0 5.3 22.0
00207 2-3 16-14 1.0-2.6 4.7 10.7 6.5 5.7 3.2 22.0 BLUE 19



27
00208 2-3S 6.5 5.7 3.7 22.0
00209 2-3W 6.5 6.2 3.7 22.0
00210 2-4S 6.5 6.2 4.3 22.0
00211 2-4W 6.5 7.2 4.3 22.0
00212 2-5 6.5 8.0 5.3 22.0
00213 2-6 9.0 10.7 6.4 26.0
00214 3.5-4 12-10 2.6-4.6 5.8 13.5 6.9 8.0 4.3 25.0 YELLOW 37
00215 3.5-5 8.0 8.0 5.3 25.0
00216 5.5-3 12-10 4.6-6.6 6.2 13.6 7.1 7.3 3.2 26.5 48
00217 5.5-3S 7.5 8.2 3.7 26.5
00218 5.5-4 7.5 8.2 4.3 26.5
00219 5.5-5 8.0 9.0 5.3 26.5
00220 5.5-6 12.0 12.0 6.4 33.4

Plating Tin Insulated Spade Fork Cable Lug Terminal Connector OEM

Process:

Selected material , Production, QC inspection ,Packing, Delivery

Plating Tin Insulated Spade Fork Cable Lug Terminal Connector OEM

Certification:

UL ,TUV, ISO9001, ISO14001, Brand name YL

The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.

Carefully selected material, strictly QC standards,

we had kept our quality for more than 20 years, developing for 24 years we are more profession.

Company profile:

Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.

After 24years development, we are most famous brand name in China.

We passed ISO9001 , ISO14001, TUV.

Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.

Plating Tin Insulated Spade Fork Cable Lug Terminal Connector OEMPlating Tin Insulated Spade Fork Cable Lug Terminal Connector OEM

OEM service

If you have drawings,we can produce for you;

If you have sampels, we can research for you;

If you have requirements, we can customize for you;

We would be your reliable partner and will work out the best solution for you !

Welcome to inquire from us !

Best regards
