Europe Pin Type Terminal VE16-18 Insulated Pre Insulated Terminals
Europe Pin Type Terminal VE16-18 Insulated Pre Insulated Terminals
Europe Pin Type Terminal VE16-18 Insulated Pre Insulated Terminals
Europe Pin Type Terminal VE16-18 Insulated Pre Insulated Terminals
Europe Pin Type Terminal VE16-18 Insulated Pre Insulated Terminals
Europe Pin Type Terminal VE16-18 Insulated Pre Insulated Terminals
Europe Pin Type Terminal VE16-18 Insulated Pre Insulated Terminals
Europe Pin Type Terminal VE16-18 Insulated Pre Insulated Terminals
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YL
Model Number :
OEM
MOQ :
20-4999 Pieces
Price :
$0.05
Type :
Lug
Material :
Pure Copper
Certificate :
ISO9001
Application :
Connecting
Surface treatment :
Coated Tin
Special :
OEM Service Offered
Selling Units :
Single item
Single package size  :
30X20X23 cm
Single gross weight :
15.000 kg
Package Type :
30PCS/transparent poly bag,20bags/carton ,carton size 30*22.5*20cm
Description

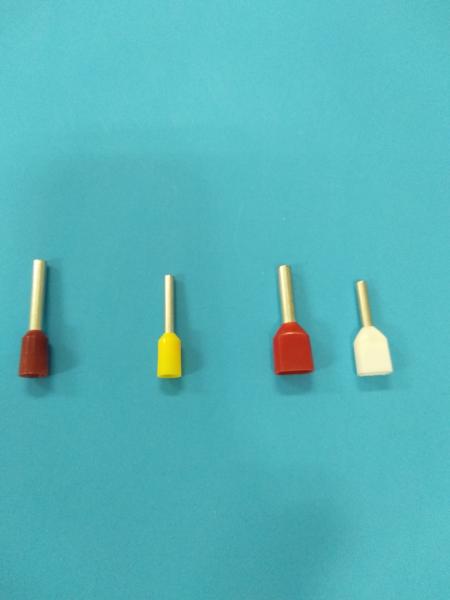

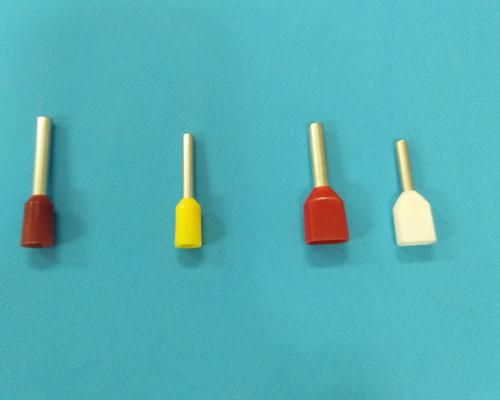

Europe Pin Type Terminal VE16-18 Insulated Pre Insulated Terminals

Insulated terminals is also known as cold-pressed terminals, electronic connectors, and air connectors are all attributed to cold-pressed terminals. It is an accessory product for electrical connection and is industrially divided into connectors.

Colour coded for different cable sizes allowing ease of identification and matching to the appropriate application tool

Specification:

Europe Pin Type Terminal VE16-18 Insulated Pre Insulated Terminals

PART
NO		 TYPE CONDUCTOR(mm) DIMENSIONS COLOR MAX CURRENT(A) Crimping Tools
L B φC φD
00901 02506 0.25 10 6 0.7 1.9 LIGHT BLUE 3 YAC-5
00902 02508 12 8
00903 03406 0.34 10 6 0.8 1.9 PINK 5
00904 03408 12 8
00905 05006 0.5 12 6 1.0 2.6 ORANGE 8
00906 05008 14 8
00907 05010 16 10
00908 07506 0.75 12 6 1.2 2.8 WHITE 10
00909 07508 14 8
00910 07510 16 10
00911 07512 18 12
00912 10006 1.0 12 6 1.4 3.0 YELLOW 12
00913 10008 14 8
00914 10010 16 10
00915 10012 18 12
00917 15008 1.5 14 8 1.7 3.5 RED 19
00918 15010 16 10
00919 15012 18 12
00920 15018 24 18
00921 25008 2.5 14 8 2.2 4.2 BLUE 27
00922 25010 16 10
00923 25012 18 12
00924 25018 24 18
00925 40010 4.0 17 10 2.8 4.8 GREY 37
00926 40012 20 12
00927 40018 26 18
00928 60012 6.0 20 12 3.5 6.3 GREEN 48 YAC-6
00929 60018 26 18
00930 100012 10.0 22 12 4.5 7.6 IVORY 62
00931 100018 28 18
00932 160012 16.0 24 12 5.8 8.8 GREEN 88
00933 160018 28 18
00934 250016 25.0 30 16 7.3 11.2 BROWN 115
00935 250018 32 18
00936 250022 35 22
00937 350012 35.0 26 12 8.3 12.3 BEIGE 160
00938 350016 30 16
00939 350018 32 18
00940 350025 39 25
00941 500020 50.0 36 20 10.3 15.0 OLIVE 215
00942 500025 40 25
00943 700021 70.0 37 21 13.5 16.0 YELLOW 235
00944 950025 95.0 44 25 14.7 18.0 RED 255
00945 1200027 120.0 48 27 16.7 20.0 BLUE 300
00946 1500032 150.0 58 32 19.5 23.0 YELLOW 350

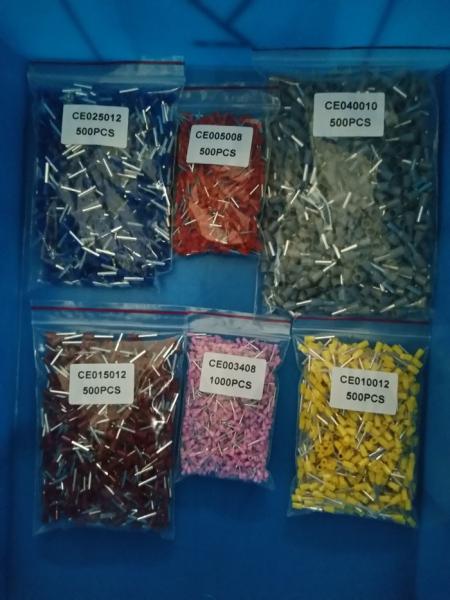

Process:

Selected material , Production, QC inspection ,Packing, Delivery

Europe Pin Type Terminal VE16-18 Insulated Pre Insulated Terminals

Certification:

ISO9001, ISO14001, Brand name YL

The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.

Carefully selected material, strictly QC standards,

we had kept our quality for more than 20 years, developing for 24 years we are more profession.

Recommend products:

Europe Pin Type Terminal VE16-18 Insulated Pre Insulated Terminals

Company profile:

Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.

After 24years development, we are most famous brand name in China.

We passed ISO9001 , ISO14001, TUV

Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.

OEM service:

If you have drawings,we can produce for you;

If you have sampels, we can research for you;

If you have requirements, we can customize for you;

We would be your reliable partner and will work out the best solution for you !

Welcome to inquire from us !

Best regards
