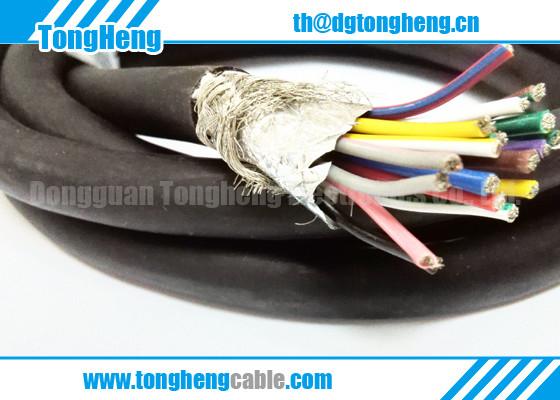

Multi Conductors CSA Approved 300V TPU Sheathed Customized Control Cable
Multi Conductors CSA Approved 300V TPU Sheathed Customized Control Cable
Specifications
Brand Name :
Halogen Free Cable
Model Number :
TH-880219
Certification :
UL, CSA, AWM
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD0.28~0.55 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000,000 meters monthly
Delivery Time :
10 days for ready goods
Packaging Details :
915 meters per carton, subject to the customized dimensions of product.
Category :
Customized Cable
Feature :
CSA Approved
Rated :
80C degree, 300V
Conductor :
Oxygen free copper wires
Jacket :
TPU materials
Standard :
100% RoHS Compliant
Description

Multi Conductors CSA Approved 300V TPU Sheathed Customized Control Cable

Customized Cable is the most featured products of Tongheng business. Multi Conductors CSA Approved 300V TPU Sheathed Customized Control Cable is created strictly following customers requirement. As the professional manufacturer, Tongheng staff engage to create customer the best quality cable. Multi Conductors CSA Approved 300V TPU Sheathed Customized Control Cable is one of the excellent example. Its remarkable advantage is CSA approved with TPU sheathed.

Here below is the product properties:

Category: customized TPU cable

Type: multi conductors cable

Rated voltage: 300V

To be customized per customers request.

Product parameters:

TPU Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
No/mm mm mm % mm mm Ω/KM(20℃)
2C 7/0.100 0.23 0.80 ≥65 0.89 3.80 381.00
2C 7/0.127 0.23 0.90 ≥65 0.89 4.10 239.00
2C 7/0.16 0.23 1.00 ≥65 0.89 4.30 150.00
2C 11/0.16 0.23 1.10 ≥65 0.89 4.40 94.20
2C 17/0.16 0.23 1.30 ≥65 0.89 4.80 59.40
2C 21/0.178 0.23 1.50 ≥65 0.89 5.20 36.70
2C 34/0.178 0.23 1.80 ≥65 0.89 5.80 23.20
2C 26/0.25 0.23 2.00 ≥65 0.89 8.00 14.60
3C 7/0.100 0.23 0.80 ≥65 0.89 5.70 381.00
3C 7/0.127 0.23 0.90 ≥65 0.89 5.90 239.00
3C 7/0.16 0.23 1.00 ≥65 0.89 6.10 150.00
3C 11/0.16 0.23 1.10 ≥65 0.89 6.30 94.20
3C 17/0.16 0.23 1.30 ≥65 0.89 6.70 59.40
3C 21/0.178 0.23 1.50 ≥65 0.89 7.20 36.70
3C 34/0.178 0.23 1.80 ≥65 0.89 7.80 23.20
4C 7/0.100 0.23 0.80 ≥65 0.89 5.90 381.00
4C 7/0.127 0.23 0.90 ≥65 0.89 6.10 239.00
4C 7/0.16 0.23 1.00 ≥65 0.89 6.40 150.00
4C 11/0.16 0.23 1.10 ≥65 0.89 6.70 94.20
4C 17/0.16 0.23 1.30 ≥65 0.89 7.10 59.40
4C 21/0.178 0.23 1.50 ≥65 0.89 7.60 36.70
5C 7/0.100 0.23 0.80 ≥65 0.89 6.20 381.00
5C 7/0.127 0.23 0.90 ≥65 0.89 6.50 239.00
5C 7/0.16 0.23 1.00 ≥65 0.89 6.60 150.00
5C 11/0.16 0.23 1.10 ≥65 0.89 7.00 94.20
5C 17/0.16 0.23 1.30 ≥65 0.89 7.60 59.40
6C 7/0.100 0.23 0.80 ≥65 0.89 6.60 381.00
6C 7/0.127 0.23 0.90 ≥65 0.89 6.90 239.00
6C 7/0.16 0.23 1.00 ≥65 0.89 7.20 150.00
6C 11/0.16 0.23 1.10 ≥65 0.89 7.50 94.20

Multi Conductors CSA Approved 300V TPU Sheathed Customized Control Cable

Multi Conductors CSA Approved 300V TPU Sheathed Customized Control Cable

Multi Conductors CSA Approved 300V TPU Sheathed Customized Control Cable

Multi Conductors CSA Approved 300V TPU Sheathed Customized Control Cable

Multi Conductors CSA Approved 300V TPU Sheathed Customized Control Cable

Multi Conductors CSA Approved 300V TPU Sheathed Customized Control Cable

Multi Conductors CSA Approved 300V TPU Sheathed Customized Control Cable

Multi Conductors CSA Approved 300V TPU Sheathed Customized Control Cable

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the differentt requirement.
