Specifications
Brand Name :
Spiral Cable
Model Number :
TH-815101
Certification :
UL, CUL, CSA, AWM, CE
Place of Origin :
Dongguan, China
MOQ :
200 PCS
Price :
USD0.16~0.50 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800,000pcs per month
Delivery Time :
10 days for ready goods
Packaging Details :
200pcs per carton box
Category :
Coil Cable
Feature :
High rebound resilience force
Rated Temperature :
80 degree
Rated Voltage :
300V
Dimensions :
To be customized per request
Standard :
RoHS Compliant
Description

China Factory Custom Made High Rebound Resilience Black Coil Cable

Coil Cable is one of Tongheng main products. As the professional manufacturer, Tongheng staff engage to present customer the best quality cable, and is able to customize the Retractable Cable exactly following customers requirement. China Factory Custom Made High Rebound Resilience Black Coil Cable is one of the excellent example. Its remarkable advantage is very high flex (rebound resilience).

Here below is the product properties:

Oxygen free copper wire conductors.
High flex and long flex life.
Spec is to be customized per customer request.

Product parameters:

Coil Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
AWG mm mm % mm mm Ω/KM(20℃)
2C 30 0.23 0.80 ≥65 0.89 3.80 381.00
2C 28 0.23 0.90 ≥65 0.89 4.10 239.00
2C 26 0.23 1.00 ≥65 0.89 4.30 150.00
2C 24 0.23 1.10 ≥65 0.89 4.40 94.20
2C 22 0.23 1.30 ≥65 0.89 4.80 59.40
2C 20 0.23 1.50 ≥65 0.89 5.20 36.70
2C 18 0.23 1.80 ≥65 0.89 5.80 23.20
2C 16 0.23 2.00 ≥65 0.89 8.00 14.60
3C 30 0.23 0.80 ≥65 0.89 5.70 381.00
3C 28 0.23 0.90 ≥65 0.89 5.90 239.00
3C 26 0.23 1.00 ≥65 0.89 6.10 150.00
3C 24 0.23 1.10 ≥65 0.89 6.30 94.20
3C 22 0.23 1.30 ≥65 0.89 6.70 59.40
3C 20 0.23 1.50 ≥65 0.89 7.20 36.70
3C 18 0.23 1.80 ≥65 0.89 7.80 23.20
4C 30 0.23 0.80 ≥65 0.89 5.90 381.00
4C 28 0.23 0.90 ≥65 0.89 6.10 239.00
4C 26 0.23 1.00 ≥65 0.89 6.40 150.00
4C 24 0.23 1.10 ≥65 0.89 6.70 94.20
4C 22 0.23 1.30 ≥65 0.89 7.10 59.40
4C 20 0.23 1.50 ≥65 0.89 7.60 36.70
5C 30 0.23 0.80 ≥65 0.89 6.20 381.00
5C 28 0.23 0.90 ≥65 0.89 6.50 239.00
5C 26 0.23 1.00 ≥65 0.89 6.60 150.00
5C 24 0.23 1.10 ≥65 0.89 7.00 94.20
5C 22 0.23 1.30 ≥65 0.89 7.60 59.40
6C 30 0.23 0.80 ≥65 0.89 6.60 381.00
6C 28 0.23 0.90 ≥65 0.89 6.90 239.00
6C 26 0.23 1.00 ≥65 0.89 7.20 150.00
6C 24 0.23 1.10 ≥65 0.89 7.50 94.20

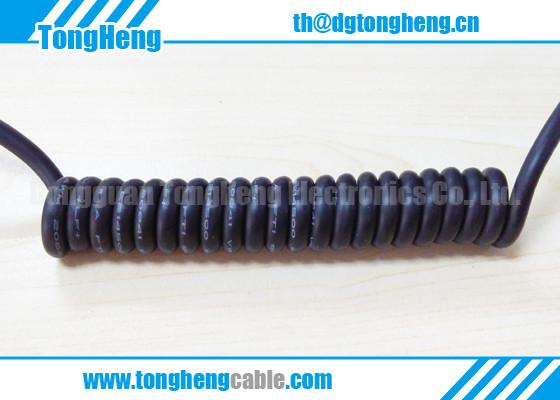

Product Images:

China Factory Custom Made High Rebound Resilience Black Coil Cable

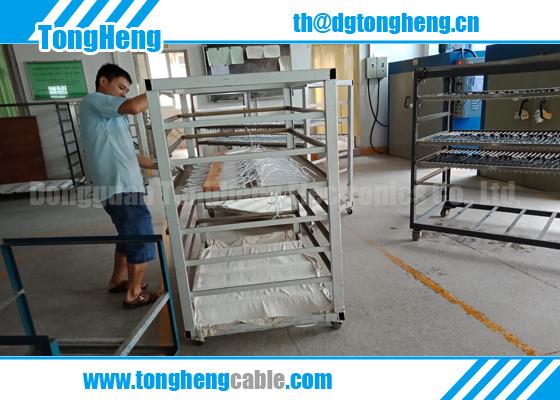

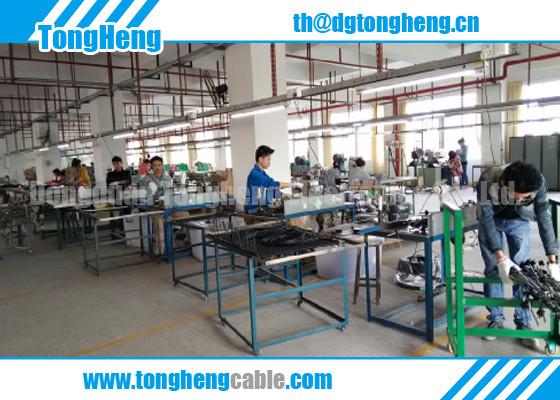

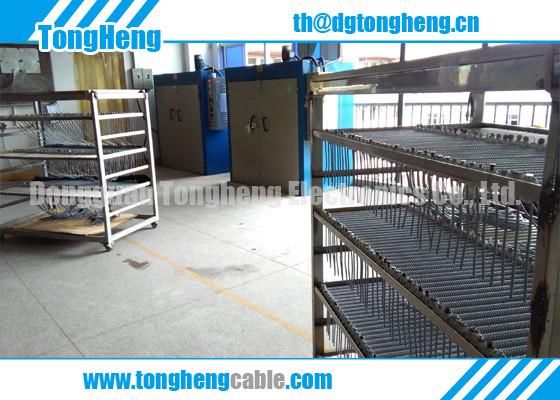

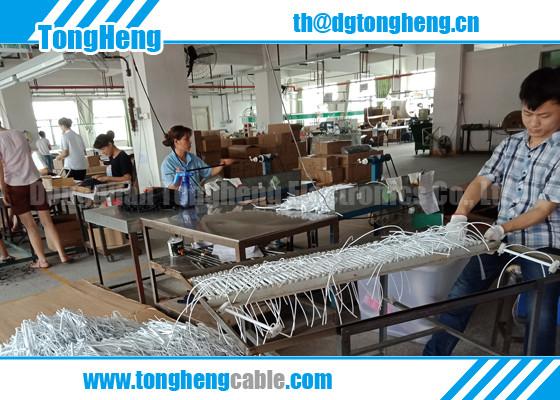

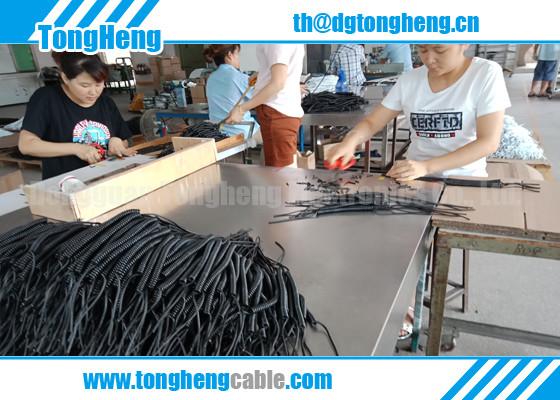

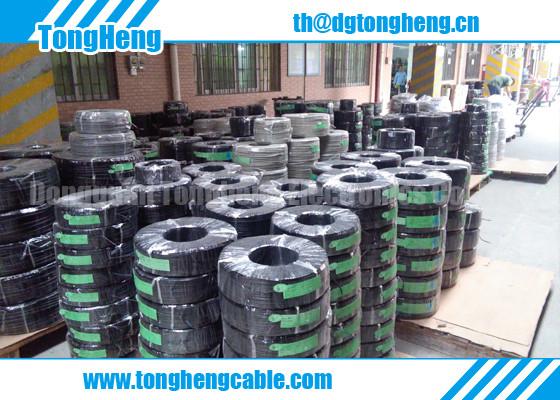

Coiled Cable Manufacturing Workshop:

China Factory Custom Made High Rebound Resilience Black Coil Cable

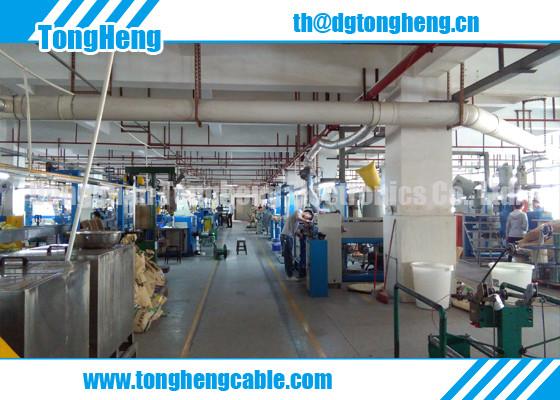

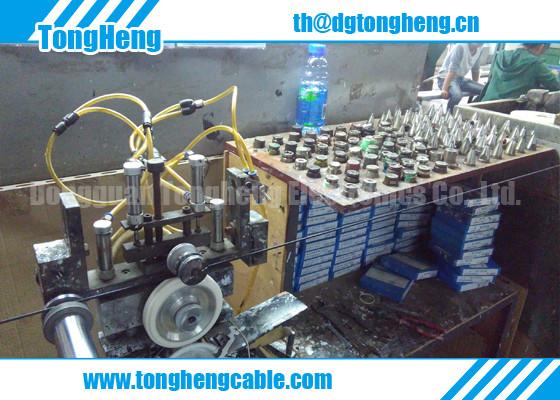

Cable Extrusion Lines:

China Factory Custom Made High Rebound Resilience Black Coil Cable

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the different requirement.

Related products: spring cable, spiral cable, curly cable, curly cord
