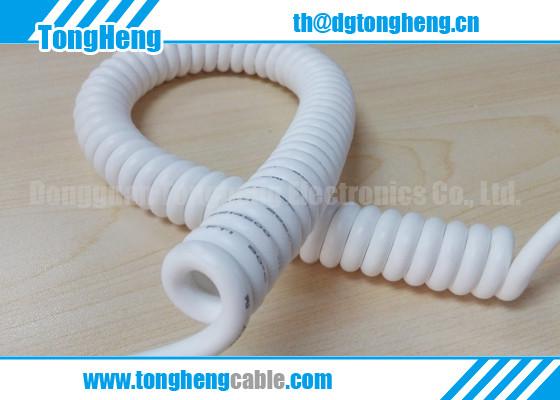

CSA Approval Marked Customized Electric Extension Coiled Spiral Cable
CSA Approval Marked Customized Electric Extension Coiled Spiral Cable
Specifications
Brand Name :
Spiral Cable
Model Number :
TH-812105
Certification :
UL, CUL, CSA, AWM, CE
Place of Origin :
Dongguan, China
MOQ :
200 PCS
Price :
USD0.14~0.50 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800,000pcs per month
Delivery Time :
10 days for ready goods
Packaging Details :
200pcs per carton box
Type :
Spiral Cable
Feature :
CSA Compliant
Rated Temperature :
80 degree
Rated Voltage :
300V
Dimensions :
To be customized per request
Standard :
RoHS Compliant
Description

CSA Approval Marked Customized Electric Extension Coiled Spiral Cable

Spiral Cable is Tongheng main products. CSA Approval Marked Customized Electric Extension Coiled Spiral Cable can be customized exactly following customers requirement. As the professional manufacturer, Tongheng staff engage to present customer the best quality article. CSA Approval Marked Customized Electric Extension Coiled Spiral Cable is one of the excellent example. Its remarkable advantage is CSA compliant.

Here below is the product properties:

Conductor Quantity: 2C to 50C.

100% RoHS compliant.

Specific spiral coiling dimensions are to be customized per request.

High quality Polyurethane sheathed materials.

Product parameters:

Spiral Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm % mm mm Ω/KM(20℃)
2C 30 7/0.100 0.23 0.80 ≥65 0.76 3.60 381.0
2C 28 7/0.127 0.23 0.90 ≥65 0.76 3.90 239.0
2C 26 7/0.16 0.23 1.00 ≥65 0.76 4.00 150.0
2C 24 11/0.16 0.23 1.10 ≥65 0.76 4.20 94.2
2C 22 17/0.16 0.23 1.30 ≥65 0.76 4.60 59.4
2C 20 21/0.178 0.23 1.50 ≥65 0.76 5.00 36.7
2C 18 34/0.178 0.23 1.80 ≥65 0.76 5.60 23.2
2C 16 26/0.25 0.23 2.00 ≥65 0.76 7.80 14.6
3C 30 7/0.100 0.23 0.80 ≥65 0.76 5.50 381.0
3C 28 7/0.127 0.23 0.90 ≥65 0.76 5.70 239.0
3C 26 7/0.16 0.23 1.00 ≥65 0.76 5.90 150.0
3C 24 11/0.16 0.23 1.10 ≥65 0.76 6.10 94.2
3C 22 17/0.16 0.23 1.30 ≥65 0.76 6.50 59.4
3C 20 21/0.178 0.23 1.50 ≥65 0.76 7.00 36.7
3C 18 34/0.178 0.23 1.80 ≥65 0.76 7.60 23.2
4C 30 7/0.100 0.23 0.80 ≥65 0.76 5.70 381.0
4C 28 7/0.127 0.23 0.90 ≥65 0.76 5.90 239.0
4C 26 7/0.16 0.23 1.00 ≥65 0.76 6.20 150.0
4C 24 11/0.16 0.23 1.10 ≥65 0.76 6.50 94.2
4C 22 17/0.16 0.23 1.30 ≥65 0.76 6.90 59.4
4C 20 21/0.178 0.23 1.50 ≥65 0.76 7.40 36.7
5C 30 7/0.100 0.23 0.80 ≥65 0.76 6.00 381.0
5C 28 7/0.127 0.23 0.90 ≥65 0.76 6.30 239.0
5C 26 7/0.16 0.23 1.00 ≥65 0.76 6.40 150.0
5C 24 11/0.16 0.23 1.10 ≥65 0.76 6.80 94.2
5C 22 17/0.16 0.23 1.30 ≥65 0.76 7.40 59.4
6C 30 7/0.100 0.23 0.80 ≥65 0.76 6.40 381.0
6C 28 7/0.127 0.23 0.90 ≥65 0.76 6.70 239.0
6C 26 7/0.16 0.23 1.00 ≥65 0.76 7.00 150.0
6C 24 11/0.16 0.23 1.10 ≥65 0.76 7.30 94.2

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the differentt requirement.
