Specifications
Brand Name :
Spiral Cable
Model Number :
TH-8127012
Certification :
UL, CUL, CSA, AWM, CE
Place of Origin :
Dongguan, China
MOQ :
200 PCS
Price :
USD0.24~0.65 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800,000pcs per month
Delivery Time :
10 days for ready goods
Packaging Details :
200pcs per carton box
Category :
Spiral Cable
Feature :
Water Proof
Rated Temperature :
105gree
Rated Voltage :
600V
Dimensions :
To be customized per request
Standard :
RoHS Compliant
Description

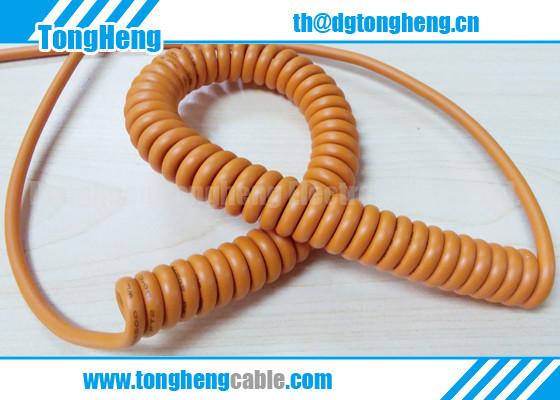

Water Proof Elastomer TPE Sheathed Customized Marine Spiral Cable Rated 105C

Spiral Cable is one of Tongheng main products. Water Proof Elastomer TPE Sheathed Customized Marine Spiral Cable Rated 105C can be customized exactly following customers requirement. As the professional manufacturer, Tongheng staff engage to present customer the best quality article. Water Proof Elastomer TPE Sheathed Customized Marine Spiral Cable Rated 105C is one of the excellent example. Its remarkable advantage is water proof and marine use purpose.

Here below is the product properties:

Conductors materials: Oxygen Free Copper Wires

Jacketed materials: Thermoplastic Elastomer TPE

Feature: Water proof

100% RoHS compliant

Product parameters:

Spiral Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
No/mm mm mm % mm mm Ω/KM(20℃)
2C 7/0.100 0.76 1.90 ≥65 1.15 6.70 381.00
2C 7/0.127 0.76 2.00 ≥65 1.15 7.00 239.00
2C 7/0.16 0.76 2.10 ≥65 1.15 7.10 150.00
2C 11/0.16 0.76 2.20 ≥65 1.15 7.30 94.20
2C 17/0.16 0.76 2.40 ≥65 1.15 7.70 59.40
2C 21/0.178 0.76 2.50 ≥65 1.15 8.10 36.70
2C 34/0.178 0.76 2.80 ≥65 1.15 8.70 23.20
2C 26/0.25 0.76 3.10 ≥65 1.15 10.90 14.60
3C 7/0.100 0.76 1.90 ≥65 1.15 8.60 381.00
3C 7/0.127 0.76 2.00 ≥65 1.15 8.80 239.00
3C 7/0.16 0.76 2.10 ≥65 1.15 9.00 150.00
3C 11/0.16 0.76 2.20 ≥65 1.15 9.20 94.20
3C 17/0.16 0.76 2.40 ≥65 1.15 9.60 59.40
3C 21/0.178 0.76 2.50 ≥65 1.15 10.10 36.70
3C 34/0.178 0.76 2.80 ≥65 1.15 10.70 23.20
4C 7/0.100 0.76 1.90 ≥65 1.15 8.80 381.00
4C 7/0.127 0.76 2.00 ≥65 1.15 9.00 239.00
4C 7/0.16 0.76 2.10 ≥65 1.15 9.30 150.00
4C 11/0.16 0.76 2.20 ≥65 1.15 9.60 94.20
4C 17/0.16 0.76 2.40 ≥65 1.15 10.00 59.40
4C 21/0.178 0.76 2.50 ≥65 1.15 10.50 36.70
5C 7/0.100 0.76 1.90 ≥65 1.15 9.10 381.00
5C 7/0.127 0.76 2.00 ≥65 1.15 9.40 239.00
5C 7/0.16 0.76 2.10 ≥65 1.15 9.50 150.00
5C 11/0.16 0.76 2.20 ≥65 1.15 9.90 94.20
5C 17/0.16 0.76 2.40 ≥65 1.15 10.60 59.40
6C 7/0.100 0.76 1.90 ≥65 1.15 9.50 381.00
6C 7/0.127 0.76 2.00 ≥65 1.15 9.80 239.00
6C 7/0.16 0.76 2.10 ≥65 1.15 10.10 150.00
6C 11/0.16 0.76 2.20 ≥65 1.15 10.40 94.20

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the different requirement.
