Glossy Black PUR Jacket Customized Retractable Spring Cable High Resilience Force

Specifications

Brand Name :

Spiral Cable

Model Number :

TH-800131

Certification :

UL, CUL, CSA, AWM, CE

Place of Origin :

Dongguan, China

MOQ :

200 PCS

Price :

USD0.12~0.45 per piece

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :

800,000pcs per month

Delivery Time :

10 days for ready goods

Packaging Details :

200pcs per carton box

Type :

Retractable Cable

Catalogue :

Customized Retractable Cable

Colour :

Glossy Black

Jacket Material :

Polyurethane PUR

Feature :

High Resilience Force

Quality :

100% RoHS Compliant

Description

Glossy Black PUR Jacket Customized Retractable Spring Cable High Resilience Force

Retractable Cable is one of Tongheng main products. Glossy Black PUR Jacket Customized Retractable Spring Cable High Resilience Force can be customized exactly following customers requirement. As the professional manufacturer, Tongheng staff engage to present customer the best quality article. Glossy Black PUR Jacket Customized Retractable Spring Cable High Resilience Force is one of the excellent example. Its remarkable advantage is high resilience force.

Here below is the product properties:

High purity copper conductors.
Rated Voltage: 300V
Rated Temperature: 80C Degrees
Colour coded insulation wires, can be determined by customers.
Wonderful resilience force, long flex life for use.
Approved style numbers: UL20030 recommended, or to be determined by customers.

Product parameters:

Part Number	Specification	Conductor Strands	Jacket Thickness	Overall Diameter (mm)
Ul20001	AWG30 x 2 Cores	26/0.05	24 mils / 0.61mm	3.40
Ul20002	AWG28 x 2 Cores	41/0.05	24 mils / 0.61mm	3.70
Ul20003	AWG26 x 2 Cores	66/0.05	24 mils / 0.61mm	3.80
Ul20004	AWG24 x 2 Cores	105/0.05	24 mils / 0.61mm	4.00
Ul20005	AWG22 x 2 Cores	165/0.05	24 mils / 0.61mm	4.40
Ul20006	AWG20 x 2 Cores	265/0.05	24 mils / 0.61mm	4.80
Ul20007	AWG18 x 2 Cores	164/0.08	24 mils / 0.61mm	5.40
Ul20008	AWG16 x 2 Cores	265/0.08	24 mils / 0.61mm	7.60
Ul20009	AWG30 x 2 Cores	26/0.05	24 mils / 0.61mm	5.30
Ul20010	AWG28 x 2 Cores	41/0.05	24 mils / 0.61mm	5.50
Ul20011	AWG26 x 2 Cores	66/0.05	24 mils / 0.61mm	5.70
Ul20012	AWG24 x 2 Cores	105/0.05	24 mils / 0.61mm	5.90
Ul20013	AWG22 x 2 Cores	165/0.05	24 mils / 0.61mm	6.30
Ul20014	AWG20 x 2 Cores	265/0.05	24 mils / 0.61mm	6.80
Ul20015	AWG18 x 2 Cores	164/0.08	24 mils / 0.61mm	7.40
Ul20016	AWG30 x 2 Cores	26/0.05	24 mils / 0.61mm	5.50
Ul20017	AWG28 x 2 Cores	41/0.05	24 mils / 0.61mm	5.70
Ul20018	AWG26 x 2 Cores	66/0.05	24 mils / 0.61mm	6.00
Ul20019	AWG24 x 2 Cores	105/0.05	24 mils / 0.61mm	6.30
Ul20020	AWG22 x 2 Cores	165/0.05	24 mils / 0.61mm	6.70
Ul20021	AWG20 x 2 Cores	265/0.05	24 mils / 0.61mm	8.20
Ul20022	AWG30 x 2 Cores	26/0.05	24 mils / 0.61mm	5.80
Ul20023	AWG28 x 2 Cores	41/0.05	24 mils / 0.61mm	6.10
Ul20024	AWG26 x 2 Cores	66/0.05	24 mils / 0.61mm	6.20
Ul20025	AWG24 x 2 Cores	105/0.05	24 mils / 0.61mm	6.70
Ul20026	AWG22 x 2 Cores	165/0.05	24 mils / 0.61mm	7.20
Ul20027	AWG30 x 2 Cores	26/0.05	24 mils / 0.61mm	6.20
Ul20028	AWG28 x 2 Cores	41/0.05	24 mils / 0.61mm	6.50
Ul20029	AWG26 x 2 Cores	66/0.05	24 mils / 0.61mm	6.80
Ul20030	AWG24 x 2 Cores	105/0.05	24 mils / 0.61mm	7.10

Company Profile:

Tongheng company (Dongguan Tongheng Electronics Co., Ltd.) was established since 2007. Its former body was an UK holding company. Its featured products include but are not limited to Retractable cable, Customized cable, Halogen free cable, Flame retardant cable, Silicone rubber cable, Rubber flexible cable, Teflon FEP cable, Elastomer cable, Polyurethane cable, Irradiated XLPE cable, UL Plenum cable, CE approved cable.

The products are widely used for all kinds of electrical or electronic appliances, commercial industries, aerospace, automotive, gaming, medical devices, telecommunications etc. Thanks to the remarkable quality performance, our company earns the trust and loyalty from more and more customers. Up to now, most of the products were exported to many foreign countries other than China. Our main customers list includes Flextronics, Littelfuse, Barcrest, Schneider, Avaya, Siemen, GE, etc.

For many years experience, Tongheng company has created himeself the great position of advantage in the market. As one of the leading manufacturers in China, Tongheng company are focused more on providing full solution of custom make the cable and wire strictly following customers requirement. Customers can bring with very specific requirement or just the concept, Tongheng staff is able to make it the perfect artwork.

Tongheng company guarantees the high quality. Tongheng company manufactures cables and wires with oxygen-free pure copper conductors only. Higher copper conductor purity makes the cables and wires with perfect electrical conductivity, wonderful processing performance, good corrosion resistance and so on. In addition, Tongheng company is granted with several international safety approval, that is, UL, Cul, CSA, VDE, CCC, etc.

Tongheng company continuously work to achieve the best quality of products by investing in the updating tools & facilities, and bring in experienced talents to better meet the demand and requirement of our customers. This has allowed us to create so much more value for our customers.

Quality is our life of the factory. With serious and efficient management, we dedicate ourselves to build the products as perfectly what the customers need. All our purchased raw materials must 100% comply with our HSF regulation. While all our cables and wires delivered to customers must be 100% RoHS compliant. 100%!!

Product Image:

Glossy Black PUR Jacket Customized Retractable Spring Cable High Resilience Force

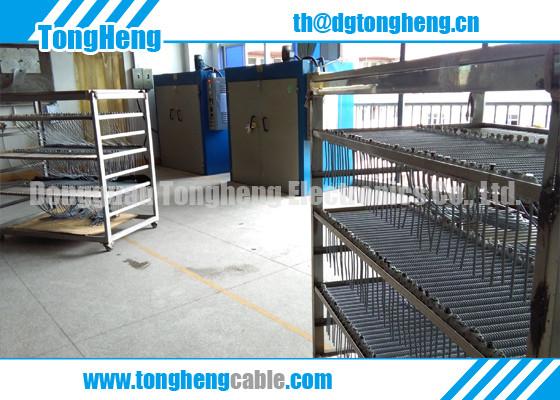

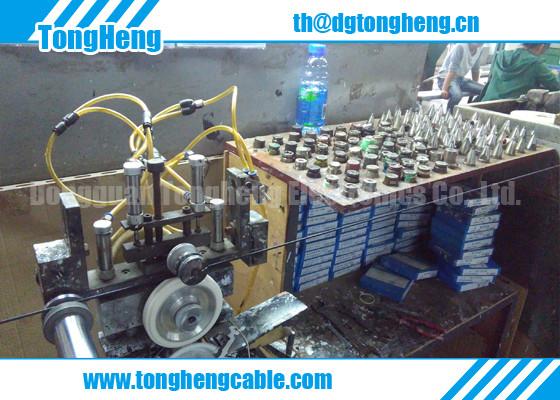

Retractable Cable Coiling Lines:

Tongheng factory owns the full spiral coiling facilities to manufacture retractable cable.
All the spiral coiling & heating procedures are managed within Tongheng factory.
The monthly output is up to 200,000 pcs.

Glossy Black PUR Jacket Customized Retractable Spring Cable High Resilience Force

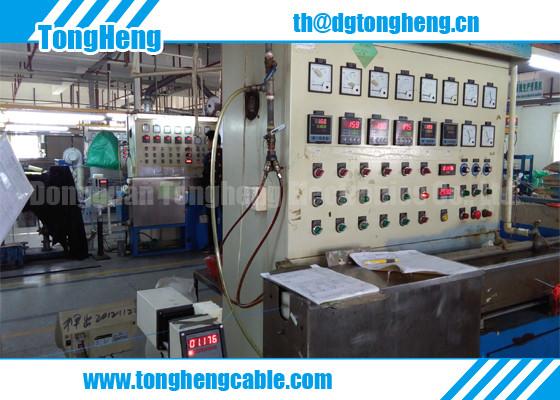

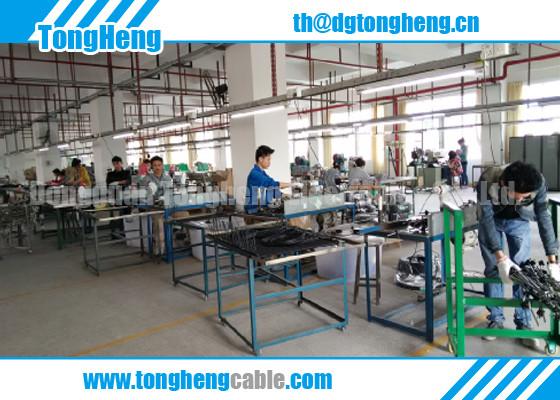

Production Lines:

As the professional customized cable manufacturer, Tongheng factory have 25 extrusion production lines.

The production capacity is up to 50,000,000 meters monthly.

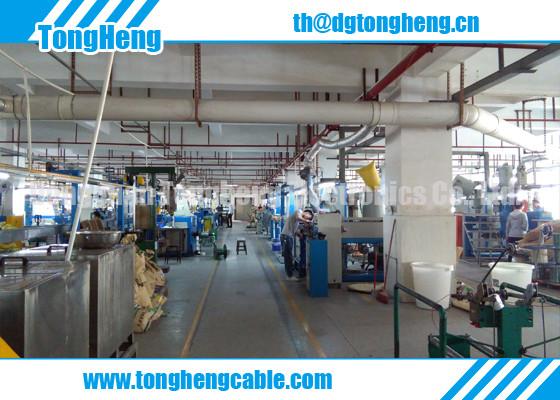

Below is the extrusion lines workshops.

Glossy Black PUR Jacket Customized Retractable Spring Cable High Resilience Force

Quality Management:

All cables & wires delivered to customers must 100% comply with RoHS.

All raw materials purchased from suppliers must 100% meet our regulation of HSF (Hazardous Substance Free).

All finished products 100% comply with HSF standard.

Cable Warehouse:

Glossy Black PUR Jacket Customized Retractable Spring Cable High Resilience Force

Contact:

Thanks for your visit to our website. The above mentioned properties and displayed parameters are just for reference. Please ask us for customized ones immediately if you have the different requirement.
