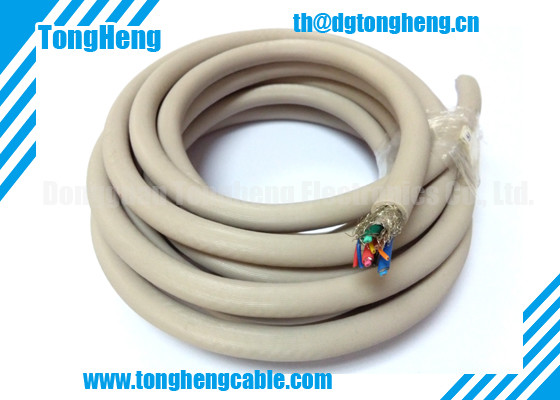

Molex Connector Terminated Grey Colour Braiding Shielded Custom Cable
Molex Connector Terminated Grey Colour Braiding Shielded Custom Cable
Specifications
Brand Name :
Power Cable
Model Number :
TH-810115
Certification :
UL, CSA, AWM
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD0.13~0.46 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000,000 meters monthly
Delivery Time :
5~10 working days
Packaging Details :
915 meters per carton, subject to the customized dimensions of product.
Type :
Customized Cable
Feature :
Braiding Shielded
Rated Temperature :
80 degree
Rated Voltage :
300V
Colour :
Grey
Standard :
100% RoHS Compliant
Description

Molex Connector Terminated Grey Colour Braiding Shielded Custom Cable

Customized Cable is the most featured products of Tongheng business. Molex Connector Terminated Grey Colour Braiding Shielded Custom Cable is created strictly following customers requirement. As the professional manufacturer, Tongheng staff engage to create customer the best quality cable. Molex Connector Terminated Grey Colour Braiding Shielded Custom Cable is one of the excellent example. Its remarkable advantage is braiding shielded.

Here below is the product properties:

End: molex connector terminated

Colour: grey

Shield: braiding

Spec to be customized per customers requirement.

Product parameters:

Flexible Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Current Capacity
AWG mm mm % mm mm A
2C 30 0.38 1.10 ≥65 1.15 5.00 0.4
2C 28 0.38 1.20 ≥65 1.15 5.30 0.6
2C 26 0.38 1.30 ≥65 1.15 5.40 0.8
2C 24 0.38 1.40 ≥65 1.15 5.70 1.5
2C 22 0.38 1.60 ≥65 1.15 6.10 2.5
2C 20 0.38 1.80 ≥65 1.15 6.50 6.0
2C 18 0.38 2.10 ≥65 1.15 7.10 10.0
2C 16 0.38 2.40 ≥65 1.15 7.70 19.0
3C 30 0.38 1.10 ≥65 1.15 5.30 0.4
3C 28 0.38 1.20 ≥65 1.15 5.50 0.6
3C 26 0.38 1.30 ≥65 1.15 5.70 0.8
3C 24 0.38 1.40 ≥65 1.15 5.90 1.5
3C 22 0.38 1.60 ≥65 1.15 6.50 2.5
3C 20 0.38 1.80 ≥65 1.15 6.80 6.0
3C 18 0.38 2.10 ≥65 1.15 7.40 10.0
4C 30 0.38 1.10 ≥65 1.15 5.50 0.4
4C 28 0.38 1.20 ≥65 1.15 5.70 0.6
4C 26 0.38 1.30 ≥65 1.15 6.00 0.8
4C 24 0.38 1.40 ≥65 1.15 6.40 1.5
4C 22 0.38 1.60 ≥65 1.15 7.70 2.5
4C 20 0.38 1.80 ≥65 1.15 7.20 6.0
5C 30 0.38 1.10 ≥65 1.15 5.70 0.4
5C 28 0.38 1.20 ≥65 1.15 5.80 0.6
5C 26 0.38 1.30 ≥65 1.15 6.00 0.8
5C 24 0.38 1.40 ≥65 1.15 6.40 1.5
5C 22 0.38 1.60 ≥65 1.15 7.00 2.5
6C 30 0.38 1.10 ≥65 1.15 5.90 0.4
6C 28 0.38 1.20 ≥65 1.15 6.30 0.6
6C 26 0.38 1.30 ≥65 1.15 6.70 0.8
6C 24 0.38 1.40 ≥65 1.15 7.00 1.5

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the different requirement.
