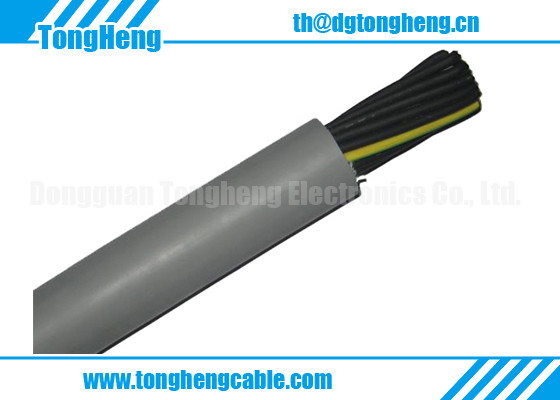

Light Stress Application and CE Certified Customized PUR Welding Cable LSZH Complied
Light Stress Application and CE Certified Customized PUR Welding Cable LSZH Complied
Specifications
Brand Name :
PUR Cable
Model Number :
TH-880138
Certification :
UL, CSA, AWM
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD0.20~0.63 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000,000 meters monthly
Delivery Time :
5~10 working days
Packaging Details :
915 meters per carton, subject to the customized dimensions of product.
Type :
Customized Cable
Catalogue :
Custom PUR Cable
Feature :
Light Stress, CE Certified
Rated :
80C Degree, 300V
Jacket :
Polyurethane PUR
Standard :
100% RoHS Compliant
Description

Light Stress Application and CE Certified Customized PUR Welding Cable LSZH Complied

Customized Cable is the most featured products of Tongheng business. Light Stress Application and CE Certified Customized PUR Welding Cable LSZH Complied is created strictly following customers requirement. As the professional manufacturer, Tongheng staff engage to create customer the best quality cable. Light Stress Application and CE Certified Customized PUR Welding Cable LSZH Complied is one of the excellent example. Its remarkable advantage is light stress application and CE certified.

Here below is the product properties:

Feature: light stress application

Approval: CE certified

Rated temperature: 80C degrees

Spec to be customized per customers request.

Product parameters:

PUR Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Current Capacity
AWG mm mm % mm mm A
2C 30 0.38 1.10 ≥65 1.524 5.80 0.4
2C 28 0.38 1.20 ≥65 1.524 6.10 0.6
2C 26 0.38 1.30 ≥65 1.524 6.20 0.8
2C 24 0.38 1.40 ≥65 1.524 6.50 1.5
2C 22 0.38 1.60 ≥65 1.524 6.90 2.5
2C 20 0.38 1.80 ≥65 1.524 7.30 6.0
2C 18 0.38 2.10 ≥65 1.524 7.90 10.0
2C 16 0.38 2.40 ≥65 1.524 8.50 19.0
3C 30 0.38 1.10 ≥65 1.524 6.10 0.4
3C 28 0.38 1.20 ≥65 1.524 6.30 0.6
3C 26 0.38 1.30 ≥65 1.524 6.50 0.8
3C 24 0.38 1.40 ≥65 1.524 6.70 1.5
3C 22 0.38 1.60 ≥65 1.524 6.50 2.5
3C 20 0.38 1.80 ≥65 1.524 7.50 6.0
3C 18 0.38 2.10 ≥65 1.524 8.20 10.0
4C 30 0.38 1.10 ≥65 1.524 6.30 0.4
4C 28 0.38 1.20 ≥65 1.524 6.50 0.6
4C 26 0.38 1.30 ≥65 1.524 6.80 0.8
4C 24 0.38 1.40 ≥65 1.524 7.20 1.5
4C 22 0.38 1.60 ≥65 1.524 8.50 2.5
4C 20 0.38 1.80 ≥65 1.524 8.00 6.0
5C 30 0.38 1.10 ≥65 1.524 6.50 0.4
5C 28 0.38 1.20 ≥65 1.524 6.60 0.6
5C 26 0.38 1.30 ≥65 1.524 6.80 0.8
5C 24 0.38 1.40 ≥65 1.524 7.20 1.5
5C 22 0.38 1.60 ≥65 1.524 7.80 2.5
6C 30 0.38 1.10 ≥65 1.524 6.70 0.4
6C 28 0.38 1.20 ≥65 1.524 7.10 0.6
6C 26 0.38 1.30 ≥65 1.524 7.50 0.8
6C 24 0.38 1.40 ≥65 1.524 7.80 1.5

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the differentt requirement.
