Wear Resistant and Low Smoke Track Use Customized Fire Retardant Cable
Wear Resistant and Low Smoke Track Use Customized Fire Retardant Cable
Specifications
Brand Name :
Fire Retardant Cable
Model Number :
TH-830142
Certification :
UL, CSA, AWM
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD0.16~0.46 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000,000 meters monthly
Delivery Time :
5~10 working days
Packaging Details :
915 meters per carton, subject to the customized dimensions of product.
Type :
Customized Cable
Catalogue :
Fire Retardant Cable
Feature :
Wear Resistant, Low Smoke
Rated :
105C Degree, 300V
Jacket :
Fire Resistant Material
Standard :
100% RoHS Compliant
Description

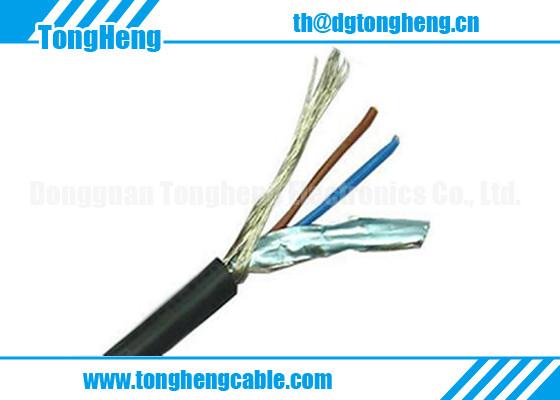

Wear Resistant and Low Smoke Track Use Customized Fire Retardant Cable

Customized Cable is the most featured products of Tongheng business. Wear Resistant and Low Smoke Track Use Customized Fire Retardant Cable is created strictly following customers requirement. As the professional manufacturer, Tongheng staff engage to create customer the best quality cable. Wear Resistant and Low Smoke Track Use Customized Fire Retardant Cable is one of the excellent example. Its remarkable advantage is wear resistant and low smoke.

Here below is the product properties:

Feature: wear resistant, low smoke

Application: track use

Standard: UL758, CSA22.2

Spec to be customized per customers requirement.

Product parameters:

Fire Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
AWG mm mm % mm mm Ω/KM(20℃)
2C 30 0.38 1.10 ≥65 1.15 5.00 381.00
2C 28 0.38 1.20 ≥65 1.15 5.30 239.00
2C 26 0.38 1.30 ≥65 1.15 5.40 150.00
2C 24 0.38 1.40 ≥65 1.15 5.70 94.20
2C 22 0.38 1.60 ≥65 1.15 6.10 59.40
2C 20 0.38 1.80 ≥65 1.15 6.50 36.70
2C 18 0.38 2.10 ≥65 1.15 7.10 23.20
2C 16 0.38 2.40 ≥65 1.15 7.70 14.60
3C 30 0.38 1.10 ≥65 1.15 5.30 381.00
3C 28 0.38 1.20 ≥65 1.15 5.50 239.00
3C 26 0.38 1.30 ≥65 1.15 5.70 150.00
3C 24 0.38 1.40 ≥65 1.15 5.90 94.20
3C 22 0.38 1.60 ≥65 1.15 6.50 59.40
3C 20 0.38 1.80 ≥65 1.15 6.80 36.70
3C 18 0.38 2.10 ≥65 1.15 7.40 23.20
4C 30 0.38 1.10 ≥65 1.15 5.50 381.00
4C 28 0.38 1.20 ≥65 1.15 5.70 239.00
4C 26 0.38 1.30 ≥65 1.15 6.00 150.00
4C 24 0.38 1.40 ≥65 1.15 6.40 94.20
4C 22 0.38 1.60 ≥65 1.15 7.70 59.40
4C 20 0.38 1.80 ≥65 1.15 7.20 36.70
5C 30 0.38 1.10 ≥65 1.15 5.70 381.00
5C 28 0.38 1.20 ≥65 1.15 5.80 239.00
5C 26 0.38 1.30 ≥65 1.15 6.00 150.00
5C 24 0.38 1.40 ≥65 1.15 6.40 94.20
5C 22 0.38 1.60 ≥65 1.15 7.00 59.40
6C 30 0.38 1.10 ≥65 1.15 5.90 381.00
6C 28 0.38 1.20 ≥65 1.15 6.30 239.00
6C 26 0.38 1.30 ≥65 1.15 6.70 150.00
6C 24 0.38 1.40 ≥65 1.15 7.00 94.20

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the different requirement.
