Specifications
Brand Name :
PUR Cable
Model Number :
TH-880118
Certification :
UL, CSA, AWM
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD0.25~0.59 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000,000 meters monthly
Delivery Time :
5~10 working days
Packaging Details :
915 meters per carton, subject to the customized dimensions of product.
Type :
Customized Cable
Feature :
Low Voltage With CE & UL
Rated :
80C degree, 30V
Conductor :
PP Insulated
Jacket :
Polyurethane PUR
Standard :
100% RoHS Compliant
Description

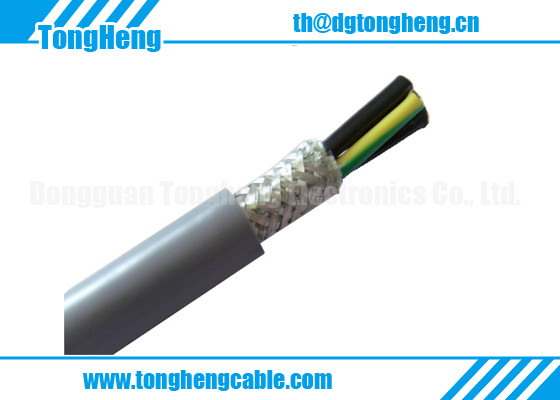

30V Low Voltage With CE Approval and UL Approval Markings Customized PUR Cable

Customized Cable is the most featured products of Tongheng business. 30V Low Voltage With CE Approval and UL Approval Markings Customized PUR Cable is created strictly following customers requirement. As the professional manufacturer, Tongheng staff engage to create customer the best quality cable. 30V Low Voltage With CE Approval and UL Approval Markings Customized PUR Cable is one of the excellent example. Its remarkable advantage is low voltage with CE approval.

Here below is the product properties:

Feature: 30V low voltage with CE marking

Approval type: CE and UL approval

Standard: UL758

Spec to be customized per customers request.

Product parameters:

PUR Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Current Capacity
AWG mm mm % mm mm A
2C 30 0.76 1.90 ≥65 0.76 6.00 0.4
2C 28 0.76 2.00 ≥65 0.76 6.30 0.6
2C 26 0.76 2.10 ≥65 0.76 6.40 0.8
2C 24 0.76 2.20 ≥65 0.76 6.60 1.5
2C 22 0.76 2.40 ≥65 0.76 7.00 2.5
2C 20 0.76 2.50 ≥65 0.76 7.40 6.0
2C 18 0.76 2.80 ≥65 0.76 8.00 10.0
2C 16 0.76 3.10 ≥65 0.76 10.20 19.0
3C 30 0.76 1.90 ≥65 0.76 7.90 0.4
3C 28 0.76 2.00 ≥65 0.76 8.10 0.6
3C 26 0.76 2.10 ≥65 0.76 8.30 0.8
3C 24 0.76 2.20 ≥65 0.76 8.50 1.5
3C 22 0.76 2.40 ≥65 0.76 8.90 2.5
3C 20 0.76 2.50 ≥65 0.76 9.40 6.0
3C 18 0.76 2.80 ≥65 0.76 10.00 10.0
4C 30 0.76 1.90 ≥65 0.76 8.10 0.4
4C 28 0.76 2.00 ≥65 0.76 8.30 0.6
4C 26 0.76 2.10 ≥65 0.76 8.60 0.8
4C 24 0.76 2.20 ≥65 0.76 8.90 1.5
4C 22 0.76 2.40 ≥65 0.76 9.30 2.5
4C 20 0.76 2.50 ≥65 0.76 9.80 6.0
5C 30 0.76 1.90 ≥65 0.76 8.40 0.4
5C 28 0.76 2.00 ≥65 0.76 8.70 0.6
5C 26 0.76 2.10 ≥65 0.76 8.80 0.8
5C 24 0.76 2.20 ≥65 0.76 9.20 1.5
5C 22 0.76 2.40 ≥65 0.76 9.80 2.5
6C 30 0.76 1.90 ≥65 0.76 8.80 0.4
6C 28 0.76 2.00 ≥65 0.76 9.10 0.6
6C 26 0.76 2.10 ≥65 0.76 9.40 0.8
6C 24 0.76 2.20 ≥65 0.76 9.70 1.5

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the different requirement.
