Number Coded Conductors and Low Torsion TPE Coated Customized Cable
Number Coded Conductors and Low Torsion TPE Coated Customized Cable
Specifications
Brand Name :
Halogen Free Cable
Model Number :
TH-860123
Certification :
UL, CSA, AWM
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD0.16~0.45 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000,000 meters monthly
Delivery Time :
5~10 working days
Packaging Details :
915 meters per carton, subject to the customized dimensions of product.
Type :
Customized Cable
Feature :
Low Torsion
Rated :
105C degree, 300V
Conductor :
Pure Copper Wires
Jacket :
Thermoplastic Elastomer TPE
Standard :
100% RoHS Compliant
Description

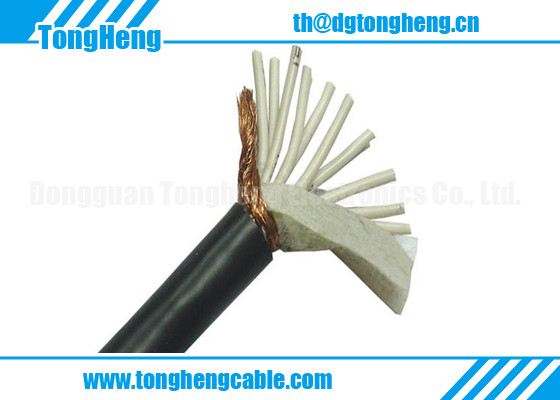

Number Coded Conductors and Low Torsion TPE Coated Customized Cable

Customized Cable is the most featured products of Tongheng business. Number Coded Conductors and Low Torsion TPE Coated Customized Cable is created strictly following customers requirement. As the professional manufacturer, Tongheng staff engage to create customer the best quality cable. Number Coded Conductors and Low Torsion TPE Coated Customized Cable is one of the excellent example. Its remarkable advantage is low torsion.

Here below is the product properties:

Conductors: number coded

Insulation materials: Thermoplastic elastomer

Sheath materials: Thermoplastic elastomer

Spec to be customized per customers request.

Product parameters:

TPE Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Current Capacity
No/mm mm mm % mm mm A
2C 7/0.100 0.38 1.10 ≥65 1.524 5.80 0.4
2C 7/0.127 0.38 1.20 ≥65 1.524 6.10 0.6
2C 7/0.16 0.38 1.30 ≥65 1.524 6.20 0.8
2C 11/0.16 0.38 1.40 ≥65 1.524 6.50 1.5
2C 17/0.16 0.38 1.60 ≥65 1.524 6.90 2.5
2C 21/0.178 0.38 1.80 ≥65 1.524 7.30 6.0
2C 34/0.178 0.38 2.10 ≥65 1.524 7.90 10.0
2C 26/0.25 0.38 2.40 ≥65 1.524 8.50 19.0
3C 7/0.100 0.38 1.10 ≥65 1.524 6.10 0.4
3C 7/0.127 0.38 1.20 ≥65 1.524 6.30 0.6
3C 7/0.16 0.38 1.30 ≥65 1.524 6.50 0.8
3C 11/0.16 0.38 1.40 ≥65 1.524 6.70 1.5
3C 17/0.16 0.38 1.60 ≥65 1.524 6.50 2.5
3C 21/0.178 0.38 1.80 ≥65 1.524 7.50 6.0
3C 34/0.178 0.38 2.10 ≥65 1.524 8.20 10.0
4C 7/0.100 0.38 1.10 ≥65 1.524 6.30 0.4
4C 7/0.127 0.38 1.20 ≥65 1.524 6.50 0.6
4C 7/0.16 0.38 1.30 ≥65 1.524 6.80 0.8
4C 11/0.16 0.38 1.40 ≥65 1.524 7.20 1.5
4C 17/0.16 0.38 1.60 ≥65 1.524 8.50 2.5
4C 21/0.178 0.38 1.80 ≥65 1.524 8.00 6.0
5C 7/0.100 0.38 1.10 ≥65 1.524 6.50 0.4
5C 7/0.127 0.38 1.20 ≥65 1.524 6.60 0.6
5C 7/0.16 0.38 1.30 ≥65 1.524 6.80 0.8
5C 11/0.16 0.38 1.40 ≥65 1.524 7.20 1.5
5C 17/0.16 0.38 1.60 ≥65 1.524 7.80 2.5
6C 7/0.100 0.38 1.10 ≥65 1.524 6.70 0.4
6C 7/0.127 0.38 1.20 ≥65 1.524 7.10 0.6
6C 7/0.16 0.38 1.30 ≥65 1.524 7.50 0.8
6C 11/0.16 0.38 1.40 ≥65 1.524 7.80 1.5

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the differentt requirement.
