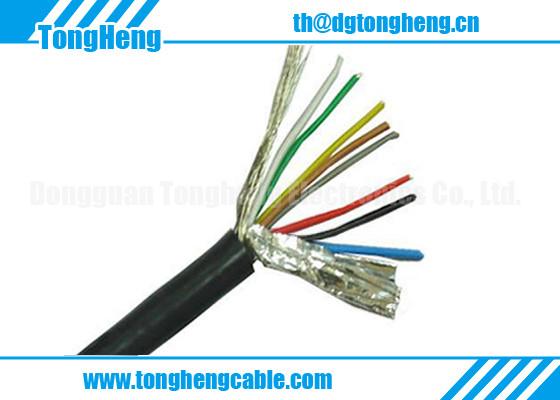

8C Low Smoke Pure Copper Conductors Shielded Customized LSZH Coated Cable
8C Low Smoke Pure Copper Conductors Shielded Customized LSZH Coated Cable
Specifications
Brand Name :
Halogen Free Cable
Model Number :
TH-890153
Certification :
UL, CSA, AWM
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD0.15~0.52 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000,000 meters monthly
Delivery Time :
5~10 working days
Packaging Details :
915 meters per carton, subject to the customized dimensions of product.
Type :
Customized Cable
Catalogue :
LSZH Cable
Feature :
Low Smoke, Shielded
Rated :
105C Degree, 300V
Jacket :
LSZH Compound
Standard :
100% RoHS Compliant
Description

8C Low Smoke Pure Copper Conductors Shielded Customized LSZH Coated Cable

Customized Cable is the most featured products of Tongheng business. 8C Low Smoke Pure Copper Conductors Shielded Customized LSZH Coated Cable is created strictly following customers requirement. As the professional manufacturer, Tongheng staff engage to create customer the best quality cable. 8C Low Smoke Pure Copper Conductors Shielded Customized LSZH Coated Cable is one of the excellent example. Its remarkable advantage is low smoke.

Here below is the product properties:

Conductor quantity: 2C to 55C

Conductor material: pure copper

Standard: UL758, CSA22.2

Spec to be customized per customers request.

Product parameters:

LSZH Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Current Capacity
AWG mm mm % mm mm A
2C 30 0.38 1.10 ≥70 1.524 5.80 0.4
2C 28 0.38 1.20 ≥70 1.524 6.10 0.6
2C 26 0.38 1.30 ≥70 1.524 6.20 0.8
2C 24 0.38 1.40 ≥70 1.524 6.50 1.5
2C 22 0.38 1.60 ≥70 1.524 6.90 2.5
2C 20 0.38 1.80 ≥70 1.524 7.30 6.0
2C 18 0.38 2.10 ≥70 1.524 7.90 10.0
2C 16 0.38 2.40 ≥70 1.524 8.50 19.0
3C 30 0.38 1.10 ≥70 1.524 6.10 0.4
3C 28 0.38 1.20 ≥70 1.524 6.30 0.6
3C 26 0.38 1.30 ≥70 1.524 6.50 0.8
3C 24 0.38 1.40 ≥70 1.524 6.70 1.5
3C 22 0.38 1.60 ≥70 1.524 6.50 2.5
3C 20 0.38 1.80 ≥70 1.524 7.50 6.0
3C 18 0.38 2.10 ≥70 1.524 8.20 10.0
4C 30 0.38 1.10 ≥70 1.524 6.30 0.4
4C 28 0.38 1.20 ≥70 1.524 6.50 0.6
4C 26 0.38 1.30 ≥70 1.524 6.80 0.8
4C 24 0.38 1.40 ≥70 1.524 7.20 1.5
4C 22 0.38 1.60 ≥70 1.524 8.50 2.5
4C 20 0.38 1.80 ≥70 1.524 8.00 6.0
5C 30 0.38 1.10 ≥70 1.524 6.50 0.4
5C 28 0.38 1.20 ≥70 1.524 6.60 0.6
5C 26 0.38 1.30 ≥70 1.524 6.80 0.8
5C 24 0.38 1.40 ≥70 1.524 7.20 1.5
5C 22 0.38 1.60 ≥70 1.524 7.80 2.5
6C 30 0.38 1.10 ≥70 1.524 6.70 0.4
6C 28 0.38 1.20 ≥70 1.524 7.10 0.6
6C 26 0.38 1.30 ≥70 1.524 7.50 0.8
6C 24 0.38 1.40 ≥70 1.524 7.80 1.5

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the different requirement.
