Dongguan Production ABC Pure Copper Conductors Customized Fire Alarm Cable
Dongguan Production ABC Pure Copper Conductors Customized Fire Alarm Cable
Specifications
Brand Name :
Fire Retardant Cable
Model Number :
TH-830149
Certification :
UL, CSA, AWM
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD0.16~0.55 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000,000 meters monthly
Delivery Time :
Around 10 working days
Packaging Details :
915 meters per carton, subject to the customized dimensions of product.
Type :
Customized Cable
Catalogue :
Fire Cable
Feature :
Industrial Control Circuits
Rated :
125C Degree, 600V
Jacket :
Fire Resistant Material
Standard :
100% RoHS Compliant
Description

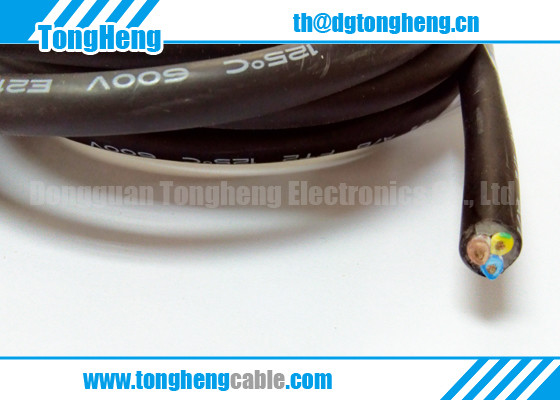

Dongguan Production ABC Pure Copper Conductors Customized Fire Alarm Cable

Customized Cable is the most featured products of Tongheng business. Dongguan Production ABC Pure Copper Conductors Customized Fire Alarm Cable is designed & manufactured strictly following customers requirement. As the professional manufacturer, Tongheng staff engage to create customer the best quality cable. Dongguan Production ABC Pure Copper Conductors Customized Fire Alarm Cable is one of the excellent example. Its remarkable advantage is high purity copper conductors and for fire alarm use purpose.

Here below is the product properties:

  • High purity copper conductors wtih tin coated.
  • Rated Voltage: 600V
  • Rated Temperature: -40C to 125C Degrees
  • Colour coded insulation wires, can be determined by customers.
  • Feature: Fire alarm use purpose
  • Approved style numbers: UL20370 recommended, or to be determined by customers.

Product parameters:

Part Number Specification Conductor Strands Wire Diameter (mm) Overall Diameter (mm)
Ul20361 AWG30 x 2 Cores 11/0.08 0.80 3.40
Ul20362 AWG28 x 2 Cores 16/0.08 0.90 3.70
Ul20363 AWG26 x 2 Cores 26/0.08 1.00 3.80
Ul20364 AWG24 x 2 Cores 41/0.08 1.10 4.00
Ul20365 AWG22 x 2 Cores 65/0.08 1.30 4.40
Ul20366 AWG20 x 2 Cores 104/0.08 1.50 4.80
Ul20367 AWG18 x 2 Cores 164/0.08 1.80 5.40
Ul20368 AWG16 x 2 Cores 265/0.08 2.00 7.60
Ul20369 AWG30 x 2 Cores 11/0.08 0.80 5.30
Ul20370 AWG28 x 2 Cores 16/0.08 0.90 5.50
Ul20371 AWG26 x 2 Cores 26/0.08 1.00 5.70
Ul20372 AWG24 x 2 Cores 41/0.08 1.10 5.90
Ul20373 AWG22 x 2 Cores 65/0.08 1.30 6.30
Ul20374 AWG20 x 2 Cores 104/0.08 1.50 6.80
Ul20375 AWG18 x 2 Cores 164/0.08 1.80 7.40
Ul20376 AWG30 x 2 Cores 11/0.08 0.80 5.50
Ul20377 AWG28 x 2 Cores 16/0.08 0.90 5.70
Ul20378 AWG26 x 2 Cores 26/0.08 1.00 6.00
Ul20379 AWG24 x 2 Cores 41/0.08 1.10 6.30
Ul20380 AWG22 x 2 Cores 65/0.08 1.30 6.70
Ul20381 AWG20 x 2 Cores 104/0.08 1.50 8.20
Ul20382 AWG30 x 2 Cores 11/0.08 0.80 5.80
Ul20383 AWG28 x 2 Cores 16/0.08 0.90 6.10
Ul20384 AWG26 x 2 Cores 26/0.08 1.00 6.20
Ul20385 AWG24 x 2 Cores 41/0.08 1.10 6.70
Ul20386 AWG22 x 2 Cores 65/0.08 1.30 7.20
Ul20387 AWG30 x 2 Cores 11/0.08 0.80 6.20
Ul20388 AWG28 x 2 Cores 16/0.08 0.90 6.50
Ul20389 AWG26 x 2 Cores 26/0.08 1.00 6.80
Ul20390 AWG24 x 2 Cores 41/0.08 1.10 7.10

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us (Contact Us) for customized ones immediately if you have the different requirement.
