Specifications
Brand Name :
H07RN Cable
Model Number :
3x2.50MM²
Certification :
UL, VDE, CCC, CE
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD0.26~0.58 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000,000 meters monthly
Delivery Time :
10 days for ready goods
Packaging Details :
915 meters per carton, subject to the customized dimensions of product.
Category :
Rubber Cable
Insulation :
Ethylene-Propylene Rubber EPDM
Jacket :
Chlorinated Polyethylene CPE
Standard :
100% RoHS Compliant
Rated Voltage :
300V
OEM Service :
Custom Make Available
Description

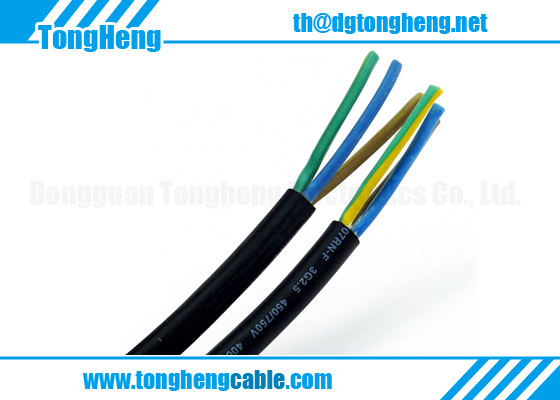

H07RN-F 3x2.50MM²

Rated temperature: 60°C
Rated voltage: 450/750V
Conductor material: bare stranded copper wire
Sectional area: 3.65mm²
Construction: 51x0.25mm
Conductor resistance: 14.6 ohm per km (20°C)
Cores: 3C
Insulation material: Ethylene Proplene Rubber, EPR rubber / EPDM
Average insulation thickness: 0.80mm
Minimum insulation thickness: 0.58mm
Nominal insulation diameter: 3.00mm
Insulation resistance: 2.5 Mohm per 1000 feet.
Color: brown, blue, black, green,
Average jacket thickness: 1.30mm
Minimum jacket thickness: 1.04mm
Nominal jacket outer diameter: 8.60mm
Jacket material: Polychloroprene CPE rubber
Color: black
Tensile strength: 5N/mm² (insulation), 10N/mm² (jacket).
Elongation rate: 200% for insulation, 300% for jacket.
Aging condition: 70°C+/-2°C for 240 hours.
Cold temperature: -40°C
Working temperature: 90°C
Reference standard: DIN VDE 0285-525-2-21
Application: portable electric equipment, able to withstand large external mechanical forces.
VDE approval marking: H07RN-F 2x1.0mm², CE, VDE, RoHS.
100% RoHS compliant.
Ultra flexible, waterproof, UV resistant, fire retardant, oil resistant, ozone resistant.
H07RN-F 3x2.50MM²
H07RN-F 3x2.50MM²

H07RN-F 3x2.50MM²

H07RN-F 3x2.50MM²H07RN-F 3x2.50MM²H07RN-F 3x2.50MM²

H07RN-F 3x2.50MM²H07RN-F 3x2.50MM²H07RN-F 3x2.50MM²
