China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
China Factory Manufactured Flex Spiral Power Cable Cord
Specifications
Brand Name :
Spiral Cable
Model Number :
TH-912530
Certification :
UL, CUL, CSA, AWM, CE
Place of Origin :
Dongguan, China
MOQ :
200 PCS
Price :
USD0.25~0.55 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800,000pcs per month
Delivery Time :
10 days for ready goods
Packaging Details :
200pcs per carton box
Category :
Spiral Power Cord
Feature :
Extra Flexible
Rated Temperature :
90C degrees
Rated Voltage :
300V
Dimensions :
To be customized per request
Standard :
RoHS Compliant
Description

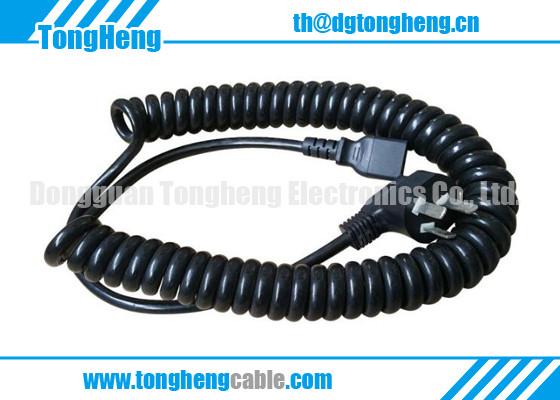

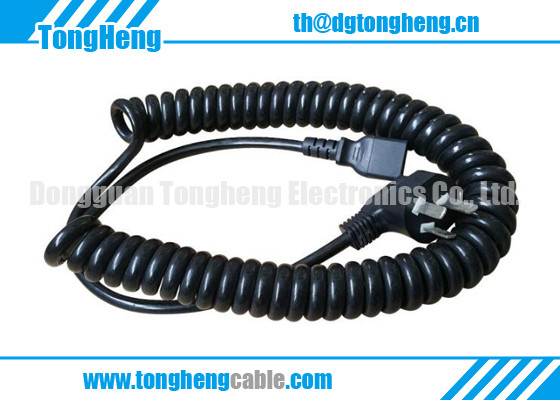

China Factory Manufactured Flex Spiral Power Cable Cord

Manufactured by: China cable factory

Conductor quantity: 2C to 50C

Conductor: oxygen free copper wires

100% RoHS compliant

Product parameters:

Spiral power cord Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
No/mm mm mm % mm mm Ω/KM(20℃)
2C 7/0.100 0.23 0.80 ≥65 0.76 3.80 381.00
2C 7/0.127 0.23 0.90 ≥65 0.76 4.00 239.00
2C 7/0.16 0.23 1.00 ≥65 0.76 4.10 150.00
2C 11/0.16 0.23 1.10 ≥65 0.76 4.20 94.20
2C 17/0.16 0.23 1.30 ≥65 0.76 4.60 59.40
2C 21/0.178 0.23 1.50 ≥65 0.76 5.00 36.70
2C 34/0.178 0.23 1.80 ≥65 0.76 5.60 23.20
2C 26/0.25 0.23 2.00 ≥65 0.76 7.80 14.60
3C 7/0.100 0.23 0.80 ≥65 0.76 4.00 381.00
3C 7/0.127 0.23 0.90 ≥65 0.76 4.20 239.00
3C 7/0.16 0.23 1.00 ≥65 0.76 4.40 150.00
3C 11/0.16 0.23 1.10 ≥65 0.76 4.60 94.20
3C 17/0.16 0.23 1.30 ≥65 0.76 5.20 59.40
3C 21/0.178 0.23 1.50 ≥65 0.76 5.50 36.70
3C 34/0.178 0.23 1.80 ≥65 0.76 6.10 23.20
4C 7/0.100 0.23 0.80 ≥65 0.76 4.20 381.00
4C 7/0.127 0.23 0.90 ≥65 0.76 4.40 239.00
4C 7/0.16 0.23 1.00 ≥65 0.76 4.70 150.00
4C 11/0.16 0.23 1.10 ≥65 0.76 5.10 94.20
4C 17/0.16 0.23 1.30 ≥65 0.76 5.40 59.40
4C 21/0.178 0.23 1.50 ≥65 0.76 5.90 36.70
5C 7/0.100 0.23 0.80 ≥65 0.76 4.40 381.00
5C 7/0.127 0.23 0.90 ≥65 0.76 4.60 239.00
5C 7/0.16 0.23 1.00 ≥65 0.76 4.70 150.00
5C 11/0.16 0.23 1.10 ≥65 0.76 5.10 94.20
5C 17/0.16 0.23 1.30 ≥65 0.76 5.70 59.40
6C 7/0.100 0.23 0.80 ≥65 0.76 4.60 381.00
6C 7/0.127 0.23 0.90 ≥65 0.76 5.00 239.00
6C 7/0.16 0.23 1.00 ≥65 0.76 5.40 150.00
6C 11/0.16 0.23 1.10 ≥65 0.76 5.70 94.20

China Factory Manufactured Flex Spiral Power Cable Cord

China Factory Manufactured Flex Spiral Power Cable Cord

China Factory Manufactured Flex Spiral Power Cable Cord

China Factory Manufactured Flex Spiral Power Cable Cord

China Factory Manufactured Flex Spiral Power Cable Cord

China Factory Manufactured Flex Spiral Power Cable Cord

China Factory Manufactured Flex Spiral Power Cable Cord

China Factory Manufactured Flex Spiral Power Cable Cord

China Factory Manufactured Flex Spiral Power Cable Cord

China Factory Manufactured Flex Spiral Power Cable Cord

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us (Contact Us) for customized ones immediately if you have the different requirement.
