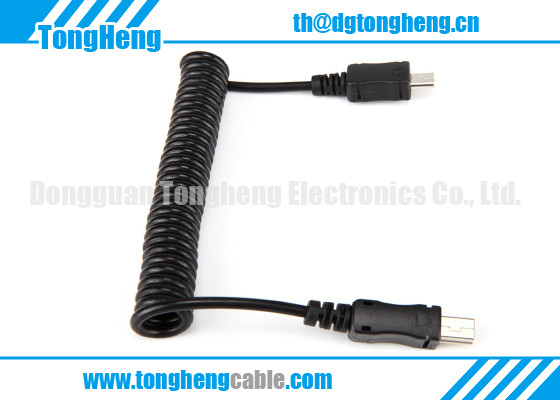

Automotive Engine Data Transfer Spiral Power Cord
Automotive Engine Data Transfer Spiral Power Cord
Specifications
Brand Name :
Spiral Cable
Model Number :
TH-951162
Certification :
UL, CUL, CSA, AWM, CE
Place of Origin :
Dongguan, China
MOQ :
200 PCS
Price :
USD0.15~0.33 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800,000pcs per month
Delivery Time :
10 days for ready goods
Packaging Details :
200pcs per carton box
Type :
Spiral Power Cord
Feature :
Moulded USB Connectors
Rated :
80C degree, 300V
Conductor :
Pure Copper Wires
Jacket :
Quality Polyurethane PUR
Standard :
100% RoHS Compliant
Description

Automotive Engine Data Transfer Spiral Power Cord

Spiral Power Cable is the featured products of Tongheng business.

As the professional manufacturer, we make the raw straight cable, process the spiral coiling, and the assembling job as well.

Here below is the product properties:

Application: Automotive engine data transfer.

Insulation: AWM complied & verified materials.

Sheath: quality polyurethane PUR

Standard: 100% RoHS compliant.

Spec to be customized per customers requirement.

Product parameters:

Spiral Power Cord Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
No/mm mm mm % mm mm Ω/KM(20℃)
2C 7/0.100 0.76 1.90 ≥65 0.76 6.00 381.00
2C 7/0.127 0.76 2.00 ≥65 0.76 6.30 239.00
2C 7/0.16 0.76 2.10 ≥65 0.76 6.40 150.00
2C 11/0.16 0.76 2.20 ≥65 0.76 6.60 94.20
2C 17/0.16 0.76 2.40 ≥65 0.76 7.00 59.40
2C 21/0.178 0.76 2.50 ≥65 0.76 7.40 36.70
2C 34/0.178 0.76 2.80 ≥65 0.76 8.00 23.20
2C 26/0.25 0.76 3.10 ≥65 0.76 10.20 14.60
3C 7/0.100 0.76 1.90 ≥65 0.76 7.90 381.00
3C 7/0.127 0.76 2.00 ≥65 0.76 8.10 239.00
3C 7/0.16 0.76 2.10 ≥65 0.76 8.30 150.00
3C 11/0.16 0.76 2.20 ≥65 0.76 8.50 94.20
3C 17/0.16 0.76 2.40 ≥65 0.76 8.90 59.40
3C 21/0.178 0.76 2.50 ≥65 0.76 9.40 36.70
3C 34/0.178 0.76 2.80 ≥65 0.76 10.00 23.20
4C 7/0.100 0.76 1.90 ≥65 0.76 8.10 381.00
4C 7/0.127 0.76 2.00 ≥65 0.76 8.30 239.00
4C 7/0.16 0.76 2.10 ≥65 0.76 8.60 150.00
4C 11/0.16 0.76 2.20 ≥65 0.76 8.90 94.20
4C 17/0.16 0.76 2.40 ≥65 0.76 9.30 59.40
4C 21/0.178 0.76 2.50 ≥65 0.76 9.80 36.70
5C 7/0.100 0.76 1.90 ≥65 0.76 8.40 381.00
5C 7/0.127 0.76 2.00 ≥65 0.76 8.70 239.00
5C 7/0.16 0.76 2.10 ≥65 0.76 8.80 150.00
5C 11/0.16 0.76 2.20 ≥65 0.76 9.20 94.20
5C 17/0.16 0.76 2.40 ≥65 0.76 9.80 59.40
6C 7/0.100 0.76 1.90 ≥65 0.76 8.80 381.00
6C 7/0.127 0.76 2.00 ≥65 0.76 9.10 239.00
6C 7/0.16 0.76 2.10 ≥65 0.76 9.40 150.00
6C 11/0.16 0.76 2.20 ≥65 0.76 9.70 94.20

Automotive Engine Data Transfer Spiral Power Cord

Automotive Engine Data Transfer Spiral Power Cord

Automotive Engine Data Transfer Spiral Power Cord

Automotive Engine Data Transfer Spiral Power Cord

Automotive Engine Data Transfer Spiral Power Cord

Automotive Engine Data Transfer Spiral Power Cord

Automotive Engine Data Transfer Spiral Power Cord

Automotive Engine Data Transfer Spiral Power Cord

Automotive Engine Data Transfer Spiral Power Cord

Automotive Engine Data Transfer Spiral Power Cord

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the different requirement.
