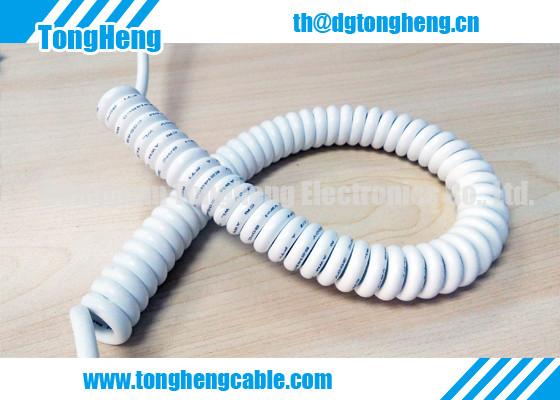

Human-machine Interface TPU Enforced Coil Control Cable
Human-machine Interface TPU Enforced Coil Control Cable
Specifications
Brand Name :
Spiral Cable
Model Number :
spiral-cable-014
Certification :
UL, CUL, CSA, AWM, CE
Place of Origin :
Dongguan, China
MOQ :
200 PCS
Price :
USD0.14~0.60 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800,000pcs per month
Delivery Time :
10 days for ready goods
Packaging Details :
200pcs per carton box
Cable Type :
TPU Coil Cable
Application :
Human-machine Interface use
Rated Temperature :
80 degree
Rated Voltage :
300V
Dimensions :
To be customized per request
Standard :
RoHS Compliant
Conductor Material :
Pure copper wire strands
Jacket Material :
Thermoplastic TPU
Description

Human-machine Interface TPU Enforced Coil Control Cable

Manufacturer: Dongguan Tongheng Electronics Co., Ltd.

Uniform insulation thickness.

Extra flex and long flex life.

Custom make per customer request.

Product parameters:

Coiled Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
AWG mm mm % mm mm Ω/KM(20℃)
2C 30 0.23 0.80 ≥65 0.89 3.80 381.00
2C 28 0.23 0.90 ≥65 0.89 4.10 239.00
2C 26 0.23 1.00 ≥65 0.89 4.30 150.00
2C 24 0.23 1.10 ≥65 0.89 4.40 94.20
2C 22 0.23 1.30 ≥65 0.89 4.80 59.40
2C 20 0.23 1.50 ≥65 0.89 5.20 36.70
2C 18 0.23 1.80 ≥65 0.89 5.80 23.20
2C 16 0.23 2.00 ≥65 0.89 8.00 14.60
3C 30 0.23 0.80 ≥65 0.89 5.70 381.00
3C 28 0.23 0.90 ≥65 0.89 5.90 239.00
3C 26 0.23 1.00 ≥65 0.89 6.10 150.00
3C 24 0.23 1.10 ≥65 0.89 6.30 94.20
3C 22 0.23 1.30 ≥65 0.89 6.70 59.40
3C 20 0.23 1.50 ≥65 0.89 7.20 36.70
3C 18 0.23 1.80 ≥65 0.89 7.80 23.20
4C 30 0.23 0.80 ≥65 0.89 5.90 381.00
4C 28 0.23 0.90 ≥65 0.89 6.10 239.00
4C 26 0.23 1.00 ≥65 0.89 6.40 150.00
4C 24 0.23 1.10 ≥65 0.89 6.70 94.20
4C 22 0.23 1.30 ≥65 0.89 7.10 59.40
4C 20 0.23 1.50 ≥65 0.89 7.60 36.70
5C 30 0.23 0.80 ≥65 0.89 6.20 381.00
5C 28 0.23 0.90 ≥65 0.89 6.50 239.00
5C 26 0.23 1.00 ≥65 0.89 6.60 150.00
5C 24 0.23 1.10 ≥65 0.89 7.00 94.20
5C 22 0.23 1.30 ≥65 0.89 7.60 59.40
6C 30 0.23 0.80 ≥65 0.89 6.60 381.00
6C 28 0.23 0.90 ≥65 0.89 6.90 239.00
6C 26 0.23 1.00 ≥65 0.89 7.20 150.00
6C 24 0.23 1.10 ≥65 0.89 7.50 94.20

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the different requirement.
