Portable Power Pack Electric Hydraulic Pump 10000 Psi , 700 Bar Rated Pressure
Portable Power Pack Electric Hydraulic Pump 10000 Psi , 700 Bar Rated Pressure
Portable Power Pack Electric Hydraulic Pump 10000 Psi , 700 Bar Rated Pressure
Portable Power Pack Electric Hydraulic Pump 10000 Psi , 700 Bar Rated Pressure
Specifications
Brand Name :
SHENHONG
Model Number :
ZCB-700B-2
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000sets per month
Delivery Time :
7 days after payment
Packaging Details :
Standard export wooden case
Type :
Electric Hydraulic pump
Oil Tank :
7L
Feature :
sing acting
Voltage :
220V,0.75KW
Rated Pressure :
700bar
Weight :
28kg
Description

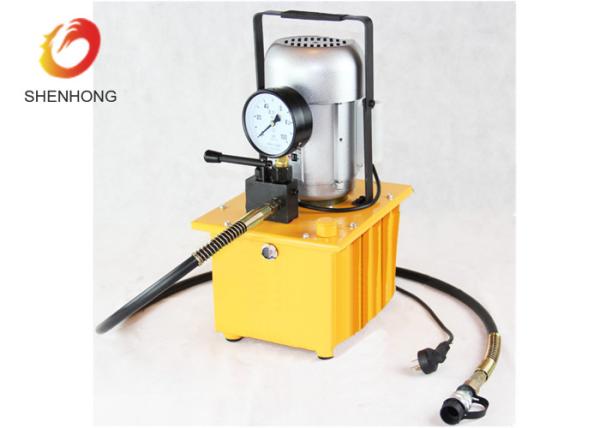

Portable Power Pack Electric Hydraulic Pump 10000 psi, 700bar

Use and Characteristics

Double speed high performance pumps, built in 10000Psi pressure overflow valve, can ensure the maximum

flow when maximum pressure.

Standard of can see an oil window, observe the location of oil, with the normal operation that assures machine;

Equipped with low noise pure aluminum alloy enclosure motor and light weight, convenient to move.

Can choose to equip long range wire to control a switch, easy to long-distance to leave an operate

Use the following Suggestions 200 T of hydraulic cylinder

Feature:

1. High and low speed two stage for quick oil output. Turbine oil absorption could ensure max.Effective oil volume.

2. Pressure safety valve over pressure unit could avoid over pressure damage. At 700kg/cm2,automatically pressure release.

3. High pressure is for driving piston and low pressure is for piston reset (CTE-25AD).

4. Oil pipe fitted with quick coupling could be ordered at any length.

5. Oil pipe coupling fitted with PT 3/8” thread.

Data Sheet

Rated Output 750W
Motor Voltage 220V/380V
Rated Pressure High 70Mpa,Low 7Mpa
Capacity

low pressure 5L/min

high pressure 0.9L/min
Oil reservoil capacity 7L
Frequency 50HZ
Size 35*27*51
Note double valve with pedal switch and hand switch

Portable Power Pack Electric Hydraulic Pump 10000 Psi , 700 Bar Rated Pressure

Warranty
We offer 1 year warranty for this product. If the product is out of working order under proper usage per
instructions manual within the warranty period, please contact us to obtain a merchandise return code and
shipping instruction. Then, send it back at your shipping costs.
After receiving your return item, it will take 7 days for evaluation and investigation. A brand new
replacement unit will be sent to you at our shipping costs if it meets our warranty requirements.SHIPPING & DELIVERY
We will ship out the unit to you by EMS or FedEx or DHLorTNTorUPS. It will decided by seller according to your location.(EMS Service Only for Russian Customers)
We will ship out the unit to the Express company first, it will take about 2-3 days, and then express company will deal with the package, so you can check the tracking number online after about 4 days. Please note this.
