3 Ton Petrol Gas Engine Powered Winch 1 Year Warranty For Power Construction
3 Ton Petrol Gas Engine Powered Winch 1 Year Warranty For Power Construction
3 Ton Petrol Gas Engine Powered Winch 1 Year Warranty For Power Construction
3 Ton Petrol Gas Engine Powered Winch 1 Year Warranty For Power Construction
Specifications
Brand Name :
Shenhong
Model Number :
JJM3Q
Certification :
ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 set
Price :
get latest price
Supply Ability :
500 Set/Sets per Month
Delivery Time :
10 days after the deposit
Packaging Details :
standard export wooden case
Power Source :
gasoline engine
Application :
power construction
Usage :
wire rope pulling
Capacity(KN) :
30
weight(kg) :
110
Warranty :
1 year
Description

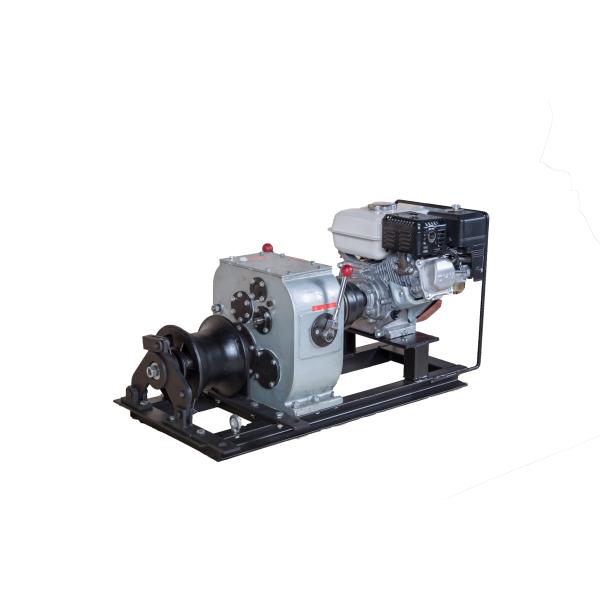

3 Ton Petrol Engine Powered Winch For Sale With GX160 Honda engine

Application

3 Ton Petrol Engine Powered Winch For Sale With GX160 Honda engine is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

Technical Data

Model Type Engine Power Gear Pulling Speed(m/min) Line Pull(Ton)
JJM3-Q Honda Petrol engine 6HP Slow 4 3
Quick 7 1.8
Reverse 3.5 '-

GX160 Honda Engine

1. Brand: Honda

2. Maximum output power: 5.5PS / 3600rpm

3. Rated output power: 4.8PS / 3600rpm

4. Maximum torque: 1.1kg m / 2500rpm

5. Single-cylinder , four-stroke , forced air cooling

6. Cylinder (mm): 68 × 45

7. Displacement (ml): 163

8. Direction of rotation: counterclockwise (for output shaft)

9. Carburetor type: Tap butterfly style

10. Ignition: transistor magnet ignition (non-contact)

11. Spark plug ID: NGK: BPR6ES

12. Starting method: recoil starter

13. Governor type: centrifugal heavy hammer

14. Air filter types: semi-dry / warm style / double type

15. Fuel tank capacity: 0.6L

16. Net weight (Kg): 15.0 (S-TYPE)

17. Dimensions (length X width X height) (mm):312X362X335 (S-TYPE)


3 Ton Petrol Gas Engine Powered Winch 1 Year Warranty For Power Construction

Please tell us the following information in your enquiry:

1. Engine Power ?

2. Pulling Speed(m/min) ?

3. Pulling capacity?

4. Quantity?

we'll give you a good price after confirming the above info.

Welcome to contact us by phone or e-mail, if you are interesting in our products.
