2 Ton Overhead Cable Pulling Clamp Grip Wire Grip For 4 - 22 Mm Cable
2 Ton Overhead Cable Pulling Clamp Grip Wire Grip For 4 - 22 Mm Cable
2 Ton Overhead Cable Pulling Clamp Grip Wire Grip For 4 - 22 Mm Cable
2 Ton Overhead Cable Pulling Clamp Grip Wire Grip For 4 - 22 Mm Cable
Specifications
Brand Name :
SHENHONG
Model Number :
S-3000
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
7 days after payment
Packaging Details :
carton
Rated load(KN) :
20
Weight(kg) :
1.3
Cable :
4-22mm
Material :
Alloy Steel
Warranty :
1 year
Name :
2 Ton Wire Grip Come Along Cable Pulling Clamp
Description

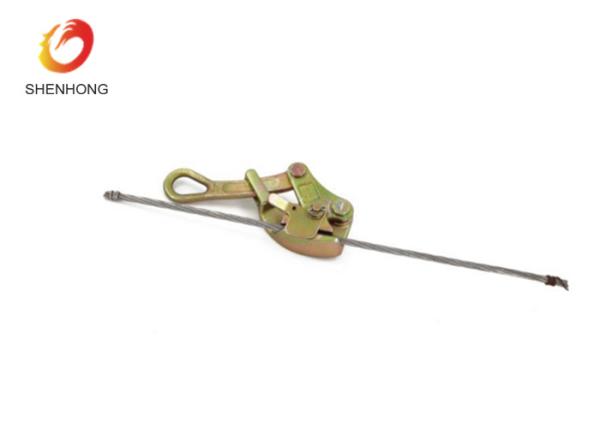

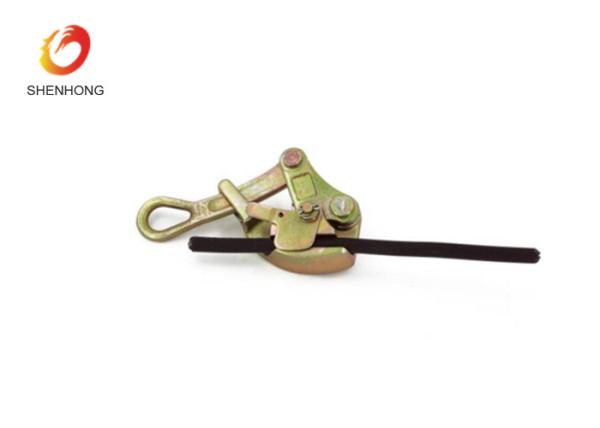

2 Ton Overhead Cable Pulling Clamp Grip Wire Grip for 4-22mm Cable

Application

It is used of high-quality alloy steel forging forming, jaws are made by a special heat treatment.The jaws are partially equipped with a safety device to prevent jumpers.It is used for steel wire, ACSR or insulated wire.It is universal.

Note:

1. S-1000C apply to steel rope and steel stranded wire;

2. S-2000CL apply to copper wire, ACSR or insulated wire;

3. S-3000CL apply to copper wire, ACSR or insulated wire.

Technical Data

Model
Rated load
(KN)
Damage load
(KN)
Apply to outer diameter(mm)
Maximum opening
(mm)
0.5TON
10
20
2.6-13
13
1TON
20
40
4-22
22
2TON
30
60
16-32
32
3TON
40
80
20-35
35

2 Ton Overhead Cable Pulling Clamp Grip Wire Grip For 4 - 22 Mm Cable

2 Ton Overhead Cable Pulling Clamp Grip Wire Grip For 4 - 22 Mm Cable

Our Factory

This is our factory's inventory chart and the picture of taking part in the exhibition.Welcome to visit our factory and make good relationship with you.

2 Ton Overhead Cable Pulling Clamp Grip Wire Grip For 4 - 22 Mm Cable
