Red Color Cable Drum Trailer For Transporting Cable Reels With Air Brake System
Red Color Cable Drum Trailer For Transporting Cable Reels With Air Brake System
Red Color Cable Drum Trailer For Transporting Cable Reels With Air Brake System
Red Color Cable Drum Trailer For Transporting Cable Reels With Air Brake System
Specifications
Brand Name :
SHENGHONG
Model Number :
LZ-3
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
15-20 days after payment
Packaging Details :
export standard packing
Product Name :
3 Ton Cable Drum Trailer
Load Capacity :
3T
Type :
cable reel trailer
Application :
Underground Cable Installation
Usage :
Transport cable drums
Item :
Cable Carriage Vehicle
Description

Red Color Cable Drum Trailer For Transporting Cable Reels With Air Brake System

Introduction

This product is the new generation of cable trailer, which integrates the function of drum hauling, cable pulling, cable pushing, guiding and tight into a whole. Equipped with automatic braking device, it can brake effectively only by moving clutch. With compact design and flexible steering function, it can be operated under narrow work site. Simple operation and easy maintenance, it is a necessary tool for electric power construction.

Application

cable drum trailer used for cable drum hauling and cable pulling-pushing. Adopt mechanical lifting method, simple operation, stable and durable. Thetraction tire on the font of cable trailer can change angle at random and easy to move. Equipped with damping device, the stability of trailer was increased greatly. Remarks: the trailer can be transported by container after disassembly.

Technical Data

Model Max coil diameter Wide length Wide High
(T) (kg) mm mm (mm) (mm) (mm)
LZ-3T 3T 900 2300 1250 3800 2300 2200
LZ -5T 5T 1500 2800 1450 4000 2600 2500
LZ -8T 8T 2300 3300 1750 4300 3200 2700
LZ -10T 10T 2800 3500 1850 4300 3400

2800

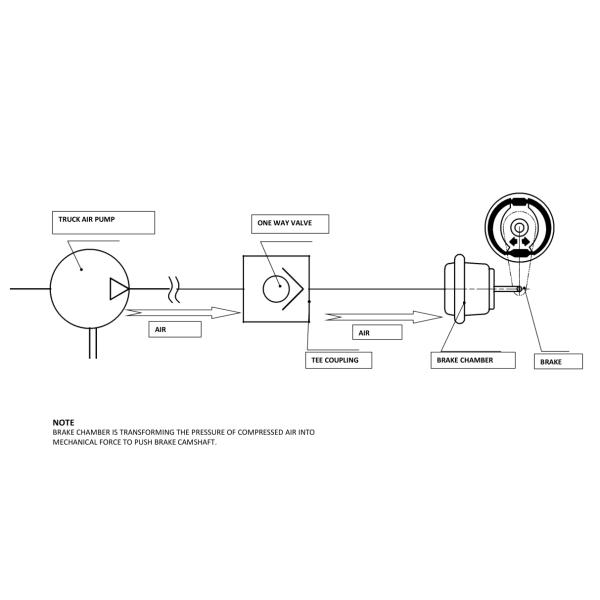

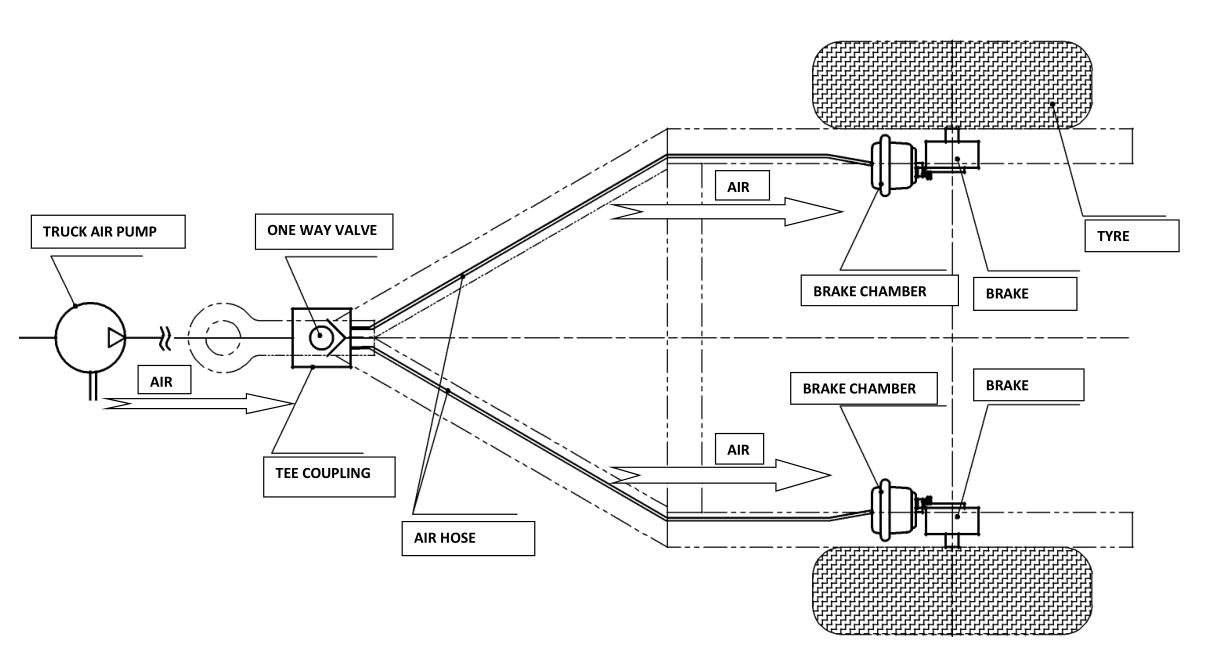

Air brake system

Red Color Cable Drum Trailer For Transporting Cable Reels With Air Brake System

Red Color Cable Drum Trailer For Transporting Cable Reels With Air Brake System
