Hydraulic Electric Punch Tool Hole Overhead Line Construction Tools Puncher For Cu / Al Plate
Hydraulic Electric Punch Tool Hole Overhead Line Construction Tools Puncher For Cu / Al Plate
Hydraulic Electric Punch Tool Hole Overhead Line Construction Tools Puncher For Cu / Al Plate
Hydraulic Electric Punch Tool Hole Overhead Line Construction Tools Puncher For Cu / Al Plate
Specifications
Brand Name :
SHENGHONG
Model Number :
CH-70
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000sets/month
Delivery Time :
10 days after payment
Packaging Details :
wood case
Product :
CH-70 Hydraulic Electric Punch Tool Hole Puncher for Cu/Al plate
Punching force :
35T
Max thickness of sheet :
12mm of copper sheet/ 10 mm of metal sheet
Depth of throat :
110mm
Height :
460mm
Accessories :
3/8"(Φ10.5), 1/2"(Φ13.8), 5/8"(Φ17), 3/4"(Φ20.5)mm
Description

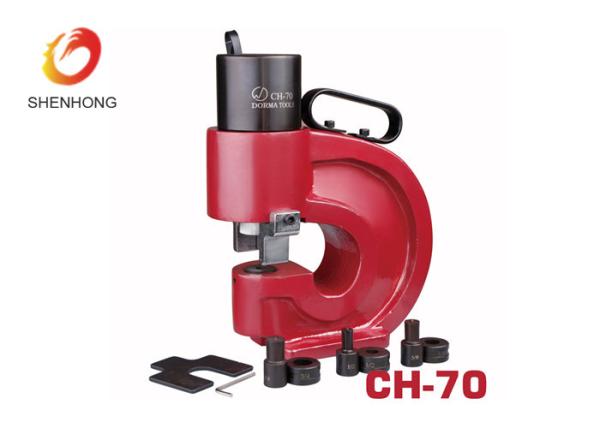

CH-70 Hydraulic Electric Punch Tool Hole Puncher for Cu/Al plate

Product Description

CH -60/70/80 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

Feature

Split-unit hydraulic hole digger is specialized for angle steel,flat steel, brass plate and other metal material's hole digging ,especially for electrally for electric building and other industry's field operation

It can also be allocated with any kinds of the pump, i.e. hand-operated pump, foot-operated pump, electric pump

Technical Reference:

Item No. Punching capacity Output Stroke Weight Standard accessories Package
CH-70

12mm of copper sheet

10mm of metal sheet

 35ton 110mm 34.5kg punching die:3/8"(dia 10.5),1/2"(dia 13.8),5/8"(dia17),3/4"(dia20.5)mm Steel case
