Durable Conductor Stringing Machine , Hydraulic Cable Puller Machine Stringing Of Conductors
Durable Conductor Stringing Machine , Hydraulic Cable Puller Machine Stringing Of Conductors
Durable Conductor Stringing Machine , Hydraulic Cable Puller Machine Stringing Of Conductors
Durable Conductor Stringing Machine , Hydraulic Cable Puller Machine Stringing Of Conductors
Specifications
Brand Name :
Shenhong
Model Number :
SA-YQ250
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
US $35000~60000
Supply Ability :
5 Set/Sets per Month
Delivery Time :
50 work days after deposit
Packaging Details :
Export case
Max linepull :
250KN
Continous line :
200KN
Maximum Through Connector Diameter (mm) :
80
Weight :
9000kg
Engine power/Speed :
261/2100
Number of Bullwheel Grooves :
10
Max suitable steelrope diameter :
32mm
Description

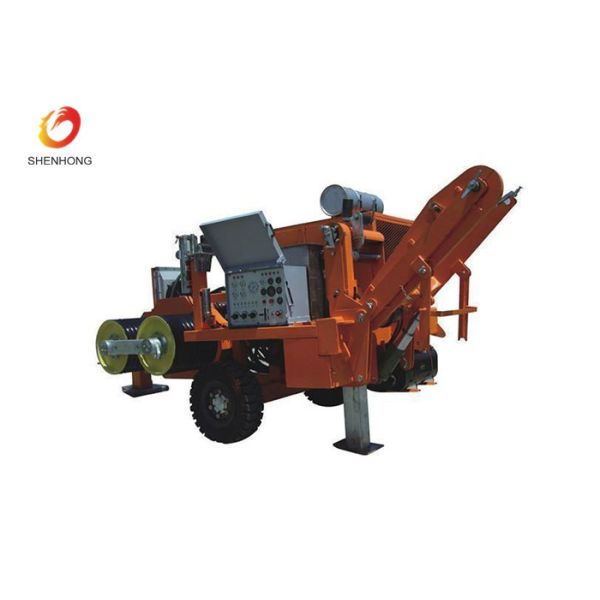

Durable Conductor Stringing Machine , Hydraulic Cable Puller Machine Stringing Of Conductors

This SA-YQ250 Hydraulic Puller is equipped with the steel wire rope automatically winding device, which can arrange the rope by itself and also make loading and unloading convenient. In use of the hydraulic type rope clamping device, the steel wire rope reel can be replaced easily.

With automatic braking function, our puller can well guarantee its safe operation, in case of the hydraulic failure caused by the sudden flameout of motor or other reasons.

Furthermore, our SA-YQ250 Hydraulic Puller possesses the steplessly adjustable traction force and pulling speed. The pull in the rope can be visually displayed on the line pull gauge. Our product also comes with the overload automatic protection function, and the maximum traction force can be set in advance.

Essential Parameters

Model SA-YQ250 Hydraulic Puller
Maximum Traction Force (kN) 250
Continuous Tractive Effort (kN) 200
Maximum Pulling Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ820
Number of Bullwheel Grooves 10
Maximum Diameter of Suitable Steel Rope (mm) Φ32
Maximum Through Connector Diameter (mm) Φ80
Engine Power / Speed (kW/rpm) 261/2100
Dimensions (mm) 5750× 2350× 2570
Weight (kg) 9000

Configurations

Engine Cummins (USA) water-cooled diesel engine
Main Variable Displacement Pump, Main Motor Rexroth (BOSCH)
Reducer RR (Italian)
Main Hydraulic Valves Rexroth (BOSCH)
Radiator AKG
Hydraulic Instrument
Suitable Drum Model GSP1600 (Item number: 07125D)

Durable Conductor Stringing Machine , Hydraulic Cable Puller Machine Stringing Of Conductors
