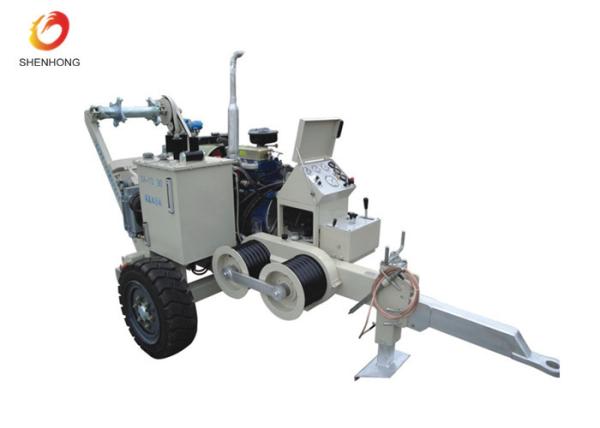

Stringing Equipment 30KN Hydraulic Cable Puller With Diesel Engine For OPGW Project
Stringing Equipment 30KN Hydraulic Cable Puller With Diesel Engine For OPGW Project
Stringing Equipment 30KN Hydraulic Cable Puller With Diesel Engine For OPGW Project
Stringing Equipment 30KN Hydraulic Cable Puller With Diesel Engine For OPGW Project
Specifications
Brand Name :
Shenhong
Model Number :
SA-YQ30
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
US $35000~60000
Supply Ability :
200 Set/Sets per Month
Delivery Time :
20 work days after deposit
Packaging Details :
Export case
Max linepull :
30KN
Continous line :
25KN
Maximum Through Connector Diameter (mm) :
40
Weight :
1500kg
Engine power/Speed :
31KW/2200rpm
Number of Bullwheel Grooves :
7
Max suitable steelrope diameter :
13mm
Description

Stringing Equipment 30KN Hydraulic Cable Puller With Diesel Engine For OPGW Project

This SA-YQ30 Hydraulic Puller possesses the steplessly adjustable pulling speed and traction force. What's more, the pull in the rope can be visually displayed on the line pull gauge. This equipment also comes with an overload automatic protection system. The maximum traction force for conductor stringing operation can be preset.

The spring applied hydraulically released brake can act automatically. Thus, the secure operation of our hydraulic puller can be well ensured, when the motor suddenly turns off or other reasons cause the hydraulic failure.

Furthermore, our SA-YQ30 Hydraulic Puller is equipped with the steel wire rope automatically winding device, which can automatically arrange the rope and also make loading and unloading convenient.

Technical Parameter

Model SA-YQ30 Hydraulic Puller
Maximum Traction Force (kN) 30
Continuous Tractive Effort (kN) 25
Maximum Pulling Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ300
Number of Bullwheel Grooves 7
Maximum Diameter of Suitable Steel Rope (mm) Φ13
Maximum Through Connector Diameter (mm) Φ40
Engine Power / Speed (kW/rpm) 31/2200
Dimensions (mm) 3200× 1600× 2000
Weight (kg) 1500

Main Components

Engine Chinese famous diesel engine
Radiator AKG
Hydraulic Instrument
Main Pump Sauer Danfoss pump
Main Motor Italian SAI technique
Suitable Drum Model GSP950 drum with its item number of 07125A

Stringing Equipment 30KN Hydraulic Cable Puller With Diesel Engine For OPGW Project
