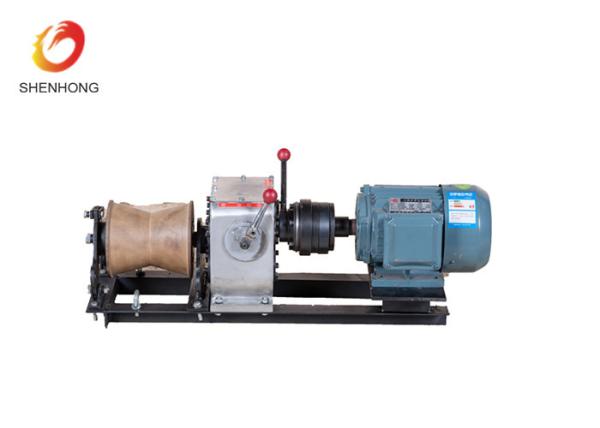

3T 5T Electric Gas Engine Powered Winch For Cable Pulling In Line Construction
3T 5T Electric Gas Engine Powered Winch For Cable Pulling In Line Construction
3T 5T Electric Gas Engine Powered Winch For Cable Pulling In Line Construction
3T 5T Electric Gas Engine Powered Winch For Cable Pulling In Line Construction
Specifications
Brand Name :
SHENHONG
Model Number :
09121D
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
negotiation
Supply Ability :
300 set/sets per month
Delivery Time :
7-10 days after payment
Packaging Details :
standard export wooden case
Warranty :
1 year
Engine :
electric engine
Capacity :
30/50KN
Type :
electric winch
Usage :
for cable pulling in line construction
Product Name :
3T 5T Electric Winch
Description

3T 5T Electric Gas Engine Powered Winch For Cable Pulling In Line Construction

This electric winch can be widely found in the line construction, which is mainly used for erecting pylon and sagging operation. Its power is 380V AC. Moreover, this product requires a grounding device. It is not adaptable to the rainy days.

Technical Parameters

Item Number 09121D 09123D
Model of Motor Y100L-2 Y112M-2
Power of Motor (kW) 3 4
Rotational Speed (rpm) 2880 2890
Traction Force (kN ) / Pulling Speed (m/min) Quick 10/15.3 15/12.3
Medium 15/6.1 30/4.9
Slow 30/3.9 50/3.1
Reverse -/4.4 -/3.5
Diameter of Drum Groove (mm) Φ160 Φ160
Dimension (mm) 810×550×510 830×550×510
Weight (kg) 122 140

Use: Applied in stringing projects and erecting towers.

Feature:
1.The power is AC380V
2.Used with grounding device, rainy day can’t be used.

3T 5T Electric Gas Engine Powered Winch For Cable Pulling In Line Construction
