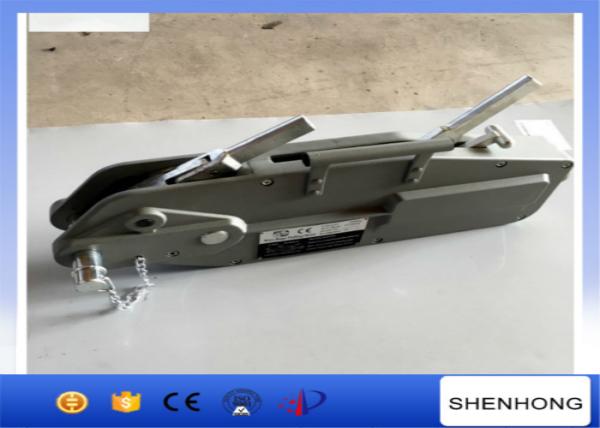

Manual Wire Rope Pulling Hoist 3.2 Ton With 20 Meter Steel Wire Rope​

1. Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.
2. All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3. Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
4. The hoist has low maintenance requirements and is easy service.
5. Overload protection ensures high personal safety when in operation.
6. Specially built-in shear pins can be replaced without removing the load.

Feature

1. Overload protection system ensures safety in operation

2. Tube handle length is adjustable, so it is very convenient to regulate the hand force according to the lifting force.

3. Widely used for lifting, pulling, tensioning, and tightening in many areas

4. Easy operation, convenient maintenance

5. The static test is 4 times of capacity, and running test is 1.5 times of capacity.

Specifications

Drawing

INSTRUCTIONS

1. Push ahead the handle of pincers C,C is the position when you hear crack sound. The mouth of the pincers will be opened for the wire rope.

2. Fix the machine, adjust the length of the wire rope, press the handle C backward till the mouth of pincers bites the wire rope.

3. Insert the bar in handle A , and swing it front and backward .The wire rope will move ahead accordingly.I

nsert the bar in handle B, and swing it front and backward . The wire rope will move backward and come come out of the nouth of pincers.

4. Make sure of the condition that wire rope is under no pulling force and repeat the first step.

5. Open the mouth of mouth of thr pincers , and take out the wire rope .and then press handle C backward.

6. Finally, put the machine back into the box for the next time
