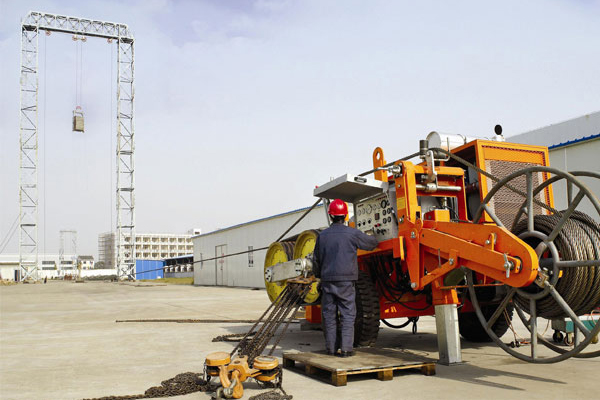

Four Conductor Cable Tensioner Bull Wheel With Wearproof MC Nylon Linin SA-YZ4×50

Uses : it’s used for stringing various conductors and earth wires.suitable for stringing two bundle conductors or four bundle conductors

Feature:
Bull wheel with wearproof MC nylon lining segments.
Infinitely variable tension control and constant tension conductor stringing .
Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.
Attached four sets of hydraulic power output interface to connect hydraulic conductor reel stand .

Main component
Engine :Cummins(USA) water cooled diesel engine .
2 .Main pump/motor : Rexroth (BOSCH)
Main hydraulic valve : Rexroth (BOSCH)
Reducer : RR (Italian)

Essential parameter
Maximum Tension(kN):4×50 or 2×100
Continuous Tension(kN):4×45 or 2×90
Maximum speed (km/h):5
Bull wheel bottom of groove diameter(mm):Φ1600
Number of grooves:4×5
Maximum pull-back (kN):4×50 or 2×100
Maximum pull-back speed(km/h):4×1.5
Maximum suitable conductor diameter (mm): Φ42.5
Engine power /speed (kW/rpm):78/2500
Dimensions (mm): 5350×2350×2900
Weight(kg):12000

Data Sheet

Features:

- Closed hydraulic circuit, infinitely variable pull / tension force control in both directions.

- The max. tension / pull back force for conductor stringing operation can be preset, the tension /pull back force can be read from the tension gauge of machine.

- Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure line safety

- Automatic overpull protection system.

- Hydraulic oil cooling system. Hydraulic front jack.

- Bull wheels lined with wear proof MC nylon lining segment.

- Optional 4 hydraulic power outlets to control 4 sets of hydraulic reel stands.

- Mounted on trailer with rigid axle for towing at max. speed of 15 km / h.
