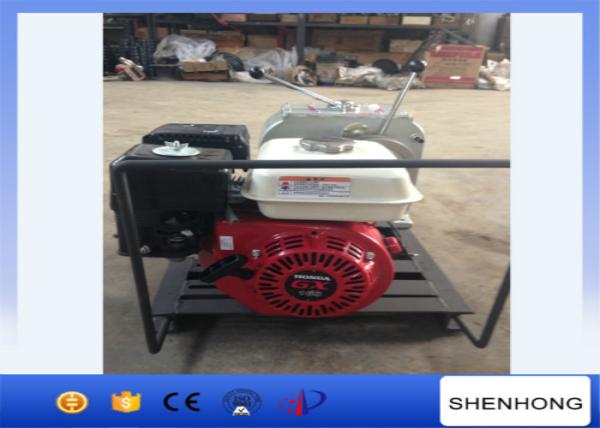

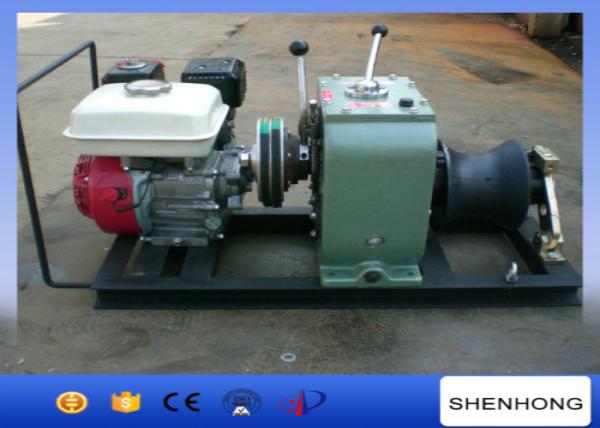

High Versatility 3T Cable Gas Powered Winch With Honda GX160 Gasoline Engine
High Versatility 3T Cable Gas Powered Winch With Honda GX160 Gasoline Engine
High Versatility 3T Cable Gas Powered Winch With Honda GX160 Gasoline Engine
High Versatility 3T Cable Gas Powered Winch With Honda GX160 Gasoline Engine
Specifications
Brand Name :
SHENGHONG
Model Number :
JJM3Q
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1set
Price :
USD1000-1200
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
10 days after payment
Packaging Details :
plywood case
Product Name :
3T Gasoline Cable Winch For Sale With Honda GX160 Gasoline Engine
Type :
gasoline cable winch
Item :
3 Ton Winch
Engine :
HONDA Gasoline engine
Power :
5.5HP
Application :
Cable Pulling
Weight :
100kg
Dimension :
860x450x500mm
Description

High Versatility 3T Cable Gas Powered Winch With Honda GX160 Gasoline Engine​

Application

It is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

Brief introduction of engine powered winch

Electric winch is powered by motor. The power is input into the third level enclosed gear reduction box by flexible coupling to lift weight or pull by wire rope and to drive the drum from Low speed shaft end steel key. We use common motor when we need to lift or pull small weight. Conversely, lifting motor is adapted. The common motor can start directly. But the lifting motor starts slowly and stably by cam switch and resistanceadjusting.The brake system adopts electromagneticbraking or hydraulic braking.

Work principle engine powered winch

The winch transforms electric energy into mechanical energy through the motor1, which is rotor of the motor moves, outputs, and then through the brake 2, and the reducer 3 reduces speed to rotate the reel 4. The reel winds the wire rope and passes through pulley block to make the hook lift the load Q, and transforms mechanical energy into mechanical work finishing transportation, load and unload of heavy weights.

Features of engine powered winch

1. High versatility

2. Compactstructure

3. Smallvolume, lightweight, convenience in using and transferring

4. Driving stably

5. Very light noise

6. With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.

7. Adjustable lifting or pulling speed for different usage environment.

Technical Data

Model Type Engine Power Gear Pulling Speed(m/min) Line Pull(Ton)
JJM3-Q Honda Petrol engine 5.5HP Slow 4 3
Quick 7 1.8
Reverse 3.5

High Versatility 3T Cable Gas Powered Winch With Honda GX160 Gasoline Engine
