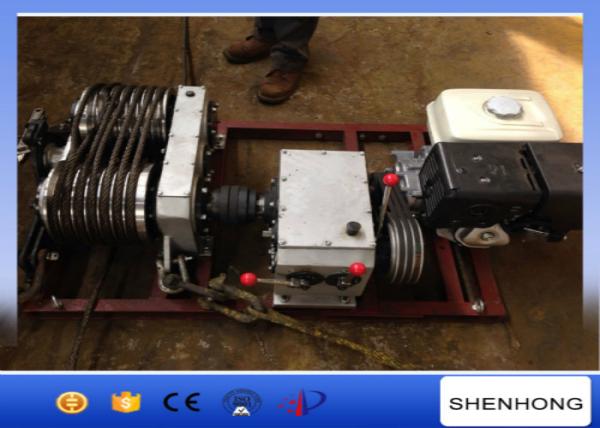

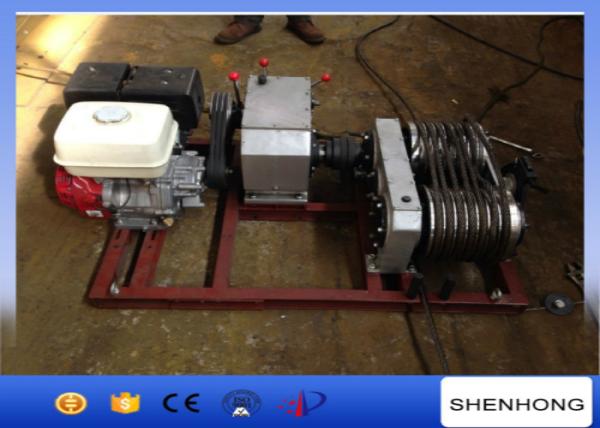

13HP Double Drum Electric Cable Pulling Winch Dual - Bull Wheel Powered Winch
13HP Double Drum Electric Cable Pulling Winch Dual - Bull Wheel Powered Winch
13HP Double Drum Electric Cable Pulling Winch Dual - Bull Wheel Powered Winch
13HP Double Drum Electric Cable Pulling Winch Dual - Bull Wheel Powered Winch
Specifications
Brand Name :
SHENGHONG
Model Number :
JJM-5SQ
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1set
Price :
USD2000-3000
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
15 days after deposite
Packaging Details :
Plywood case
Selling Point :
Double Capstan Winch
Engine :
Honda GX390
Power :
13HP
Weight :
300kg
Capstan :
Double Capstan
Name :
5 Ton Double Drum Gas Engine Powered Winch
Description

13HP Double Drum Electric Cable Pulling Winch Dual - Bull Wheel Powered Winch​

Quick details

1. Transimission line stringing tools

2. Dual-bull wheel powered winch

3. Groove number 7

4. Pull force 50kn

5. weight: 300kg


Characteristics
1. This machine uses diesel or gasoline engine as power, especially for the
wild mountain region of the traction power supply without lifting. In the case of
power supply, it can also use the motor as the driving force.
2. The machine structure is solid, heavy, traction, stable performance, high
safety factor. The machine detachable transport, easy to complex areas of
human handling. Maintenance and overhaul convenient, simple operation.
3. This machine is four lifting gear, according to weight lifting, choose a
different traction speed, thereby improving efficiency.
4.This machine has locking brake system.which can effectively prevent double
traction wheels reversed, to ensure safety.

Data sheet

Model

JJM-5SQ/JJM-5SC

Engine

HODNA GX390/186F Diesel Engine

Power

13HP,3600rpm/6.3KW,3600rpm

Suitable Wire Rope(mm)

15

Bottom diameter of Groove(mm)

240

No. Of Groove

6

Gear

Forward

Reverse

Slow I

Slow II

Fast I

Fast II

Slow

Fast

Pull Force(KN)

50

30

13

10

No lifting

No lifting

Speed(m/min)

6

10

23

30

5

17

Weight(KG)

280/300

Dimension(mm)

1330×800×600

13HP Double Drum Electric Cable Pulling Winch Dual - Bull Wheel Powered Winch

Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
Our Services

1. On behalf of the consumer installation, commissioning products;

2. According to consumer requirements, technical guidance on the use of other aspects;

3. To ensure the supply of maintenance spare parts;

4. Responsible for the maintenance services, and provide regular maintenance, periodic maintenance;

5. To provide consumers with regular telephone interviews;

6. The handling of consumer complaints letters and visits and telephone advice, answer consumer advice.

While a variety of ways to collect consumer opinions on the quality of products, and timely improvements under the circumstances.

Factory sales directly, we are dedicated to provide you with high quality products, excellent service and competitive price.
We sincerely hope to establish a long-term relations cooperation with you.
Your success is our success.
