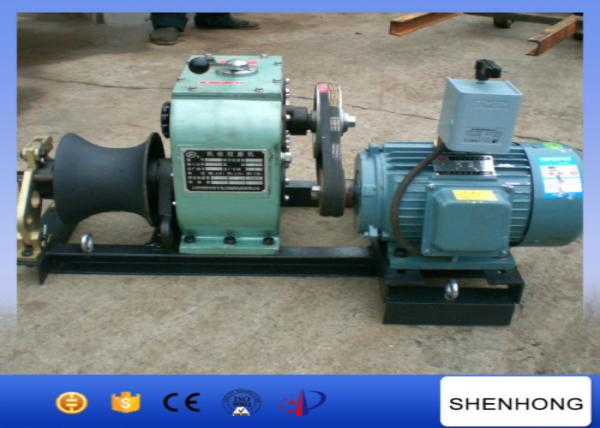

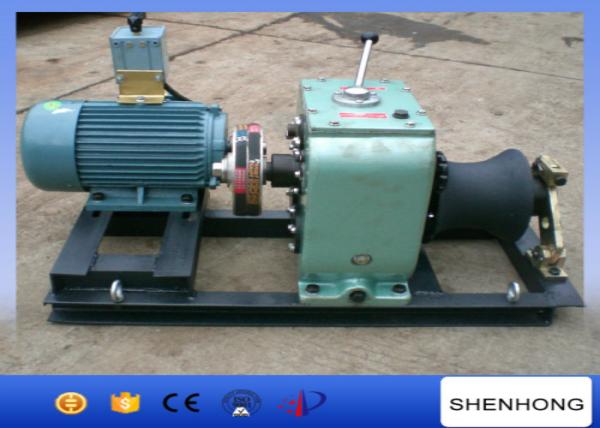

3 Ton Electric Cable Pulling Winch For Underground Cable Installation Project
3 Ton Electric Cable Pulling Winch For Underground Cable Installation Project
3 Ton Electric Cable Pulling Winch For Underground Cable Installation Project
3 Ton Electric Cable Pulling Winch For Underground Cable Installation Project
Specifications
Brand Name :
SHENHONG
Model Number :
JJM3-D
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
2 sets
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 set/sets per month
Delivery Time :
7 days after payment
Packaging Details :
Standard export wooden case
Type :
Electric Winch
Rated load :
3KW
Weight :
110kg
Motor :
Electric 220V/380v
Load Capacity :
3T
Application :
Cable Pulling
Description

3 Ton Electric Cable Pulling Winch For Underground Cable Installation Project​

Application

Extensively applied to an under construction set of electric power, post and tele wire ways to tower group sets up

the pole.Apply to use in the wild non-transformer station, it will be convenient and agility.

Features

1. Small size & compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

2. Light weight. For example, the weight of 5 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 160 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.

3. High efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.

4. Safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.

5. Widely used. According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.

Technical Data

Model NO. Engine Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJM3D Electric motor Slow 3.5 3 110
Fast 7 1.8
Reverse 3.5 NO Lifting

3 Ton Electric Cable Pulling Winch For Underground Cable Installation Project
