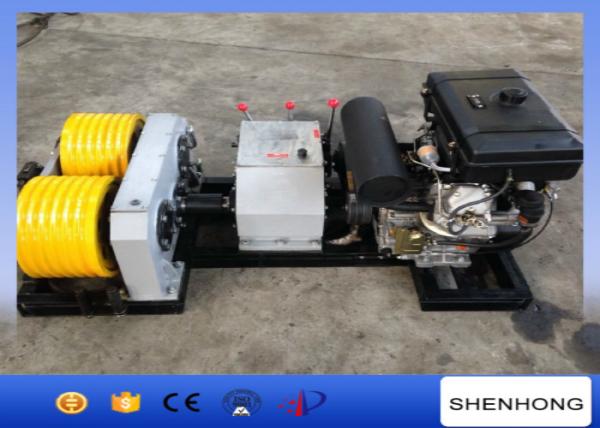

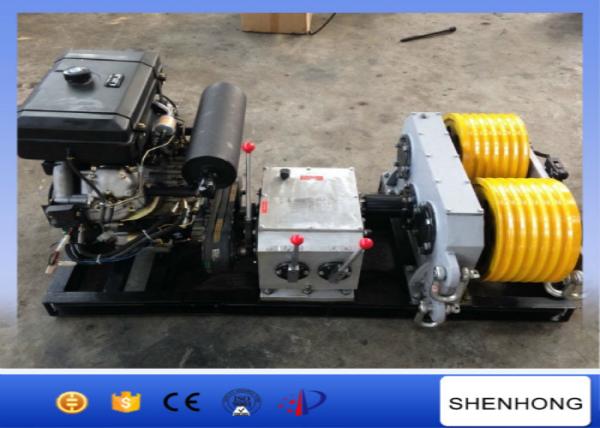

40KN Rated Load Diesel Cable Winch Puller 6 Grooves 240 mm Bottom Diameter
40KN Rated Load Diesel Cable Winch Puller 6 Grooves 240 mm Bottom Diameter
40KN Rated Load Diesel Cable Winch Puller 6 Grooves 240 mm Bottom Diameter
40KN Rated Load Diesel Cable Winch Puller 6 Grooves 240 mm Bottom Diameter
Specifications
Brand Name :
SHENHONG
Model Number :
SQY-5
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 set/sets per month
Delivery Time :
7 days after payment
Packaging Details :
Standard export wooden case
Type :
R2V870X Diesel Engine
Rated load :
40KN
Weight :
428kg
Application :
Transmission line erection
Dimension :
1520*880*770mm
Suitable Steel Wire Rope :
≥16mm
Description

40KN Rated Load Diesel Cable Winch Puller 6 Grooves 240 mm Bottom Diameter​

Characteristics

1, It is a new multipurpose cableway traction device: It can be used for not only reciprocating cableway systems but also circulating ropeway systems.

2, It comes with a power source, using a highly efficient diesel or gasoline engine, the power output by belt to the traction machine for non-power applications.

3, It has a manually operated clutch power input device, you can start or stop the cableway tractor anytime.

4, The gearbox is made up of a multi-stage gear .It can easily operate the shift, for a variety of speed adjustment purposes.

5, It is made up of : 1.Engine power 2.Gearbox 3.Reduction Gearbox 4.Double Traction Wheels 5.Steel Frame Total main five parts, each part are suitable for manual handling, easy through a variety of complex terrain.

6, It has a special sub-body positioning device to facilitate rapid assembly of the tractor in place after removal of the split.

7, It has two heavy automatic braking device: ① axial plane with the power input pressure brake device clutch linkage, axial plane ratchet brakes ② transmission output of this means braking force, which can effectively prevent the separation of power or traction tramway stop, double traction wheels reversed, to ensure safety.

8. The cableway traction in double traction sheave up gates plus a manual brake mechanism, the braking force can be applied directly to the traction wheels, the traction machine and tramway systems in loading and unloading cargo or longer downtime for the system plus power, to ensure reliable and secure cableway system works.

Technical Data

Model No. SQY-5
Engine R2V870X Diesel Engine
Input Power 14KW
Input Speed 3600rpm
Rated Output 40KN
Suitable Steel Wire Rope ≥16mm
Drum Bottom Diameter 325mm
Gear Forward Reverse
Ⅰ Ⅱ Ⅲ Ⅰ Ⅱ Ⅲ
Pulling Force(KN) 40 20 10 No Lifting
Pulling Speed(m/min) 16 32 60 16 32 60
Weight 428KG
Size 1520*880*770mm

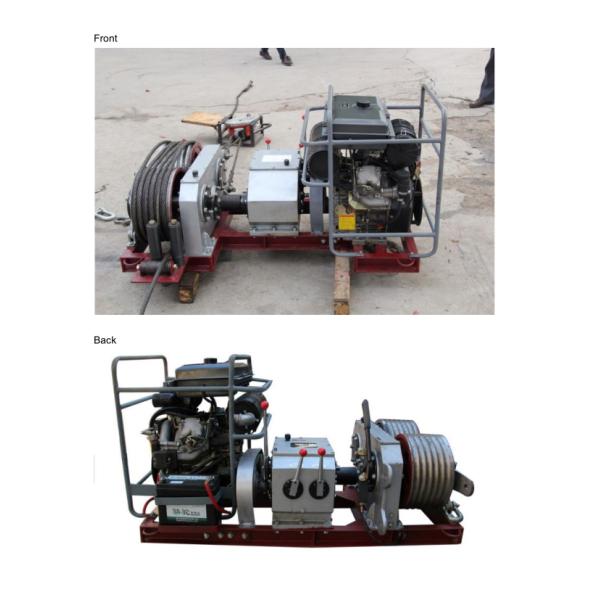

40KN Rated Load Diesel Cable Winch Puller 6 Grooves 240 mm Bottom Diameter

Our Services

We have professional technical team to meet your new items developing.

We will be your eyes while producing, which means we will send producing picture for every steps.

We have professional technical team to meet your new items developing.

We will be your eyes while producing, which means we will send producing picture for every steps.

Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
