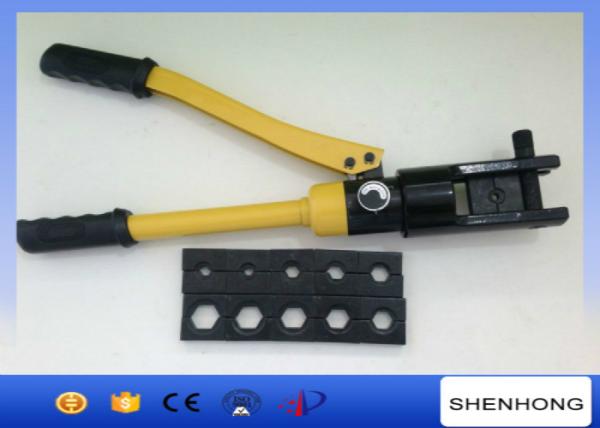

YQK-300 Hand Operated Hydraulic Cable Lug Crimping Tool With 16 Ton Force
YQK-300 Hand Operated Hydraulic Cable Lug Crimping Tool With 16 Ton Force
YQK-300 Hand Operated Hydraulic Cable Lug Crimping Tool With 16 Ton Force
YQK-300 Hand Operated Hydraulic Cable Lug Crimping Tool With 16 Ton Force
Specifications
Brand Name :
SHENHONG
Model Number :
YQK-300
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
2pcs
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
7days after payment
Packaging Details :
plastic box
Application :
Electric Construction
Crimping type :
Hexagon
Crimping range :
16-300mm2
Crimping force :
16ton
Stroke :
22mm
Weight(kg) :
6.3
Description

YQK-300 Hand Operated Hydraulic Cable Lug Crimping Tool With 16 Ton Force

Features:

1. The compression pliers are designed for hydraulic crimping on power cable and wire. The crimped conductor is tested in high conductivity and close contact so that it's uneasy to break out and turn hot .

2. Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed. The operation finishes with energy saving and time shorten.

3. Standard die assembling 16,25,35,50,70,95,120,150,185,240,300mm2

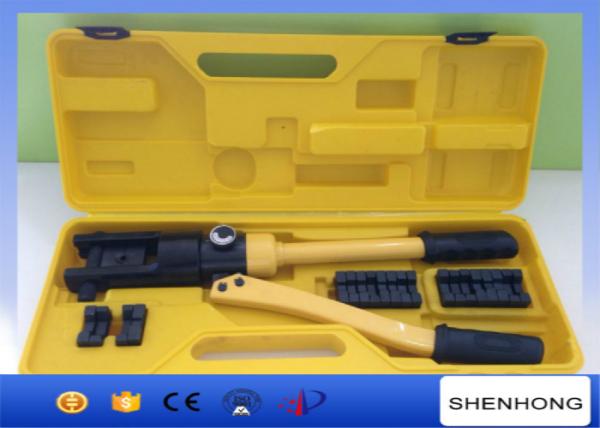

4.Packing case is made form robust integarl plastic box.

Data Sheet

Crimping range 16-300mm2
Crimping force 12T
Crimping type hexagon crimping
Stroke 22mm
Weight 5.5kg
Package plastic box
Accessories 16,25,35,50,70,95,120,150,185,240,300mm2

Different Types

Item No Crimping range Crimping force Crimping type Stroke Weight Package Crimping dies
YQK-70 4-70mm2 8 ton Hexagon 10mm 2.8kg Plastic case 4,6,8,10,16,25,35,50,70mm2
YQK-120 10-120mm2 12 tom Hexagon 14mm 4.00kg Plastic case 10,16,25,35,50,70,95,120mm2
YQK-240 16-240mm2 16 ton Hexagon 22mm 5.20kg Plastic case 16,25,35,50,70,95,120,150,185,240mm2
YQK-300 16-300mm2 16 ton Hexagon 22mm 6.30kg Plastic case 16,25,35,50,70,95,120,150,185,240,300mm2
