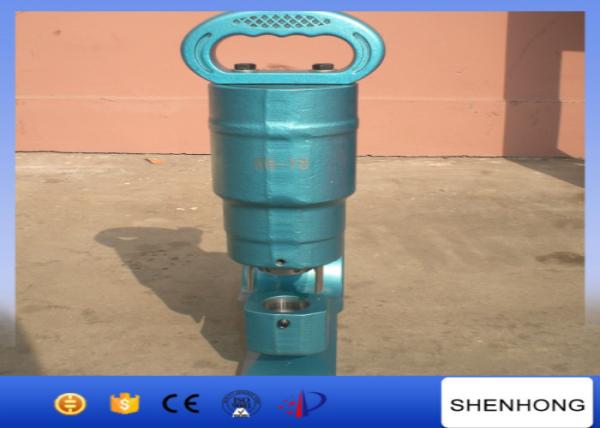

CH-70 Hydraulic Puncher With 35T Force Max Punching 10mm Steel
CH-70 Hydraulic Puncher With 35T Force Max Punching 10mm Steel
CH-70 Hydraulic Puncher With 35T Force Max Punching 10mm Steel
CH-70 Hydraulic Puncher With 35T Force Max Punching 10mm Steel
Specifications
Brand Name :
SHENGHONG
Model Number :
CH-70
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000sets/month
Delivery Time :
10 days after payment
Packaging Details :
wood case
Product :
hydraulic puncher
Punching force :
35T
Max thickness of sheet :
12mm of copper sheet/ 10 mm of metal sheet
Depth of throat :
110mm
Size :
330*200*390mm
Accessories :
3/8"(Φ10.5), 1/2"(Φ13.8), 5/8"(Φ17), 3/4"(Φ20.5)mm
Description

CH-70 Hydraulic Puncher With 35T Force Max Punching 10mm Steel

1. CH60,CH-70 split-unit hydraulic hole digger is specilized for cornor steel,flat steel,brass plate and other metal material hole digging,especially for electrally and construction field etc.

2. match pump CFP-800-1,CP-700 and electric pump

Max thickness of sheet:10mm

Punching force:30T

Depth of throat:100mm

Height approx.35mm

Weight approx.:23kg

3. Pump operated, hydraulic hole punch driver tool, hole digger, hole punching machine.
CH-60 hydraulic hole puncher machine, hydraulic hole punch tool.

Pump operated, hydraulic punch driver tool, hole digger, hole punching machine.

Our factory standard settings: 3/8"(10.5mm),1/2"(13.8mm),5/8"(17mm),3/4"(20.5mm).

Other sizes are accept accordly.

4. CH-60 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

Features

1 Hydraulic hole puncher is designed for punching holes on Cu/AI bus bar

2 Punching the different kind metal sheet up to 10mm.

3 This type of hydraulic hole puncher can match up hand pump CP-700/ CFP-800-1 or electric pump.

Technical Reference:

model output aperture confirgured dies max.thickness depth of throat weight packing size
CH-60 30T 3/8"-3/4" 11.1, 14.3, 17.5,20.6mm iron steel-8mm; copper busbar-10mm 95mm 21kg 26*16*39
CH-70 35T 3/8"-3/4" 11.1, 14.3, 17.5,20.6mm iron steel010mm; copper busbar-12mm 110mm 37kg 33*20*39
