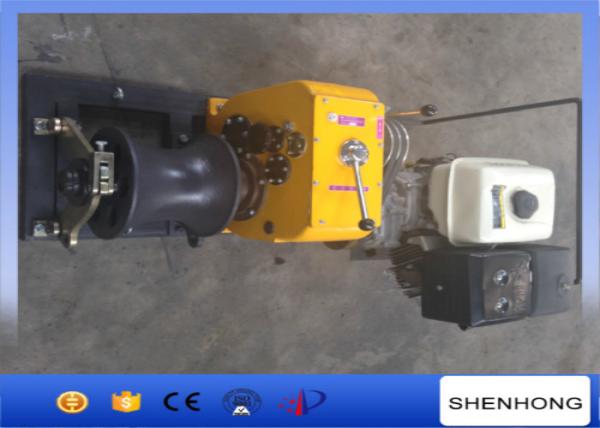

Honda Gasoline Powered Winch 5T , Tower Erection Cable Pulling Winch
Honda Gasoline Powered Winch 5T , Tower Erection Cable Pulling Winch
Honda Gasoline Powered Winch 5T , Tower Erection Cable Pulling Winch
Honda Gasoline Powered Winch 5T , Tower Erection Cable Pulling Winch
Specifications
Brand Name :
SHENGHONG
Model Number :
JJM5Q
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/week
Delivery Time :
10 days after deposit
Packaging Details :
plywood case
Product Name :
5 Ton Gasoline Wire Rope Winch for Cable Pulling During Tower Erection
Engine :
Honda gasoline engine
Power :
13HP
Load Capacity :
5T
Application :
cable pulling
Weight :
160kg
Description

Honda Gasoline Powered Winch 5T , Tower Erection Cable Pulling Winch​

Introduction

A winch is a mechanical device that is used to pull in (wind up) or let out (wind out) or otherwise adjust the "tension" of a rope or wire rope (also called "cable" or "wire cable"). In its simplest form it consists of a spool and attached hand crank. In larger forms, winches stand at the heart of machines as diverse as tow trucks, steam shovels and elevators. The spool can also be called the winch drum. More elaborate designs have gear assemblies and can be powered by electric, hydraulic, pneumatic or internal combustion drives. Some may include a solenoid brake and/or a mechanical brake or ratchet and pawl device that prevents it from unwinding unless the pawl is retracted.

Quick Detail

1. Gas engine powered winch

2. Max Pulling Force:50KN

3. Weight:160kg

4. Dimension:1200x600x700mm

Application

It is used for tower erection and sagging operation in line construction. It can also be used for pulling conductor or underground cable

Features

Light weight, easy to operate and maintain. There is mechanical brake system composed in the Gear Box. The brake can hold the steel wire rope when there is emergency.

Technical Data

Model Type Gear Pulling Force(KN) Pulling Speed(m/min) Power Weight(KG)
JJM5Q Slow 50 5 HONDA GASOLINE GX390 13HP 180
Fast 30 11
Reverse - 3.2

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Package

Honda Gasoline Powered Winch 5T , Tower Erection Cable Pulling Winch

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
