High Strength Cable Pulling Tools 5 Ton Swivel Electrical Cable Connectors to Release Wire Rope Twisting
High Strength Cable Pulling Tools 5 Ton Swivel Electrical Cable Connectors to Release Wire Rope Twisting
High Strength Cable Pulling Tools 5 Ton Swivel Electrical Cable Connectors to Release Wire Rope Twisting
High Strength Cable Pulling Tools 5 Ton Swivel Electrical Cable Connectors to Release Wire Rope Twisting
Specifications
Brand Name :
SHENGHONG
Model Number :
SLX-5
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
5pcs
Price :
USD10-20
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
10 days after payment
Packaging Details :
carton
Supply Ability :
50pc/day
Product Name :
High Strength 5 Ton Swivel Electric Cable Connector to Release Wire Rope Twisting
Type :
Swivel Electric Cable Connector
Application :
Line transmission
Rated load :
30KN
Weight :
0.65kg
Selling point :
High Strength
Material :
Alloy Steel
Usage :
Release Wire Rope Twisting
Description

High Strength Cable Pulling Tools 5 Ton Swivel Electrical Cable Connectors to Release Wire Rope Twisting​

Quick Information

1. Model SLX-3

2. Rated Load:3T

3. Weight:0.65kg

Product Description

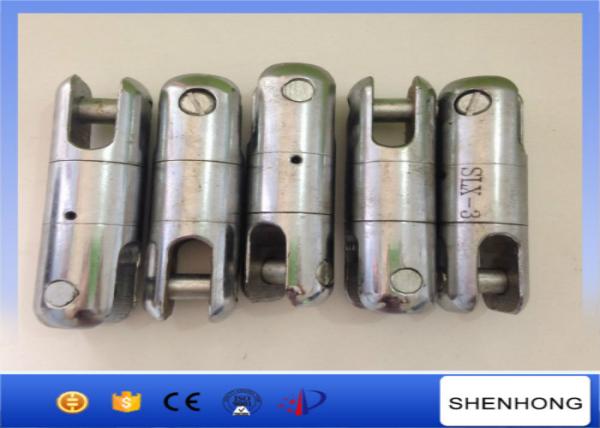

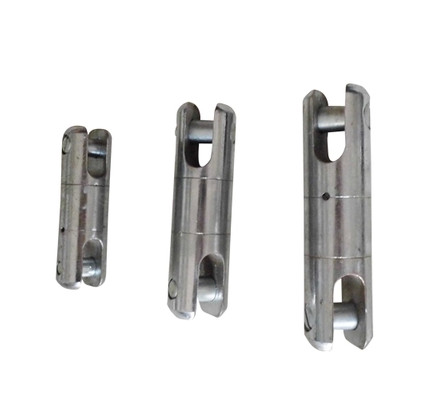

The swivel joints are suitable to connect the pulling rope to the mesh sock joint mounted on the conductor, they are mounted on thrust bearings and they are designed to avoid torsion stain accumulation. They are made of highly tensile galvanized steel, the special design can bear the high radial loads, which occur during the passage over the pulleys.

In the process of transmission line, the Rotating Wire Connector is used to connect the steel wire and net sleeve connector when tow the wire or underground cable , in order to release the twisting of steel wire rope.

Application

In transmission line, traction of wire or underground cables, the Steel Cable high strength Swivel connector is used to connect with the net sleeve and wire rope, in order to release wire rope twisting.

It adopts alloy tool steel.

Features

It is high strength, light weight,

and it can smoothly go through the machine traction pulley and the tension machine.

Technical Data

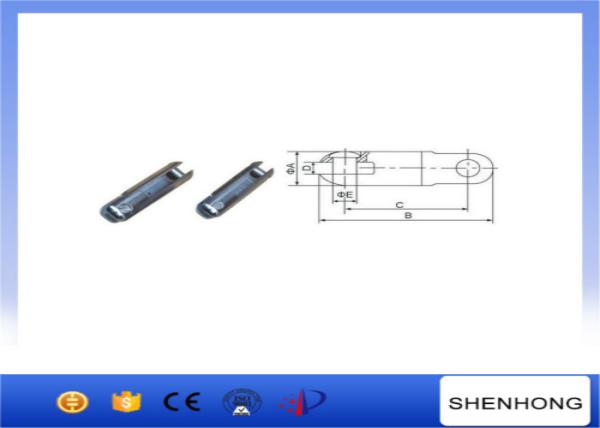

Product No. Model Type Rated Load(KN) Outter Diameter(mm) Groove Width(mm) Weight(kg)
80203 SLX-1 10 Φ22 12.5 0.4
80204 SLX-3 30 Φ30 14.5 0.65
80205 SLX-5 50 Φ42 17 1.5
80206 SLX-8 80 Φ55 22 2.75
80207 SLX-13 130 Φ60 24 3.5
80208 SLX-18 180 Φ72 30 4.2
80209 SLX-25 250 Φ85 36 5.5
