Steel Pilot Wire Pulling Rope , 18 Strands 6 Squares Braided Steel Wire Rope
Steel Pilot Wire Pulling Rope , 18 Strands 6 Squares Braided Steel Wire Rope
Steel Pilot Wire Pulling Rope , 18 Strands 6 Squares Braided Steel Wire Rope
Steel Pilot Wire Pulling Rope , 18 Strands 6 Squares Braided Steel Wire Rope
Specifications
Brand Name :
SHENHONG
Model Number :
YL18-12x19
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1000M
Price :
USD2-3/m
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000M per day
Delivery Time :
15 days after deposit
Packaging Details :
with spool
Product name :
Pulling Rope Anti Twisting Steel Wire Pilot Rope Braided Steel Wire Rope
Type :
Anti twist Wire Rope
Structure :
12 Strands 6 Squares/18 Strands 6 Squares
Standard Length (m) :
1000
Diameter :
10-30mm
Application :
Transmission Line Stringing
Description

Steel Pilot Wire Pulling Rope , 18 Strands 6 Squares Braided Steel Wire Rope​

Application:

It is specially braided from galvanized steel wire and widely used as pilot rope in overhead power transmission line stringing operation.

Feature:

The antitwisting rope is availabe with several diameters that depends on the type of the machine such as there are diameters of 9,11,13,15, 16,18,20,........28,30mm and these ropes have many advantages:

1. high flexibility.

2. complete stability to rotation.

3. homogeneous distribution of pressure between the elementary wires.

4. increased efficiency during stringing operations.

5. strands with individual galvanized elementary wires.

Technical Data:

Item no. Normal Diameter (mm) Structure Ref. Weight (kg/m) Breakage tension(kN)
Rope structure
1x19 1x19W T25 T29
YL9-12x19 10 6 Squares 12 Strands 0.297 50 55
YL11-12x19 11 6 Squares 12 Strands 0.480 70.5 80
YL13-12x19 13 6 Squares 12 Strands 0.630 105 120
YL15-12x19 15 6 Squares 12 Strands 0.925 140 158
YL18-12x19 18 6 Squares 12 Strands 1.150 185 200
YL20-12x19 20 6 Squares 12 Strands 1.320 250
YL22-12XT25 22 6 Squares 12 Strands 1.822 320
YL24-12xT25 24 6 Squares 12 Strands 2.034 360
YL28-12xT29 28 6 Squares 12 Strands 2.882 480
YL30-12xT29 30 6 Squares 12 Strands 3.120 540
YL20-18x19 20 6 Squares 18 Strands 1.598 280 300
YL22-18XT25 22 6 Squares 18 Strands 1.898 389
YL24-18xT25 24 6 Squares 18 Strands 2.162 440
YL28-18xT29 28 6 Squares 18 Strands 3.012 580
YL30-18xT29 30 6 Squares 18 Strands 3.616 658

Item no. Normal Diameter (mm) Structure Standard Length (m)

Diameter of spool

(mm)

Empty spool weight

(kgs)
YL9-12x19 10 6 Squares 12 Strands 1000
YL11-12x19 11 6 Squares 12 Strands 1000 1100x560 50
YL13-12x19 13 6 Squares 12 Strands 1000 1100x560 52
YL15-12x19 15 6 Squares 12 Strands 1000 1250x560 60
YL18-12x19 18 6 Squares 12 Strands 1000 1400 74
YL20-12x19 20 6 Squares 12 Strands 1000 1400 74
YL22-12XT25 22 6 Squares 12 Strands 800 1400 74
YL24-12xT25 24 6 Squares 12 Strands 800
YL28-12xT29 28 6 Squares 12 Strands 500
YL30-12xT29 30 6 Squares 12 Strands 500
YL20-18x19 20 6 Squares 18 Strands 1000
YL22-18XT25 22 6 Squares 18 Strands 500
YL24-18xT25 24 6 Squares 18 Strands 500
YL28-18xT29 28 6 Squares 18 Strands 500
YL30-18xT29 30 6 Squares 18 Strands 500

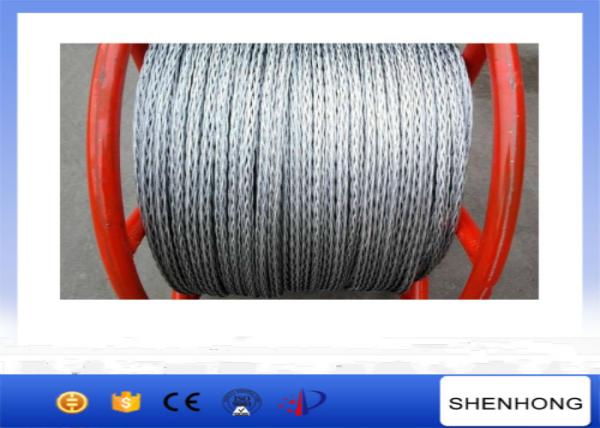

Detailed Picture

Steel Pilot Wire Pulling Rope , 18 Strands 6 Squares Braided Steel Wire Rope

Weaving

Steel Pilot Wire Pulling Rope , 18 Strands 6 Squares Braided Steel Wire Rope

Shipment

1. The anti twisting steel wire rope will be shipped in container.

2. We will ship the products within one month normally after reveiving the payment.

3.Stock is available for standard prodcuct.

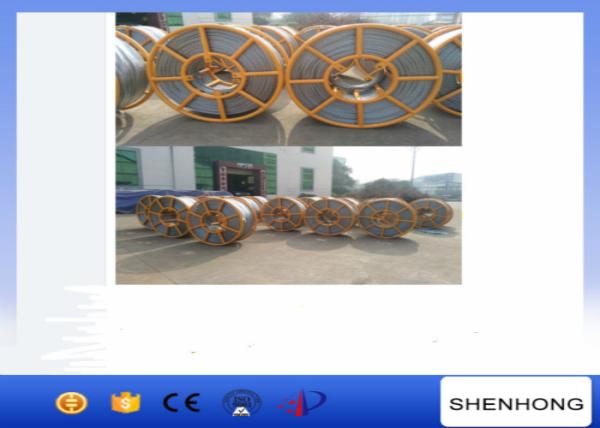

Package

1. The anti twisting steel wire rope will be packed in steel drum.

2. The steel drum can be installed in the reel winder of puller directly

3. Customer can al;so order special size of steel drum.
