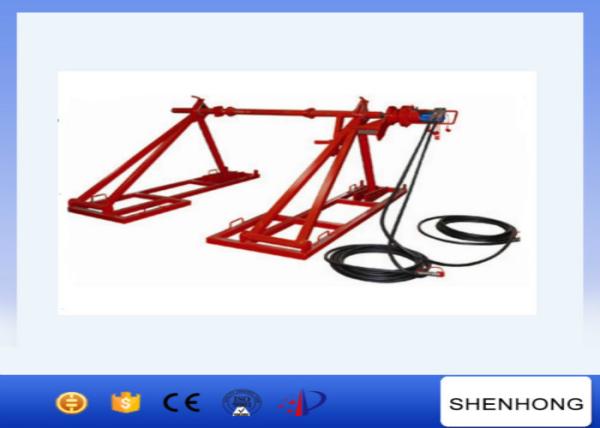

3300N.m Brake Force Cable Jack Stands SIYZ10 10 Ton Drum Type Elevator With Hydraulic Motor
3300N.m Brake Force Cable Jack Stands SIYZ10 10 Ton Drum Type Elevator With Hydraulic Motor
Specifications
Brand Name :
SHENGHONG
Model Number :
SIYZ10
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1 pair
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
15 days after deposit
Packaging Details :
export standard package
Product Name :
10 Ton Hydraulic Drum Elevators
Rated Load :
10T
Type :
Cable Drum jacks
Application :
Supporting Cable Reel When Laying Guiding Cable
Brake force (N.m) :
3300
Rotation speed (rpm) :
45
Description

3300N.m Brake Force Cable Jack Stands SIYZ10 10 Ton Drum Type Elevator With Hydraulic Motor​

Introduction

Hydraulic reel elevators are used for supporting and controlling the conductor reels(drums)during the transmission line stringing operation.The drum elevators are made of welded steel with a protective coating:the frame is completely detachable to reduce the dimensions during the transport.The hydraulic motor is imported from Ameria to control the conductor drum when unwinding the conductor.

Quick Infomation

1. Max torque force(N.m):3300

2. Max Rotation Speed(RPM):45

3. Axial diameter(mm):94mm

4. Weight(kg):600

5. Length of hydraulic hose(m):15

6. Parallel hole distance(mm):300-500

10 Ton Hydraulic reel stand with Motor

Item No. Model Accommodated Reel Brake force (N.M) Rotation speed (rpm) Weight (kg)
Diameter (mm) Width (mm) Bore (mm) Max. Weight
15155 SIYZ10 ≤Φ2000-3000 ≤1700 Φ80-125 10 Ton 3300 45 400

Application

It is used to raise and support reels in conductor or earth wire stringing operations. The reel could be controlled by hydraulic motor in both rotation directions. The hydraulic reel stand could be driven by hydraulic tensioner or hydraulic puller tensioner, through 13 meter long hydraulic pipe.

Features: It could be dismantled into 5 pieces, easy for transportation.

3300N.m Brake Force Cable Jack Stands SIYZ10 10 Ton Drum Type Elevator With Hydraulic Motor

Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
