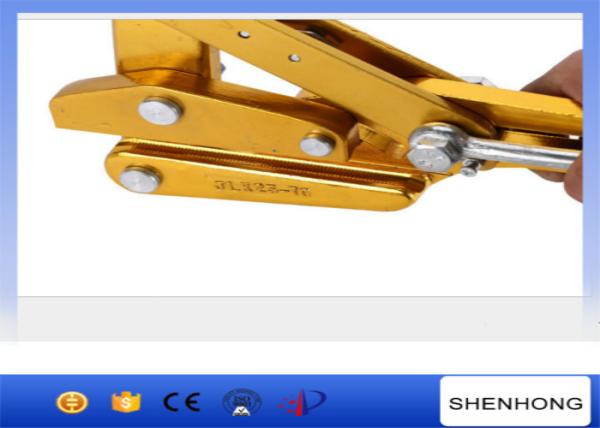

18MM Max Open Cable Pulling Clamps Cable Grips Wire Rope For Sag Adjusting / Tensioning
18MM Max Open Cable Pulling Clamps Cable Grips Wire Rope For Sag Adjusting / Tensioning
18MM Max Open Cable Pulling Clamps Cable Grips Wire Rope For Sag Adjusting / Tensioning
18MM Max Open Cable Pulling Clamps Cable Grips Wire Rope For Sag Adjusting / Tensioning
Specifications
Brand Name :
SHENHONG
Model Number :
SKL-15
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
7 days after payment
Packaging Details :
carton
Rated load(KN) :
15
Weight(kg) :
1.4
Material :
Aluminum Alloy
Max Open :
18mm
Applicable conductor :
95-120mm2
Application :
sag adjusting and tensioning
Description

18MM Max Open Cable Pulling Clamps Cable Grips Wire Rope For Sag Adjusting / Tensioning​


Quick Information
Model:SKL-15
Rated Load:15KN
Applicable Conductor:95-120mm2
Weight:1.4kg

Feature

1. HIT TOOL wire and cable grips are the lightest and most versatile grips available.
2. All wire rope grips feature a safety latch to prevent cable from unintentionally exiting the gripping jaws.
3. Convenient sized and special shaped pulling eyes to suit all brands of wire and strap hoists.
4. All gripping jaws are produced with new technology to increase jaw life.
5. Grips are designed to be used over a wider range of cable diameters.

Specification
Item No.
Model No.
Rated Load
(KN)
Applicable Conductor
(ACSR-MM2)
Max Open
(MM)
Unit Weight
(KG)
0101
SKL-7
7
25~70
14
1.0
0102
SKL-15
15
95~120
18
1.4
0103
SKL-25
25
150~240
24
3.0
0104
SKL-40
40
300~400
32
4.0
0105
SKL-50
50
500~630
36
6.6


Uses: Apply to sag adjusting and tensioning on overhead line construction.
Features: The clamp is forged of high strength aluminum alloy with small and light unit weight.

18MM Max Open Cable Pulling Clamps Cable Grips Wire Rope For Sag Adjusting / Tensioning

Directions for use, maintenance and care for all kinds of all grips:
Before each use: Check all parts for distortion or misalignment; proper maintenance and field
inspection is necessary.
Check grip to be sure of correct type and size for the application.
Profile of the jaws and its teeth have to be kept always clean, dry, free of oil and grease to avoid a slipping of the wire.Avoid abrupt loading.
Increase tensile force slowly to avoid slipping of the wire or even damage of the teeth.
Lubricate only the rivets, never the jaws. Check mechanical condition of entire grip

Warning: When using grip never exceed Working load Limit WLL !
