32MM Max Open Cable Pulling Clamp SKL-40 , HIT TOOL Wire Grip Clamp
32MM Max Open Cable Pulling Clamp SKL-40 , HIT TOOL Wire Grip Clamp
32MM Max Open Cable Pulling Clamp SKL-40 , HIT TOOL Wire Grip Clamp
32MM Max Open Cable Pulling Clamp SKL-40 , HIT TOOL Wire Grip Clamp
Specifications
Brand Name :
SHENHONG
Model Number :
SKL-40
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
7 days after payment
Packaging Details :
carton
Rated load(KN) :
40
Weight(kg) :
4.4
Application :
sag adjusting and tensioning on overhead line construction.
Material :
Aluminum Alloy
Max Open :
32mm
Conductor Diameter (mm) :
23-29
Description

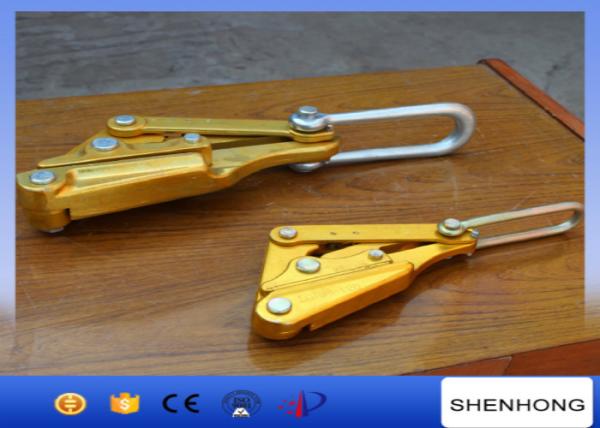

32MM Max Open Cable Pulling Clamp SKL-40 , HIT TOOL Wire Grip Clamp​

Application

Used to pull conductors in power and communication line construction field, and to maintain temporary tension until it can be permanently terminated.

It is specially used for adjustment of sagging of conductors, to hold the conductors temporarily during the stringing operation.

Feature

1. HIT TOOL wire and cable grips are the lightest and most versatile grips available.
2. All wire rope grips feature a safety latch to prevent cable from unintentionally exiting the gripping jaws.
3. Convenient sized and special shaped pulling eyes to suit all brands of wire and strap hoists.
4. All gripping jaws are produced with new technology to increase jaw life.
5. Grips are designed to be used over a wider range of cable diameters.

Aluminum Alloy Automatic COME ALONG CLAMPS

Item No. Model Rated Load (KN) Conductor Diameter (mm) Max. Opening (mm) Weight (kg)
13221 SKL-7 7 ACSR7-12 14 1.0
13222 SKL-15 15 ACSR13-16 18 1.4
13223 SKL-25 25 ACSR17-23 24 3.0
13224 SKL-40 40 ACSR23-29 32 4.4
13225 SKL-50 50 ACSR30-35 36 6.6
13227 SKL-60 70 ACSR36-38 40 9.2

Shipment

1. The wire grips will be shipped in plywood case by air or by ship.

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Package

1. The wire grips will be packed in plywood case.

2. It also can be packed in wood case or steel frame case.

32MM Max Open Cable Pulling Clamp SKL-40 , HIT TOOL Wire Grip Clamp
