ACSR Conductor Cable Pulling Clamp , Automatic Aluminum Wire Pulling Grips
ACSR Conductor Cable Pulling Clamp , Automatic Aluminum Wire Pulling Grips
ACSR Conductor Cable Pulling Clamp , Automatic Aluminum Wire Pulling Grips
ACSR Conductor Cable Pulling Clamp , Automatic Aluminum Wire Pulling Grips
Specifications
Brand Name :
SHENHONG
Model Number :
SKL
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
7 days after payment
Packaging Details :
carton
Rated load(KN) :
7-80
Weight(kg) :
1.0-18
Product Name :
Transmission Line Automatic Aluminum Wire Grips for ACSR Conductor
Application :
sag adjusting and tensioning on overhead line construction.
Material :
Aluminum Alloy
Warranty :
1 year
Description

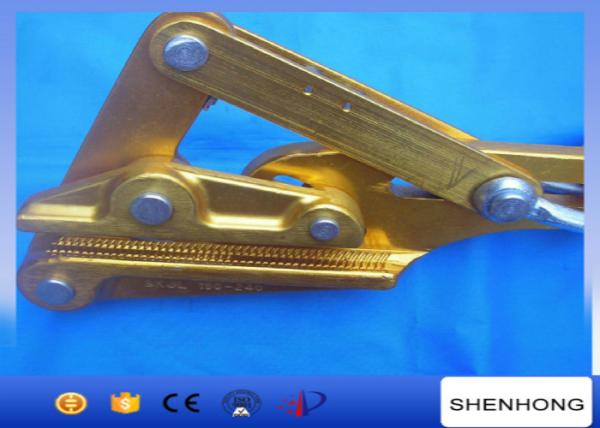

ACSR Conductor Cable Pulling Clamp , Automatic Aluminum Wire Pulling Grips ​

Application

The come along clamp is specially used for adjustment of sagging of conductors, to hold the conductors temporarily during the stringing operation.

It is specially used for adjustment of sagging of conductors, to hold the conductors temporarily during the stringing operation. The whole body and jaw is made of High strength Aluminum Alloy, light weight and good for protecting the surface of conductors.

AUTOMATIC CONDUCTOR WIRE GRIPS

Item No. Model Working Load (KN) Conductor Range Max. Opening (mm) Weight (kg)
13221 SKL-7 7 Φ7-12 mm 14 1.0
13222 SKL-15 15 Φ13-16 mm 18 1.4
13223 SKL-25 25 Φ17-22 mm 24 3.0
13224 SKL-40 40 Φ23-29 mm 32 4.0
13225 SKL-50A 50 Φ29-32 mm 34 6.60
13226 SKL-50B 50 Φ32-35 mm 36 6.60
13227 SKL-60 60 Φ35-37 mm 38 9.20

Shipment

1. The wire grips will be shipped in plywood case by air or by ship.

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Package

1. The wire grips will be packed in plywood case.

2. It also can be packed in wood case or steel frame case.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
