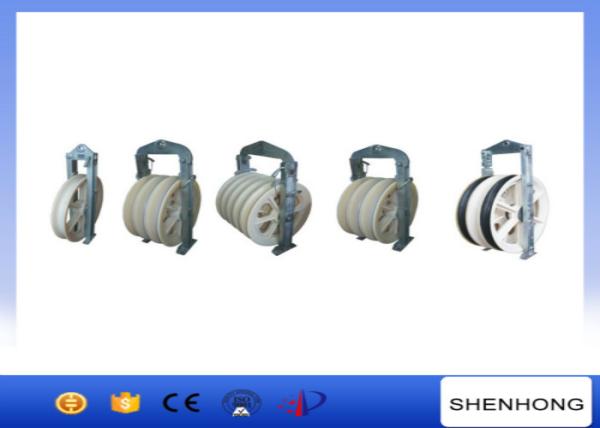

30KN Load Capacity Large Diameter Rope Pulley For ACSR Conductors
30KN Load Capacity Large Diameter Rope Pulley For ACSR Conductors
30KN Load Capacity Large Diameter Rope Pulley For ACSR Conductors
30KN Load Capacity Large Diameter Rope Pulley For ACSR Conductors
Specifications
Brand Name :
SHENHONG
Model Number :
SHDN822
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
10pcs
Price :
negotiation
Supply Ability :
1000pcs per month
Delivery Time :
7 days after payment
Packaging Details :
carton
Material :
Nylon
No. of sheave :
1
Application :
Stringing Conductor
Wheel Diameter :
822mm
Type :
822MM Stringing Blocks for Single Conductor With 30KN Load Capacity
Wheel Width :
110mm
Description

30KN Load Capacity Large Diameter Rope Pulley For ACSR Conductors ​

Single sheave Stringing Block

Item No.ModelACSR Size Range (mm²)Working Load (KN)Weight (kg)Material of Sheave
10171SHD-120x3025-7052Aluminum Alloy
10172SHD-160x4070-95103.2
10173SHD-200x4095-120153.8
10174SHD-200x60120-150154.2
10175SHD-250x40120-150205.2
10176SHD-250x60150-180205.5
10177SHD-270x60180-240206.8
10178SHD-320x60240-3002010.5
10179SHD-400x80300-4002012
10101SHD508300-4002018Aluminum lined with neoprene
10121SHD660400-5002030
10191SHDN-120x3025-7051.5Nylon
10192SHDN-160x4070-95102.4
10193SHDN-200x4095-120152.6
10194SHDN-200x60120-150153.1
10195SHDN-250x40120-150203.7
10196SHDN-250x60150-180203.9
10197SHDN-270x60180-240204.4
10198SHDN-320x60240-300207.5
10199SHDN-400x80300-400208
10104SHDN508300-4002016Nylon, optional can be lined with neoprene
10124SHDN660400-5002024
10131SHDN750500-6003032
10141SHDN822600-7003038
10151SHDN916700-8005051
10165SHDN1040800-9005060

Application
The single conductor stringing block is suitable to string stranded aluminum and ACSR conductors,or OPGW cable on overhead transmission line.Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 508mm, 660mm aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.

Note
1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.
The data in the model means the outer diameter of sheave X width of sheave (mm).
2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

Shipment
1. The blocks will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.

Package
1. The blocks will be loaded in container.
2. It also can be packed in plywood case or steel frame case.

Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
