Overhead Lines Large Diameter Rope Pulley Two Bundled Stringing Blocks
Overhead Lines Large Diameter Rope Pulley Two Bundled Stringing Blocks
Overhead Lines Large Diameter Rope Pulley Two Bundled Stringing Blocks
Overhead Lines Large Diameter Rope Pulley Two Bundled Stringing Blocks
Specifications
Brand Name :
SHENHONG
Model Number :
-
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
10pcs
Price :
negotiation
Supply Ability :
1000pcs per month
Delivery Time :
7 days after payment
Packaging Details :
carton
Material :
Nylon
No. of sheave :
3
Application :
two bundled conductor stringing block
Type :
Overhead Lines Large Diameter Rope Pulley
Warranty :
1 year
Description

Overhead Lines Large Diameter Rope Pulley Two Bundled Stringing Blocks​

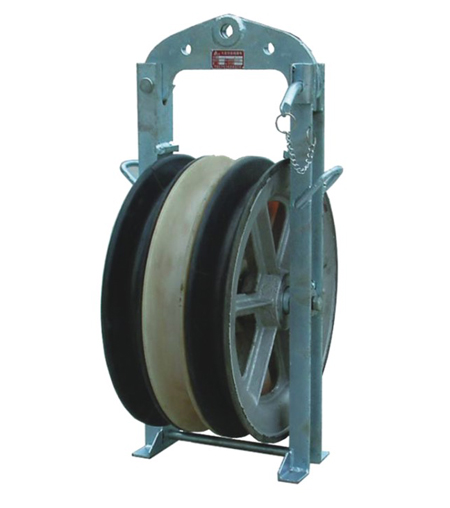

Three sheaves Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10102 SHS508 300-400 40 61 Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene
10105 SHSLN508 300-400 40 47
10122 SHS660 400-500 40 106
10125 SHSLN660 400-500 40 92
10107 SHSQN508 300-400 40 43 Nylon, optional can be lined with neoprene
10127 SHSQN660 400-500 40 76
10132 SHSQN750 500-600 60 98
10142 SHSQN822 600-700 60 110
10152 SHSQN916 700-800 75 126
10166 SHSQN1040 800-900 105 200

Application

It is suitable to string two or three stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 508mm, 660mm aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.

Note

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

Shipment

1. The blocks will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Package

1. The blocks will be loaded in container.

2. It also can be packed in plywood case or steel frame case.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.

Why choose us:

1. High quality and competitive price

2. Leading and biggest manufacture for stringing equipment and tools in China.

3. We have 25 years of production experience, and more than 1000 customers in the country and abroad market. The stringing blocks have been sold to more than 40 countries.

4. Big stock condition for fast shipment.

5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service
