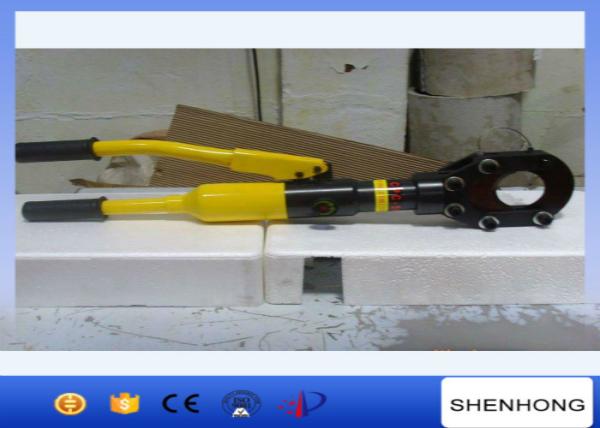

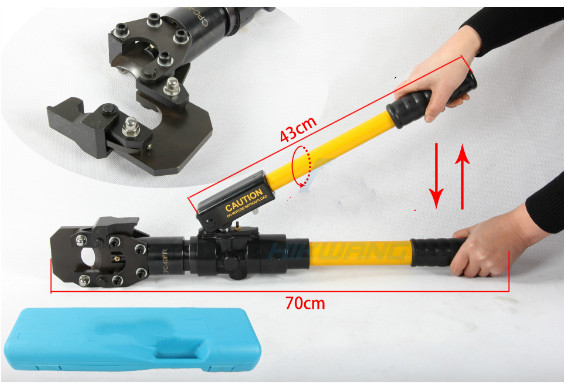

7T Hand Hydraulic Cutter / Hydraulic Cable Cutting Tools Max Cutting 40mm Diameter CPC-40FR
7T Hand Hydraulic Cutter / Hydraulic Cable Cutting Tools Max Cutting 40mm Diameter CPC-40FR
7T Hand Hydraulic Cutter / Hydraulic Cable Cutting Tools Max Cutting 40mm Diameter CPC-40FR
7T Hand Hydraulic Cutter / Hydraulic Cable Cutting Tools Max Cutting 40mm Diameter CPC-40FR
Specifications
Brand Name :
SHENHONG
Model Number :
CPC-40FR
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
2pcs
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
7 days after payment
Packaging Details :
cartons
Type :
hydraulic cable cutter
Length :
700mm
Weight(kg) :
9kg
Cutting Range :
cable Φ40mm
Output :
7T
Package :
Steel Case
Description

7T Hand Hydraulic Cutter / Hydraulic Cable Cutting Tools Max Cutting 40mm Diameter CPC-40FR​

Introduction

Hydraulic Cutting Tools CPC-40FR is a hand-operated tools. It's capable of cutting Cable / Wire Roipes / Wire Strands / Round Bar (Rebar soft Cu/Al/Steel Bar), Max. cutting capacity is 40mm diameter. With hydraulic power, latch type 180 degree rotatable cutting head, double speed unit, safety valve, fiberglass insulated handles, cutting become easy, flexbile, fast and safe. CPC-40FR can be widely used in electric transmission and distribution job.

Features

1. Hand-operated: with the help of hydraulic system, cutting can be easily completed by hand. No electric power or air power is required.

2. Latch type 180 degree rotatable head design: For easy cable inserting and flexible operation in narrow place

3. Fiberglass insulated handles: For safe operation. Protect operators from electric shock

4. Double Speed Unit: For fast cutting. Allow quick oil delivery under no load condition. Build sufficient working pressure under load condition

5. Safety valve: For safe cutting. Automatically relief pressure when rated pressure is reached.

6. Steel Case Package: Protect tools well

7. Cutting Blades can be purchade seperately

Main Parameter

Material Cutting Capacity
(mm)
Wire Ropes 6*7 hemp-core 20
6*12 hemp-core 25
6*19 hemp-core 25
Round Bar Soft Cu Bar 20
Soft Al Bar 22
Soft Steel Bar 13
Re-Bar 16
Wire Strands Bare Cu Strands 32
Bare Al Strands 32
ACSR 40
1*7 guy steel wire strands 20
1*19 20
Cables Under ground cable

40
